HT208D Digital Clamp Meter Multimeter AC/DC Voltage Current NCV Tester 6000 Counts for Frequency Conversion Power Supply

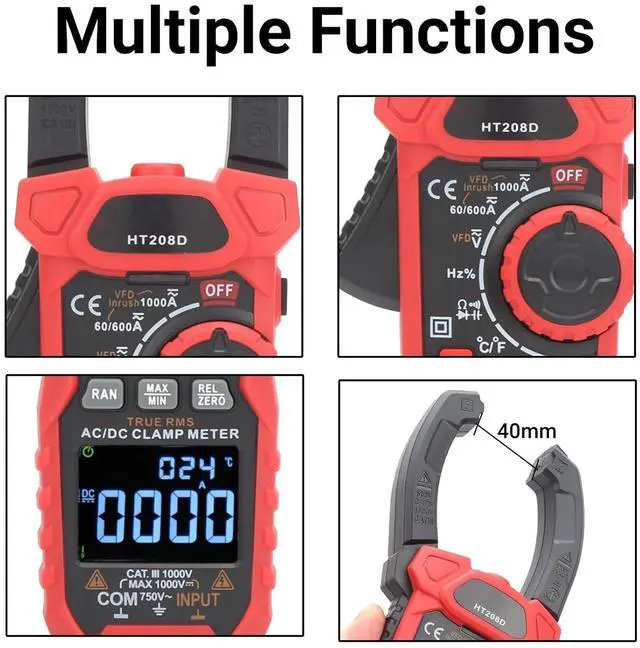

- Multi FunctionThe multimeter tester has the functions of measuring AC and DC current, AC and DC voltage, resistance, temperature, capacitance, and frequency.
- LCD ScreenMultipurpose clamp meter is made of ABS meterial, with large LCD screen, which can clearly display the measurement results.
- Easy to UseThe digital clamp tester has multiple functions to use, very simple and convenient, full range overload , data retention, undervoltage indication.
- FeatureThe current amp meter is compact design, easy to carry and store, has the characteristics of high reliability, high safety, automatic range, handheld clamp meter, etc.

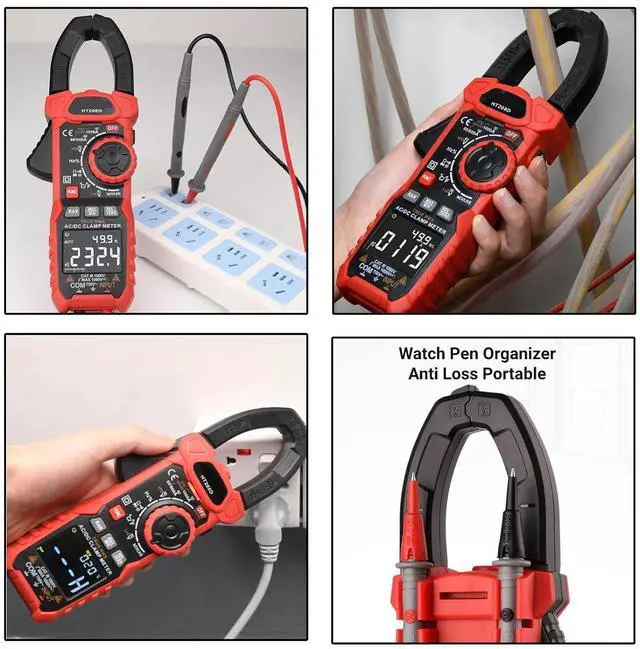

- ApplicationThe voltage tester is suitable for frequency conversion power supply, refrigeration equipment such as air conditioners and refrigerators and motor performance testing.
+
+
Overview
Specs
Reviews

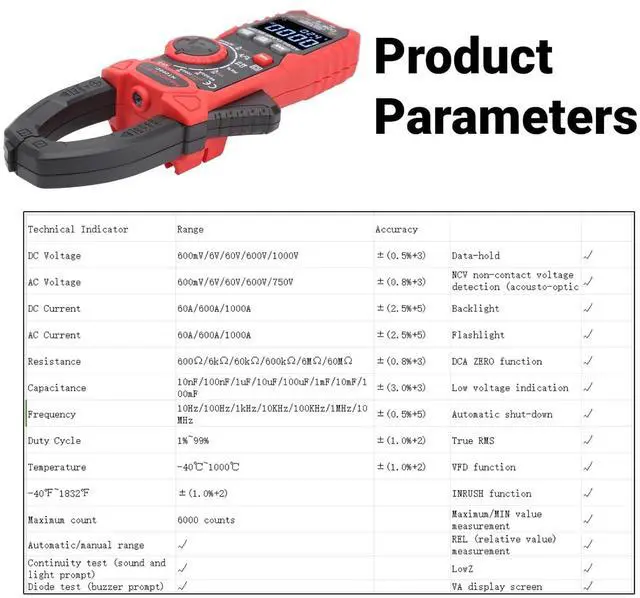

Specification:
Item Type: Clamp Meter
Material: ABS
1. Security:
IEC 61010-1, pollution degree 2
IEC 61010-2-032: CAT III 1000V / CAT IV 600V
IEC 61010-2-033: CAT III 1000V / CAT IV 600V
2. Altitude Work: <2000m
3. Working Environment Temperature and Humidity: 0-40°C (<80%RH, <10° non-condensing)
4. Storage Temperature And Humidity: -10-60 (relative humidity 70%, take out the battery)
5. Temperature Coefficient: 0.1x accuracy/ (<18 or >28)
6. The Maximum Voltage Between the Terminal and the Ground: AC750V or DC1000V
7. Display: 6000 counter reading automatically displays the unit symbol function according to the measured displacement
8. Out of range indication: "OL" is displayed.
9. Low battery indication: when the battery voltage is low
10. Exceed the normal working voltage, it will display "C"
11. Input polarity indication: automatically display ""
12. Maximum Size of Jaws: 40mm / 1.57in
13. Automatic Power Off: About 15 minutes
14. Power Supply: 1.5Vx3 AAA (not included)
How to Use:
After getting the product, first open the back cover, install the battery, adjust the range to be measured, the display will show, after selecting the parameters, you can use the measurement.

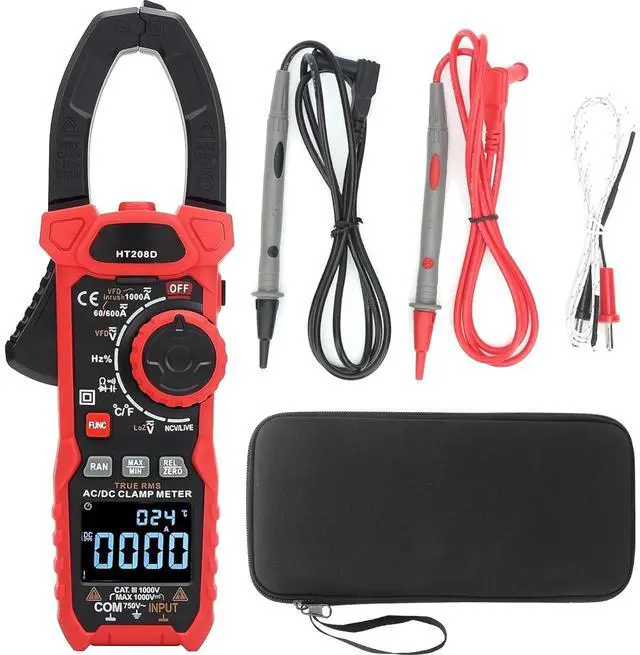

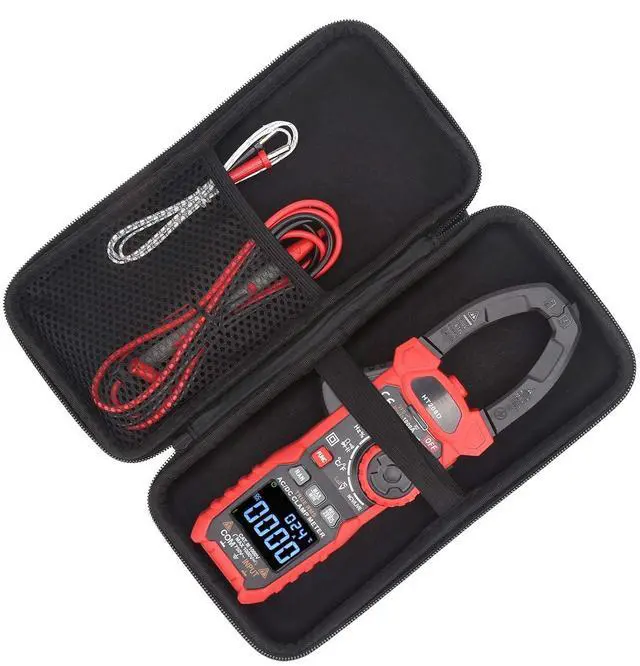

Package List:
1 x Clamp Meter(Battery Not Included)
2 x Test Leads
1 x Temperature Probe
1 x Bag
1 x Instruction Manual
Note:
1. Please allow 12in error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
Item Type: Clamp Meter
Material: ABS
1. Security:
IEC 61010-1, pollution degree 2
IEC 61010-2-032: CAT III 1000V / CAT IV 600V
IEC 61010-2-033: CAT III 1000V / CAT IV 600V
2. Altitude Work: <2000m
3. Working Environment Temperature and Humidity: 0-40°C (<80%RH, <10° non-condensing)
4. Storage Temperature And Humidity: -10-60 (relative humidity 70%, take out the battery)
5. Temperature Coefficient: 0.1x accuracy/ (<18 or >28)
6. The Maximum Voltage Between the Terminal and the Ground: AC750V or DC1000V
7. Display: 6000 counter reading automatically displays the unit symbol function according to the measured displacement
8. Out of range indication: "OL" is displayed.
9. Low battery indication: when the battery voltage is low
10. Exceed the normal working voltage, it will display "C"
11. Input polarity indication: automatically display ""
12. Maximum Size of Jaws: 40mm / 1.57in
13. Automatic Power Off: About 15 minutes
14. Power Supply: 1.5Vx3 AAA (not included)
How to Use:
After getting the product, first open the back cover, install the battery, adjust the range to be measured, the display will show, after selecting the parameters, you can use the measurement.
Package List:
1 x Clamp Meter(Battery Not Included)
2 x Test Leads
1 x Temperature Probe
1 x Bag
1 x Instruction Manual
Note:
1. Please allow 12in error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
