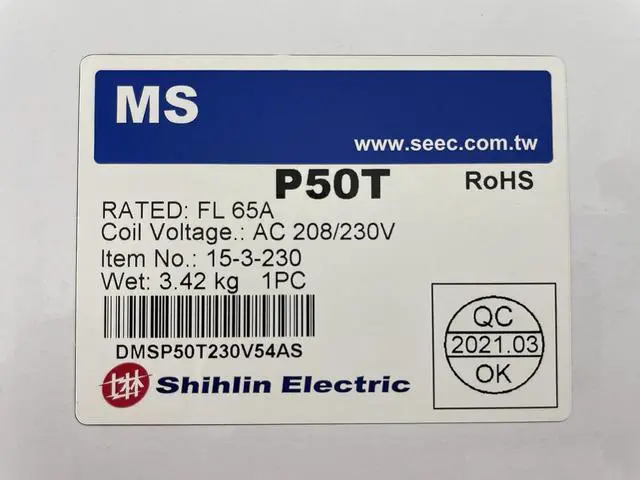

All Tool Depot Motor Starter Control 15 HP 3 Phase 208/230V 43-65AMP S-P50T 15HP Khaki
- Starter Rating: 15 HP, 208-230 Volt, 3 Phase
- Amp Rating: 43-65 Amps / Adjustable
- Steel housing with punch out holes for incoming and outgoing wires.
- 4 Rubber Grommets Included

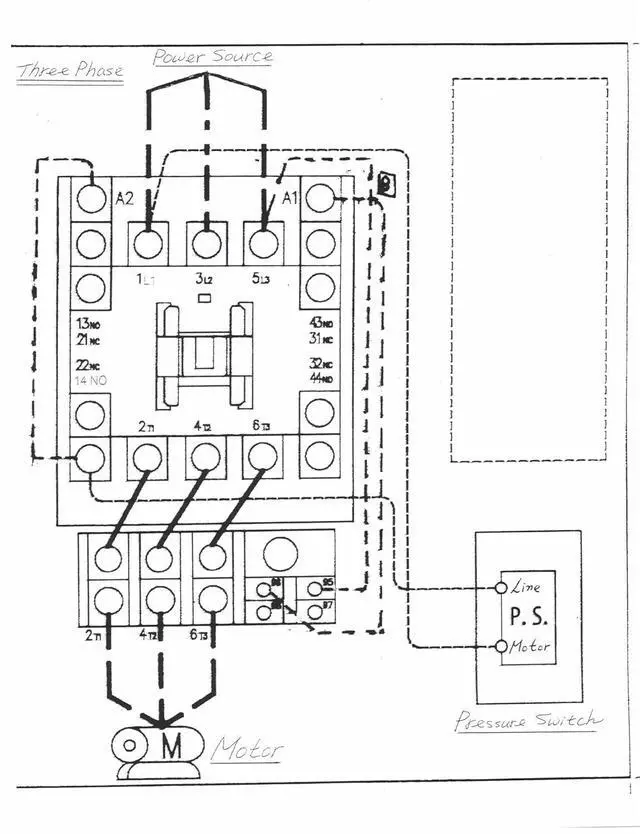

- Starter comes with wiring instructions.
- Included components: Wiring Diagram
+
+
Overview
Specs
Reviews

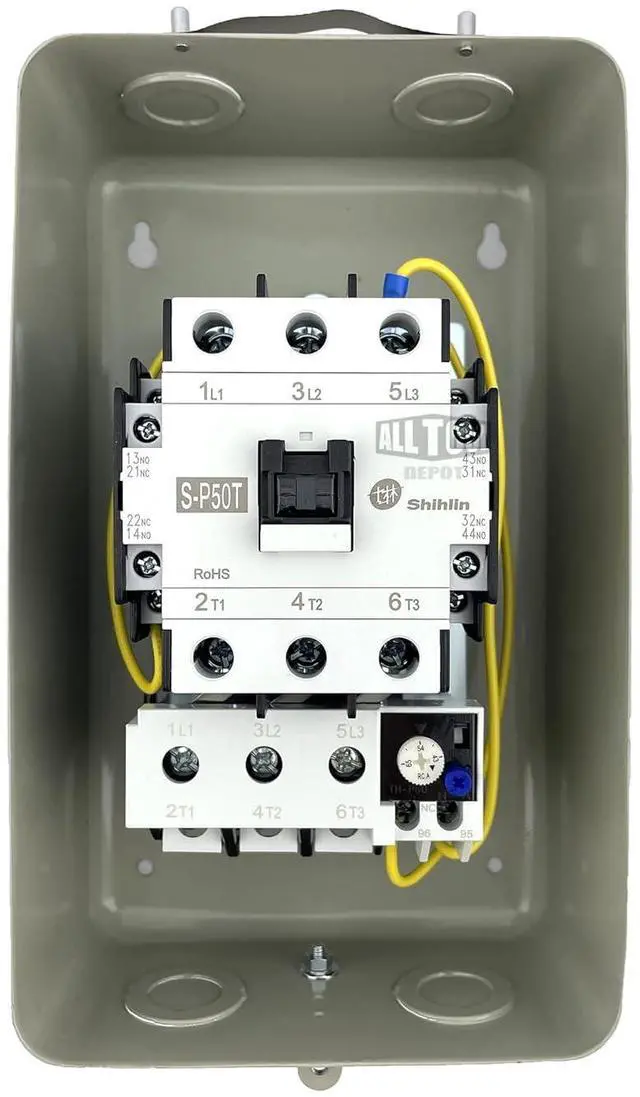

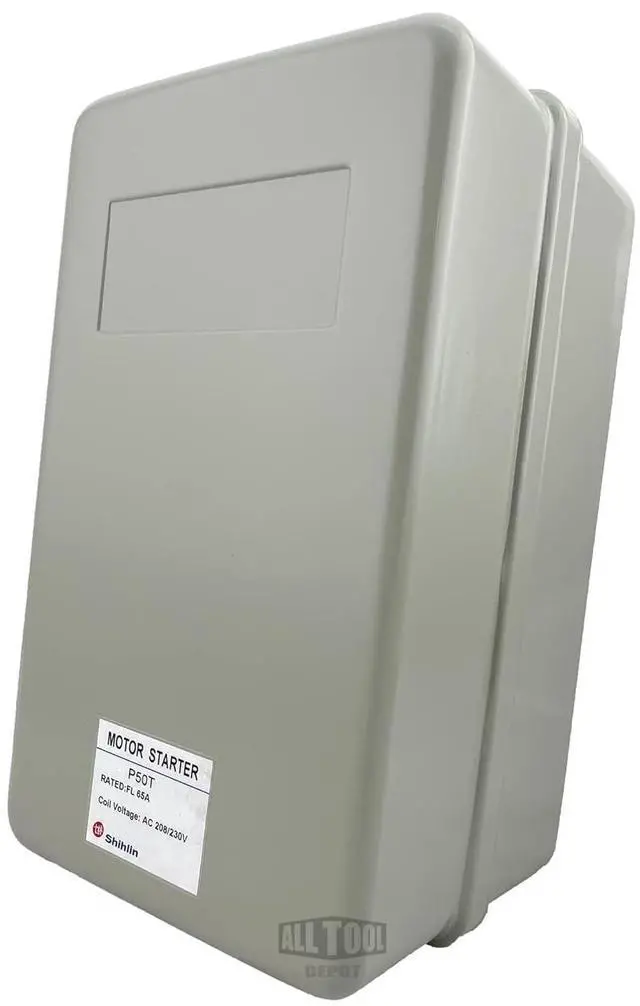

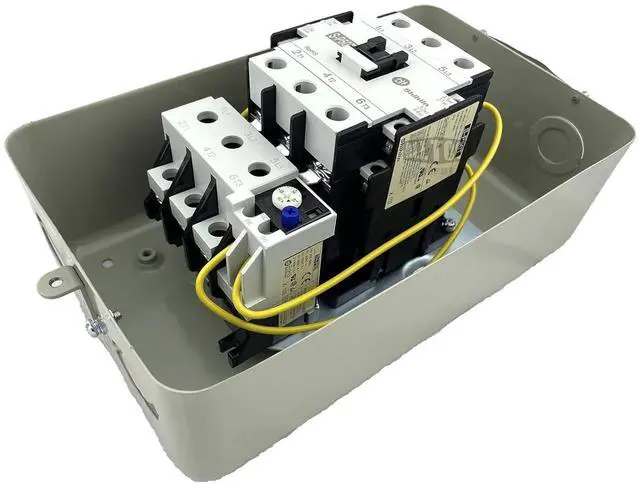

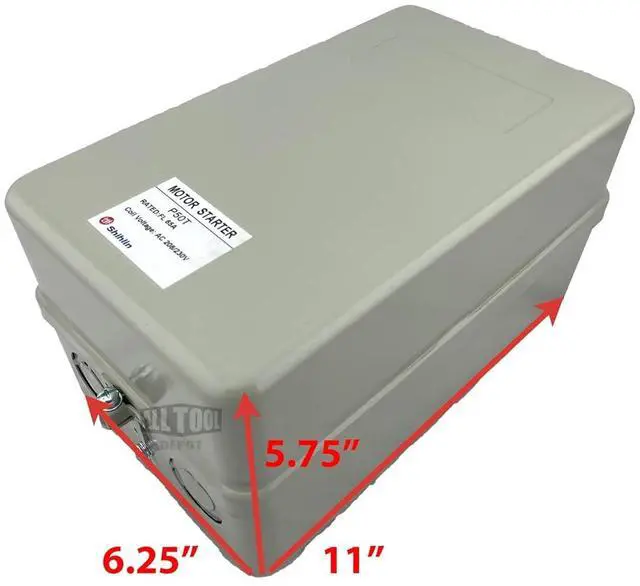

"PROFESSIONAL INSTALLATION IS REQUIRED" Brand New 15HP Three Phase Magnetic Motor Starter. Complete With Adjustable Overload Relay The Range Is Between 43-65 Amps. Also Comes With Built In Side Mounted Auxiliary Contacts. Normally Open & Normally Closed Type. Starter Comes Complete In A Metal NEMA 1 Style Enclosure, In Addition To 4 Punch Outs For Incoming And Outgoing Wires. Manufacturer Has Supplied 4 Rubber Grommets For Wire Protection. Reset Button Located On The Overload. Reset Can Be Set To Manual Or Auto Reset. HP: 15/ Voltage: 208-230vac/ Amps: 65 Amp/ Contactor Phase: Three/ Enclosure: Metal NEMA 1 Enclosure/ Dimensions: 11" Tall 6.25" Wide 5.75" Depth/ Overload: Amperage 43-65 Amps.
