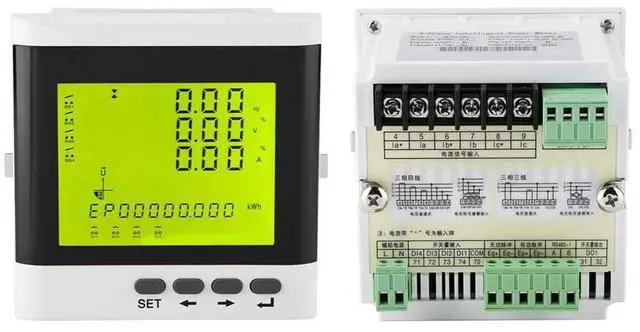

Three-Phase Multifunctional Digital Energy Meter, High Accuracy Voltage Current Display, Programmable Electric Power Meter Digital LED Ammeter Voltmeter

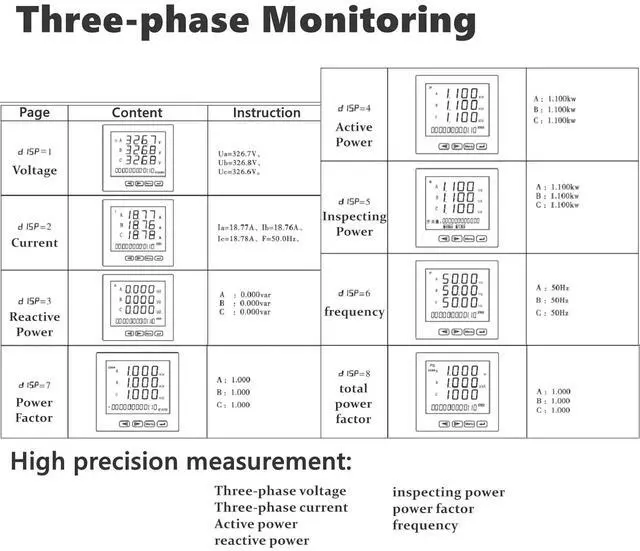

- Multi-function power meter measurement for three-phase voltage, current, active power, reactive power, power factor, grid frequency, active energy and reactive energy.
- Good accuracy, strong stability, four buttons design, enables the instrument to achieve convenient and flexible use.
- LCD digital display with high brightness presents three-phase current or voltage value stimutaneously.

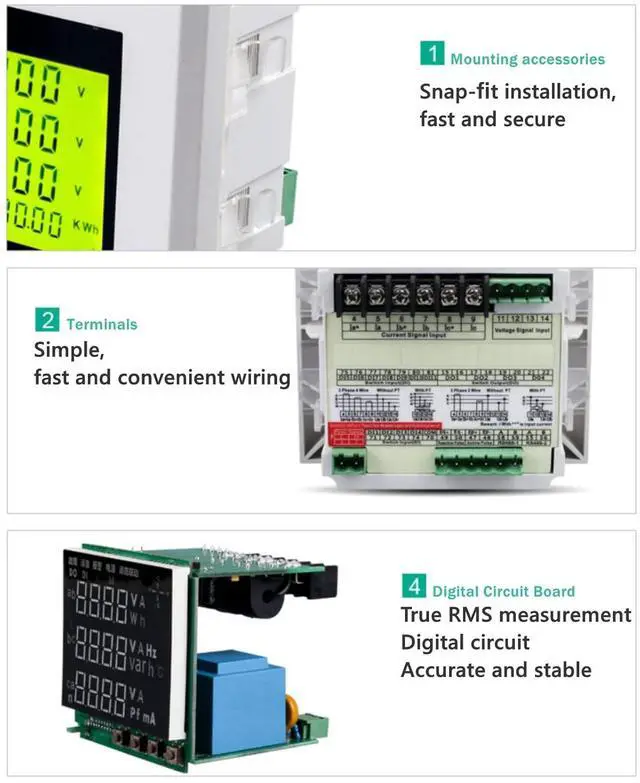

- Premium ABS housing, flame retardant properties, easy wiring.

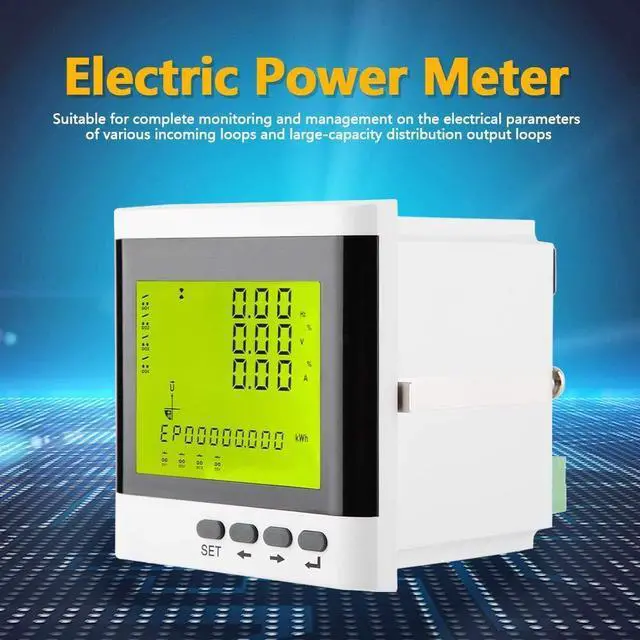

- Suitable for complete monitoring and management on the electrical parameters of various incoming loops and large-capacity distribution output loops.
+
+
Overview
Specs
Reviews
Specification:
Material: ABS
Color: Shown as picture

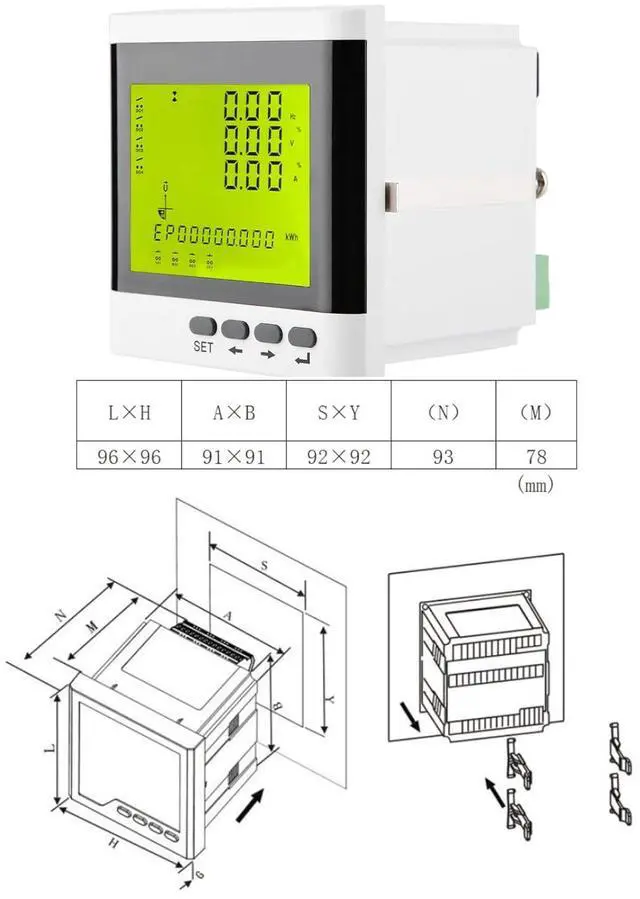

Size: Approx.9.5*9.5*9.5cm/3.7in
Package Weight: Approx.390g/13.8oz
Measuring Function
Parameters
input

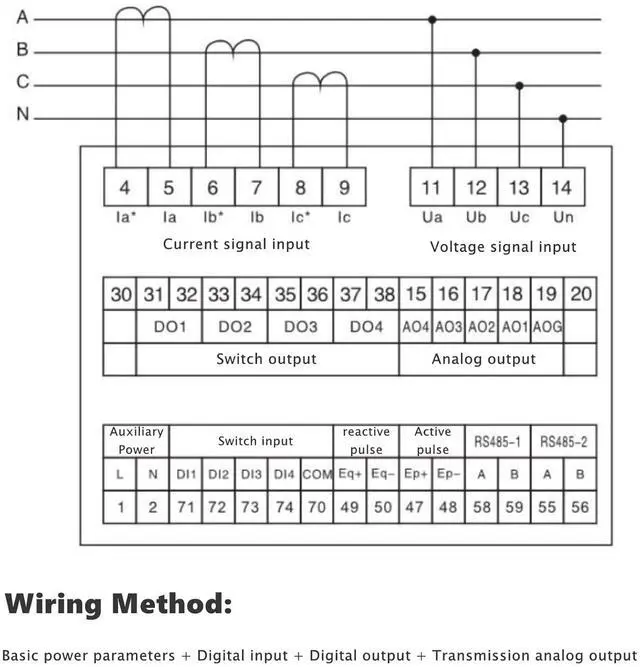

Wiring
3-phase 4-wire/3-phase 3-wire
Voltage
Range
380V/100V
Overload
Continuous: 1.2 times;instant:2 times
Power consumption
<1VA
Current
Range
5/1A
Overload
Continuous: 1.2 times;instant:2 times
Power consumption
<1VA
Frequency
45-65Hz
Power supply
AC/DC85-265V.AC220V-5VA
Communication
RS48 communication interface, isolation of physical layer
Meet international standard MODBUS-RTU protocol
Communication speed 1200-9600
Verification mode N81,E81,081
Analog output
0/4-20mA or O-5/10V transmitting output
Programmable to set transmission items and corresponding value
Relay output
Programmable remote control/alarm relay output
Capacity 5A/250VAC5A/30VDC
Programmable electric quantity alarming, switching input, analog output or remote control
Remote measuring switch
Remote measurement of switching input, master mode input without source
Programmable related alarm output
Measuring level
Level 0.5
Display modes
LED digital, LCD liquid crystal display
Environment
Working temperature:-10~+55°C
Storage temperature:-20-+75°C
Relative humidity:<80% RH
Safety
Insulation: , power, output terminal housing resistance>5MQ
Voltage withstand: housing between input, power supply and output>AC2KV
