$109.99
Ships from Hong Kong.
Sold by Chinathru Trading Co., Limited
Shipped by Chinathru Trading Co., Limited
Meet Your Seller

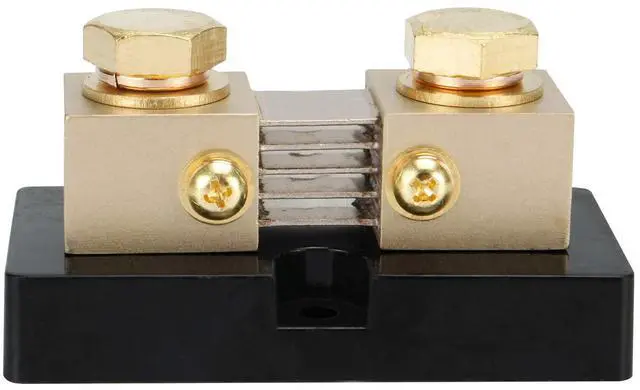

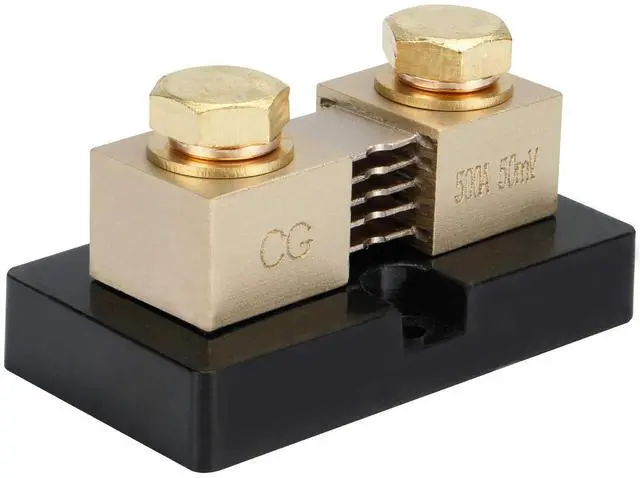

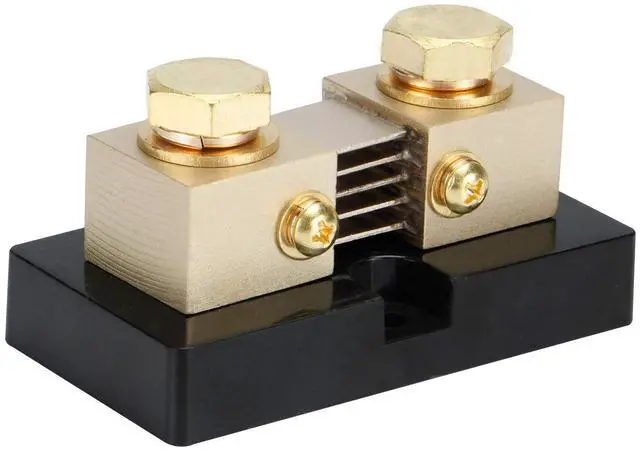

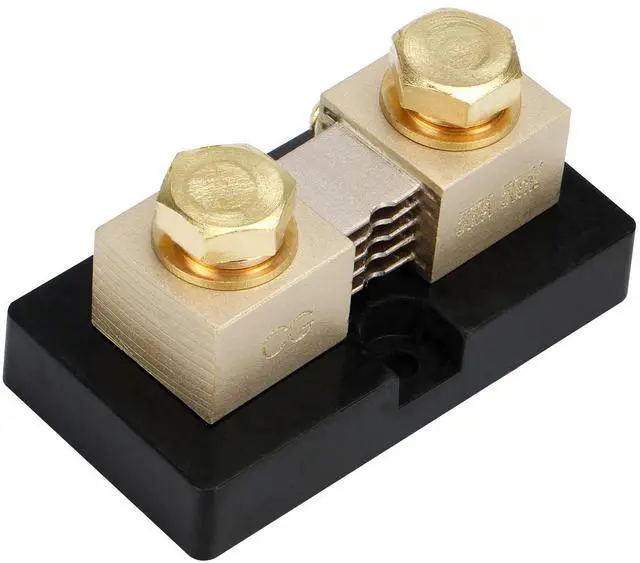

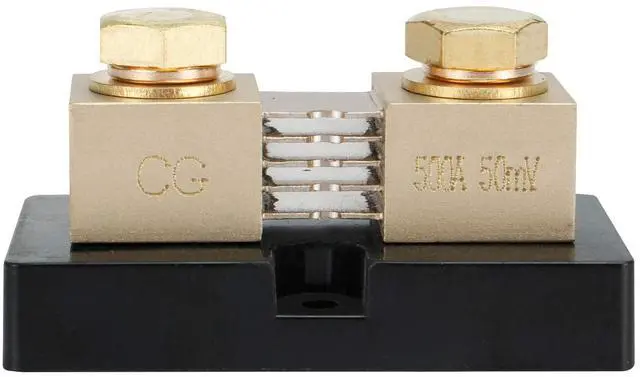

CG 500A 50mV Ampere Electrical Digital DC Current Shunt Resistor for amp Panel Ammeter Current Measurement Tester Gauge
- About CG:CG ammeter shunt is made of high quality brass and Manganin, is Sanded to make more shiny , sealing treatment to be used for a long time.

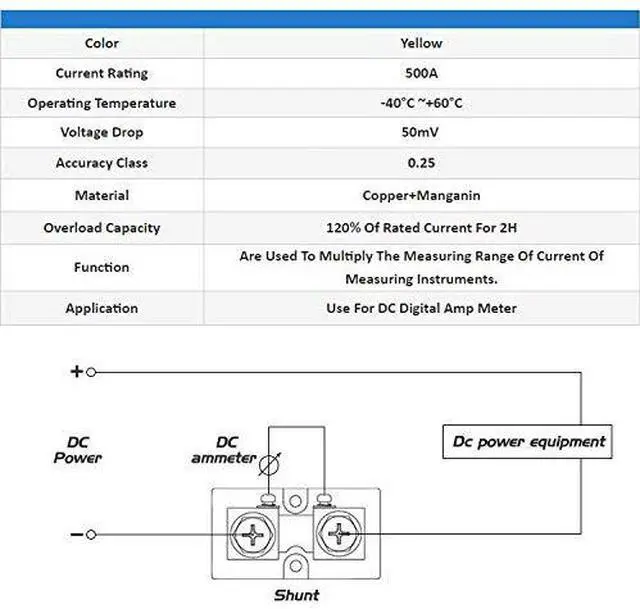

- Parameter:500A 50mV DC shunt;Voltage drop:50mV;Accuracy:+/- 0.25%;Operating Temperature:-40 to +60;Material:Copper+Manganin;relative humidity:less than or equal to 95% (35).
- Temperature Rise:20ppm,When the change of temperature tends to be stable,if rated current is below 50%, the temperature will be not higher than 80,if rated current is above 50%, the temperature will be not higher than 120.
- Over-load ability:rated current 120%, 2 hours.It is not recommended that the practical used current over the 80% of rated current for a long time.
- Package Content:1*500A/50mV dc shunt.
+
+
Overview
Specs
Reviews
About CG:CG ammeter shunt is made of high quality brass and Manganin, is Sanded to make more shiny , sealing treatment to be used for a long time.
Parameter:500A 50mV DC shunt;Voltage drop:50mV;Accuracy:+/- 0.25%;Operating Temperature:-40 to +60;Material:Copper+Manganin;relative humidity:less than or equal to 95% (35).
Temperature Rise:20ppm,When the change of temperature tends to be stable,if rated current is below 50%, the temperature will be not higher than 80,if rated current is above 50%, the temperature will be not higher than 120.
Over-load ability:rated current 120%, 2 hours.It is not recommended that the practical used current over the 80% of rated current for a long time.
Package Content:1*500A/50mV dc shunt.
Parameter:500A 50mV DC shunt;Voltage drop:50mV;Accuracy:+/- 0.25%;Operating Temperature:-40 to +60;Material:Copper+Manganin;relative humidity:less than or equal to 95% (35).
Temperature Rise:20ppm,When the change of temperature tends to be stable,if rated current is below 50%, the temperature will be not higher than 80,if rated current is above 50%, the temperature will be not higher than 120.
Over-load ability:rated current 120%, 2 hours.It is not recommended that the practical used current over the 80% of rated current for a long time.
Package Content:1*500A/50mV dc shunt.
