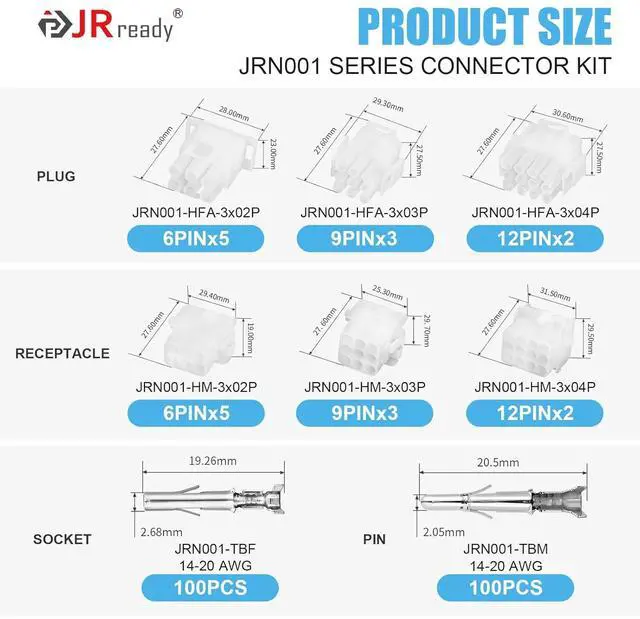

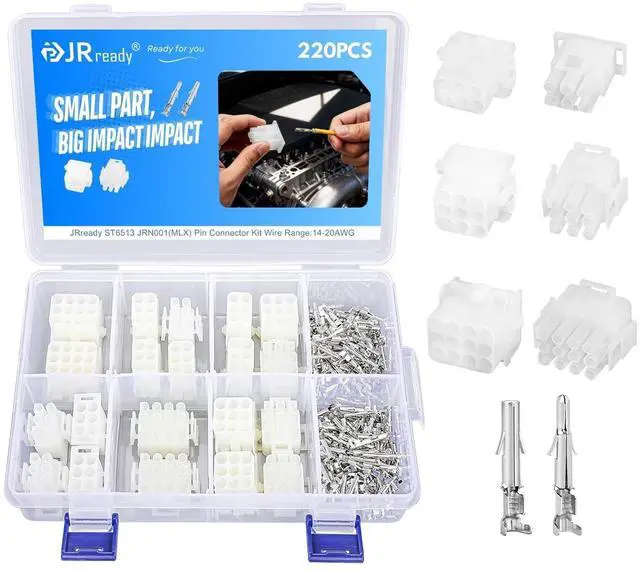

JRready ST6513 220Pcs MLX Pins Connector Kit 6p 9p 12p Industrial Compatible MLX Power Connector Header 2.13MM Diameter Plug with Crimp Terminal 42024 Series 20-14 AWG Stamped Terminals 10 Match Sets

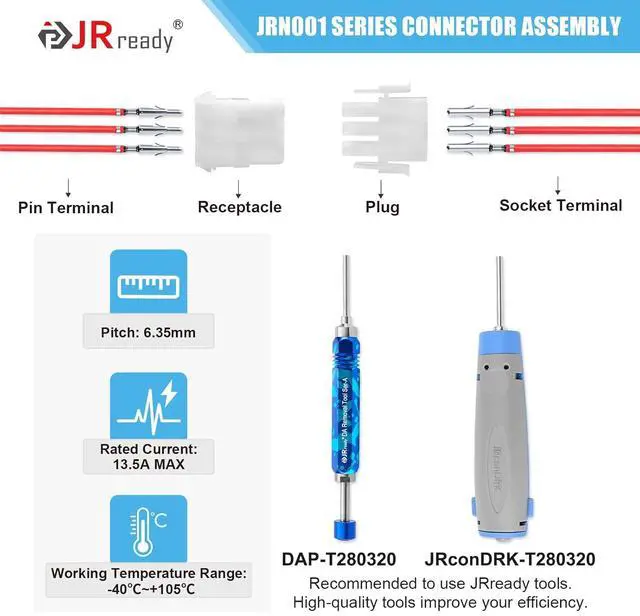

- HIGH QUALITY CONNECTOR: JRN001 series 6.35mm pitch connector is made of PA66 material,with a wire range of 12-24 AWG.Rated current is 13.5A MAX. The operating temperature range is from -40°C to +105°C. The flame retardant rating is UL94-V2. Under environmental conditions of 23°C ± 5°, the temperature rise at 13.5A current is no more than 30°C.The connector can be mated and unmated over 100 times.Exposure to air may result in slight color differences, but it doesn't affect the performance of the product. If you have any questions about this, please contact us anytime.

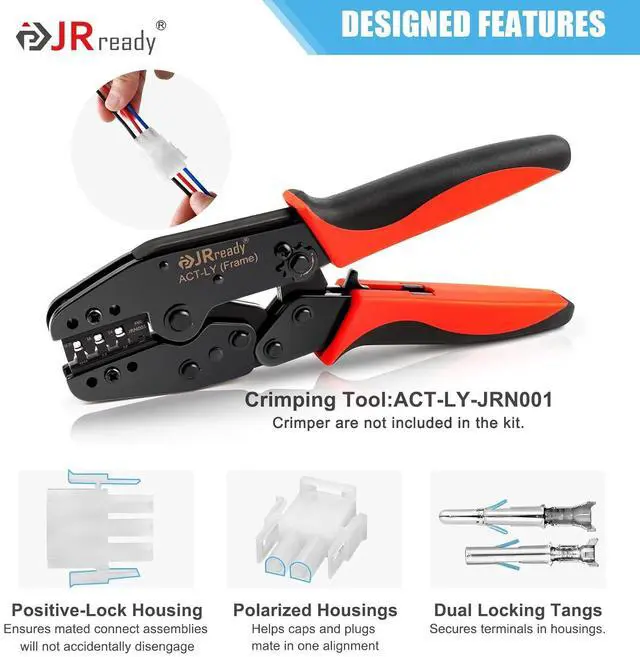

- EASY INSTALLATION DESIGN: JRN001 series connectors are designed with advanced mating technology, ensuring a secure connection with an audible "click" to prevent incorrect mating or poor contact. Independent cavity design Prevents terminal interference during insertion and provides electrical isolation. The locking design provides a firm retention after mating, preventing accidental disconnection due to vibration or pulli
+
+
Overview
Specs
Reviews
JRready ST6513 220Pcs MLX Pins Connector Kit 6p 9p 12p Industrial compatible MLX Power Connector Header 2.13MM Diameter plug with Crimp Terminal 42024 SERIES 20-14 AWG stamped Terminals 10 Match Sets
