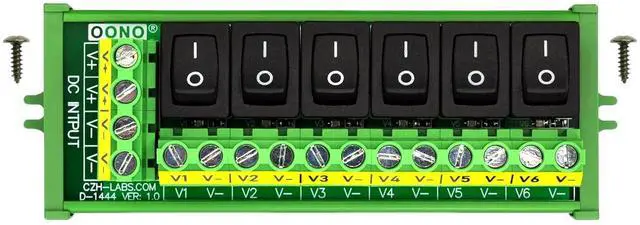

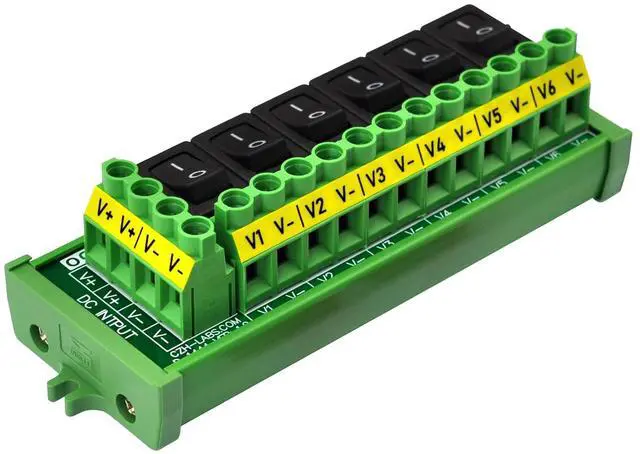

Screw Mount 6 Channel Rocker Switch DC Power Distribution Strip Module
- Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 6 Channels output, each channel maximum output current 10 Amps.

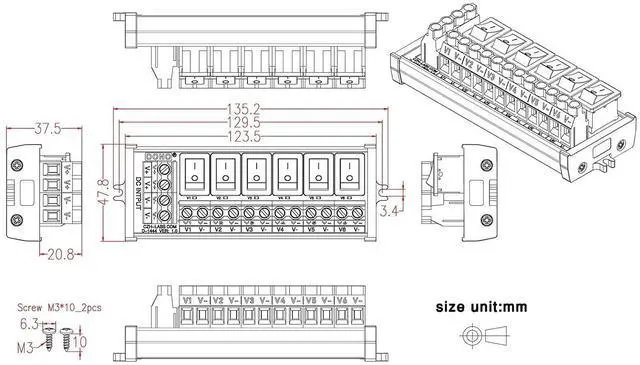

- Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
- Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.

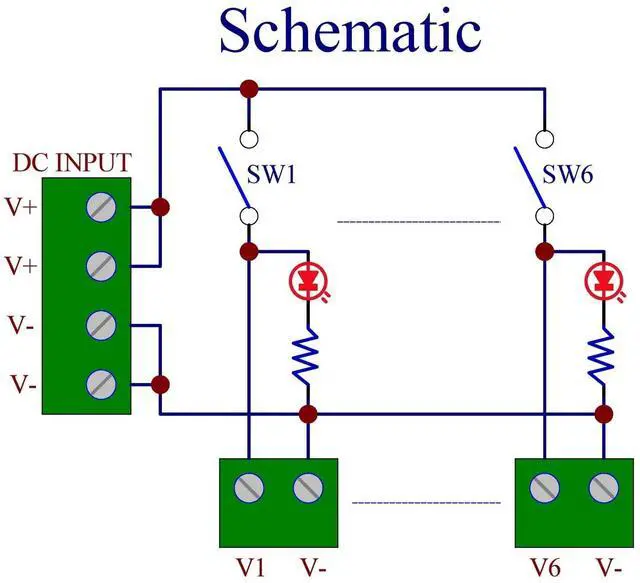

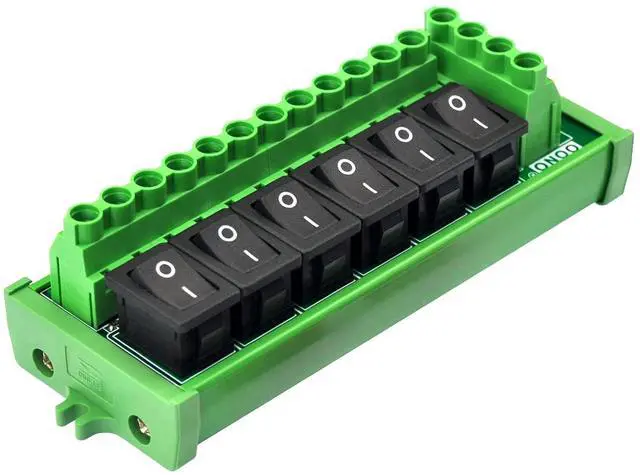

- Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.

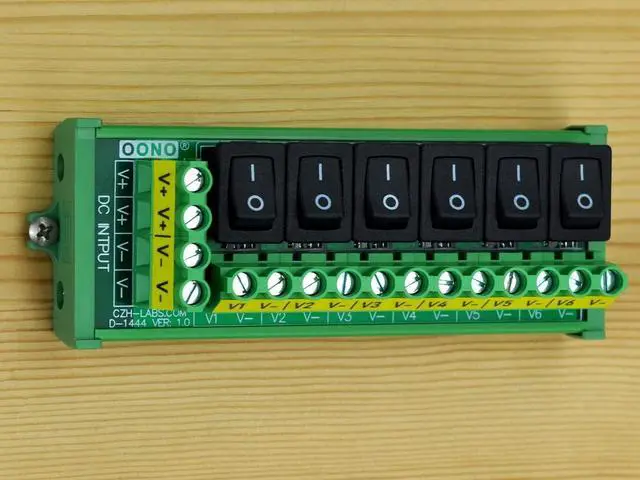

- FR-4 fiberglass dual copper layers PCB. Taiwan high quality fireproof nylon material mount carrier(not China low quality carrier). Also included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
+
+
Overview
Specs
Reviews
1, Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 6 Channels output, each channel maximum output current 10 Amps.
2, Input terminals pitch 7.62mm/0.3 inch, maximum current 30 Amps for per position, wire size 26 to 10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
3, Output terminals pitch 7.62mm/0.3 inch, wire size 26 to 10 AWG, stripping length 8mm, Metric M3 slotted screw.
4, Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
5, FR-4 fiberglass dual copper layers PCB. Taiwan high quality fireproof nylon material mount carrier(not China low quality carrier). Also included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
2, Input terminals pitch 7.62mm/0.3 inch, maximum current 30 Amps for per position, wire size 26 to 10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
3, Output terminals pitch 7.62mm/0.3 inch, wire size 26 to 10 AWG, stripping length 8mm, Metric M3 slotted screw.
4, Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
5, FR-4 fiberglass dual copper layers PCB. Taiwan high quality fireproof nylon material mount carrier(not China low quality carrier). Also included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
