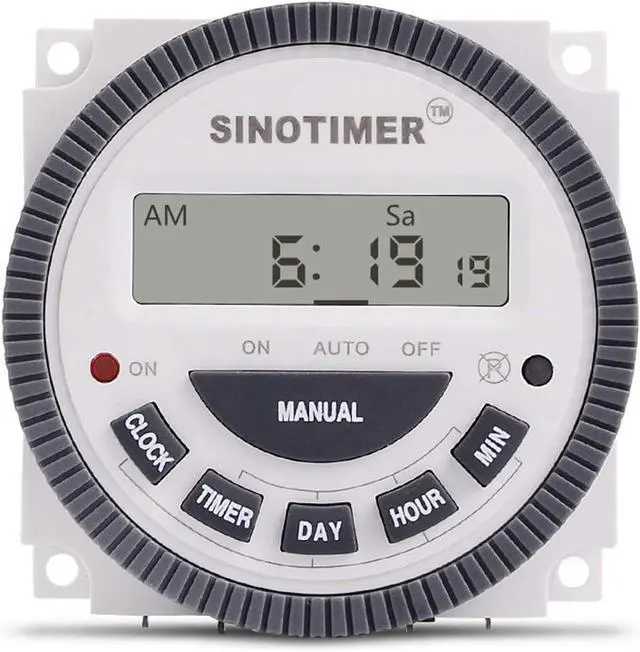

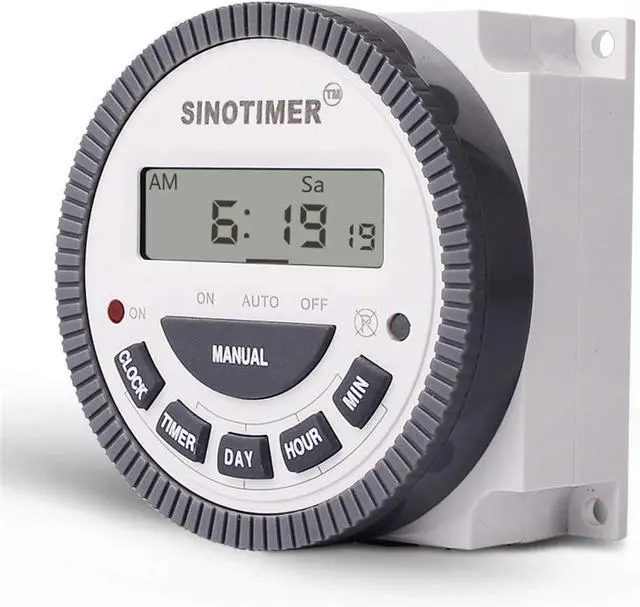

TM619 Timer Switch Digital LCD Power Timer Switch Weekly Programmable Thinner Model 16A 1NO+1NC(TM619-1 110V)

Description:
TM619 can automatically switch on and switch off various kinds of electric equipment at a preset time.
It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc.
The digital timer switch is within battery, to save the programs for power failiure.
It has the features of low consumption, high-accuracy CMOS chip, strongly anti-jamming, simple and easy to set, confirms to IEC 60367 and CE certificated.

Features:
1.Large LCD display for easy and clear reading.
2.Ideal for household use in panel mounted.
3.Built-in battery for saving the memory when power failure.
4.Dust-proof cover for the best protection.
5.Up to 16amp load(3500W max).
6.Minimum setting time of 1 minute.
7.24 hours / 7 days a week programmable.
8.Repeat programs with 16 on/off settings, and setting on/off manually.

Specification:
Model: TM619-1
Power supply: 110V
Load: 16A 3500W
Display: LCD
Timer Range: 1min-168hr
Power Consumption: 4.5VA
Programs: 16 ON/OFF Each Day or Week
Hysteresis: 2 Sec/ Day (25degC)
Minimum interval: 1 mins

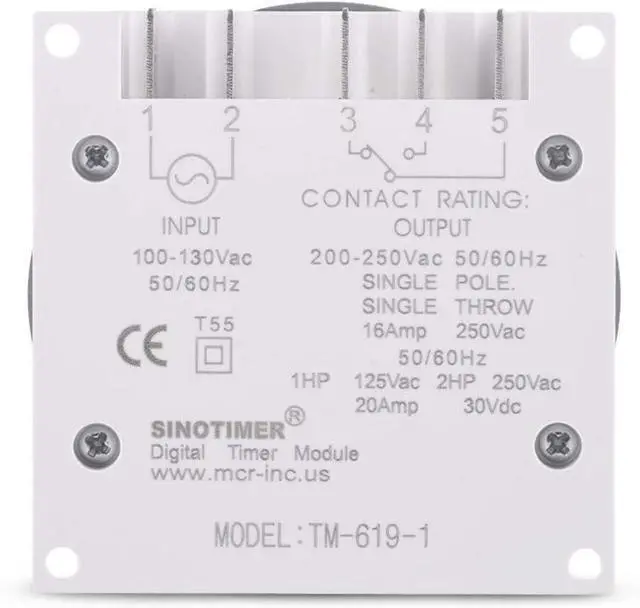

Switching Contact: 1 Changeover Switch
Black-out: 60 Days
