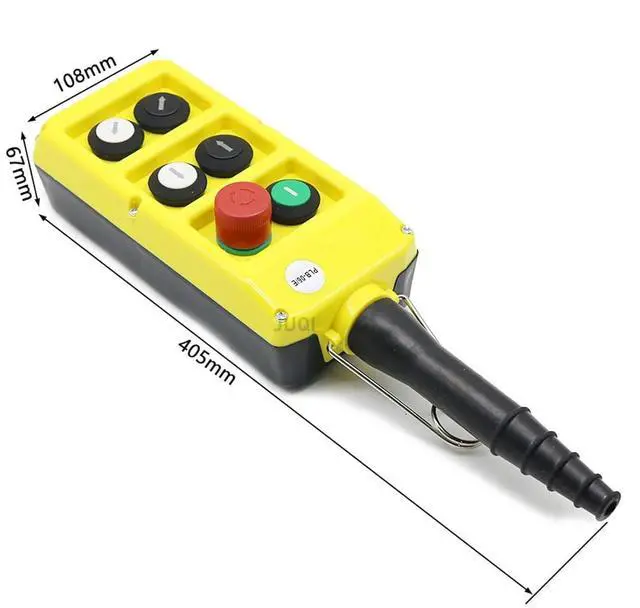

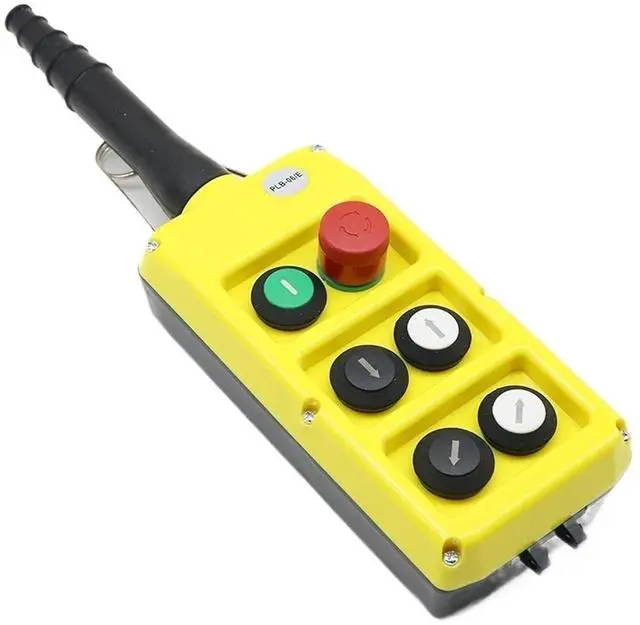

PLB-06 Button Crane Handle Hanging Waterproof Button Box Double Row Button Switch with Emergency Stop
- PLB06 is a double row suspension workstation for suspension control of bridge cranes in applications requiring industrial 6-button suspension controllers.
- The PLB06 crane pendant is equipped with a rotary button for releasing the emergency stop button with NC contact, up and down buttons, left and right and tilt up and down buttons with NO contact block.

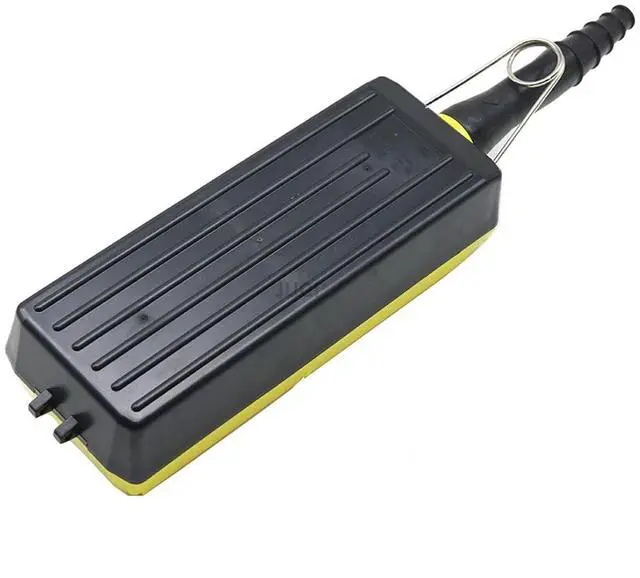

- The shell of this compact double row 6-button crane suspension device is made of a double insulated thermoplastic shell, which is shock proof, heat-resistant and is available in IP65, NEMA4X grades.
- The enclosure is equipped with a cable strain relief device to ensure safe wiring to the 6-hole pendant controller during all operations.
- Laser engraving button switch and double row button switch installation provide users with a friendly hanging console.
- The rated value of the contact used in the suspension console of the 6-button crane is 16A, and the screw clamp terminal block is used for wiring.
+
+
Overview
Specs
Reviews
Overhead crane and hoist pendant control stations
Emergency stop switch
Double row insulated housing
Easy to wire terminations
Current Rating 16 Amps
Mounting Type Crane Mount
Connector Type Clamp
Operation Mode Push Button,Twist
Actuator Type Push Button
Contact Type Normally Open, Normally Closed
Number of Positions 6
Switch Type Pushbutton Switch
Emergency stop switch
Double row insulated housing
Easy to wire terminations
Current Rating 16 Amps
Mounting Type Crane Mount
Connector Type Clamp
Operation Mode Push Button,Twist
Actuator Type Push Button
Contact Type Normally Open, Normally Closed
Number of Positions 6
Switch Type Pushbutton Switch
