$506.99
Ships from Hong Kong.
Sold by Chinathru Trading Co., Limited
Shipped by Chinathru Trading Co., Limited
Meet Your Seller

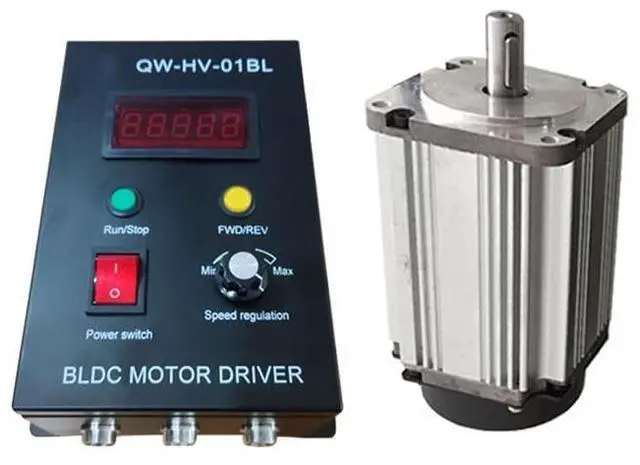

High Speed 110V/220V 6000rpm/3000/8000 0.75KW 750W 80mm Brushless DC Motor Low Noise Hall BLDC Motor with Driver (110v-750W3000rpm)
- Motor Parameters:
- Model: QW80BL007 -750
- Rated Power: 750W
- Input Voltage: 220-240VDC OR 110-130VDC
- Rated Speed: 3000/6000/8000 RPM
- Holding Torque: 2.39/1.19/0.89 N.m

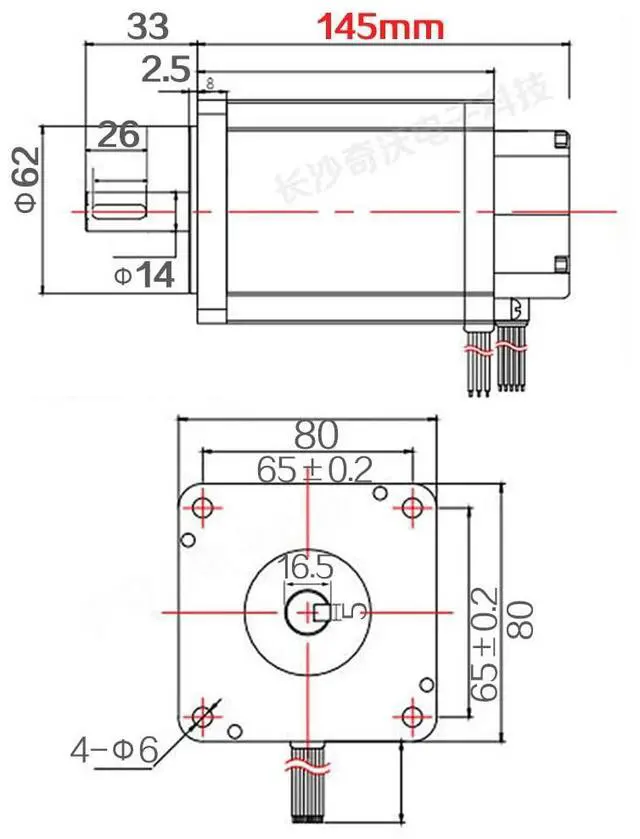

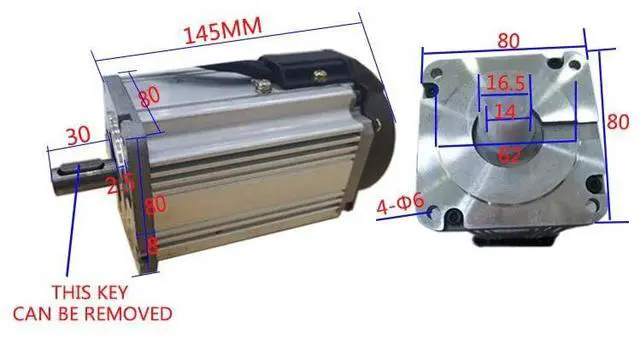

- Flange:80mm
- Output shaft Dia.:14 MM
- Number of Poles: 6

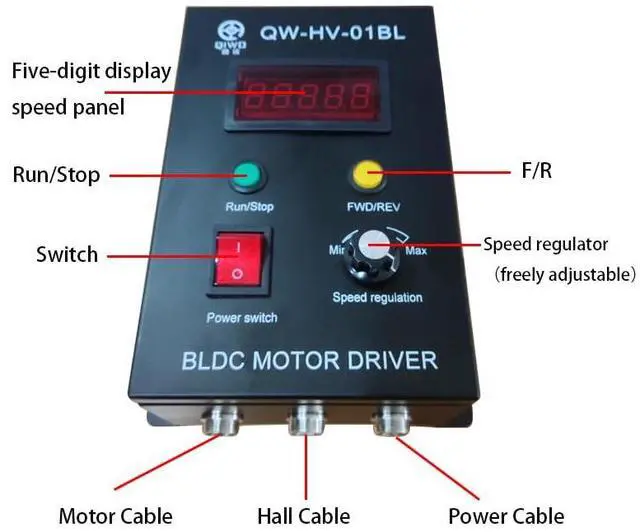

- Driver function: 1. Hall position sensor is adopted 2. External potentiometer stepless speed regulation interface 3. Can use external analogue speed control. 4. Five-digit display speed panel 5. 220-240V OR 110-130V power supply 6. It can be externally connected with positive and reverse selection switch 7. Built-in thermal protection , Over current protection, Hall error protection.
+
+
Overview
Specs
Reviews
Motor Parameters:
Model: QW80BL007 -750
Rated Power: 750W
Input Voltage: 220-240VDC OR 110-130VDC
Rated Speed: 3000/6000/8000 RPM
Holding Torque: 2.39/1.19/0.89 N.m
Flange:80mm
Output shaft Dia.:14 MM
Number of Poles: 6
Driver function: 1. Hall position sensor is adopted 2. External potentiometer stepless speed regulation interface 3. Can use external analogue speed control. 4. Five-digit display speed panel 5. 220-240V OR 110-130V power supply 6. It can be externally connected with positive and reverse selection switch 7. Built-in thermal protection , Over current protection, Hall error protection.
Model: QW80BL007 -750
Rated Power: 750W
Input Voltage: 220-240VDC OR 110-130VDC
Rated Speed: 3000/6000/8000 RPM
Holding Torque: 2.39/1.19/0.89 N.m
Flange:80mm
Output shaft Dia.:14 MM
Number of Poles: 6
Driver function: 1. Hall position sensor is adopted 2. External potentiometer stepless speed regulation interface 3. Can use external analogue speed control. 4. Five-digit display speed panel 5. 220-240V OR 110-130V power supply 6. It can be externally connected with positive and reverse selection switch 7. Built-in thermal protection , Over current protection, Hall error protection.
