$447.99
Ships from Hong Kong.
Sold by Chinathru Trading Co., Limited
Shipped by Chinathru Trading Co., Limited
Meet Your Seller

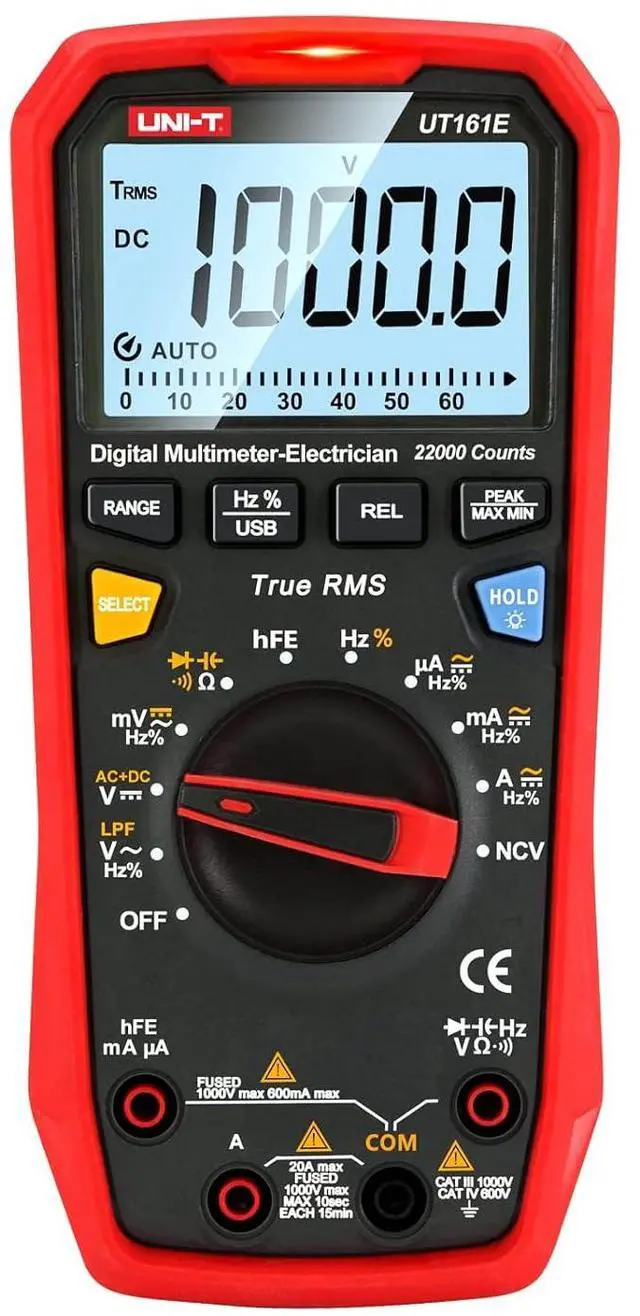

UNI-T Digital Multimeter Tester UT161E, True RMS 1000V AC DC Voltage Meter Tester Ohm Meter Capacitance Frequency 22000 Counts USB Transmission NCV hFE LPF ACV
- UT161E Digital Multimeter with Reliable 22,000 Counts Multi-meter. Volt meter and multimeter tester that measures AC/DC voltage up to 1000V, AC/DC current up to 20A, resistance, capacitor tester, frequency, duty-cycle, bandwidth, 46 analog bar, etc. Features ACV+DCV, hFE, LPF ACV, USB data transmission.
- True RMS multimeter. Multi meter digital accurately measures voltage and current in all conditions, including noisy environments affected by harmonics. Diagnose automotive, industrial and household electrical issue in a breeze. Data hold. Backlight. Max/Min. Relative mode.
- Safety rating: CAT III 1000V / CAT IV 600V.
- Volt meter digital is equipped with audible and visible alarm, providing warning especially when measuring high voltage/current. Rubberized cover. Ergonomic grip. Ultra safe and built to last electrical kit. Voltage meter NCV detection. Input protection.
- Easy Operation electrical tester kit. What you get: 1 x UT161E ohm meter multimeter, 1 x test leads(pair), 1 x USB ca
+
+
Overview
Specs
Reviews
UNI-T is your testing specialist.
Since 1988, Uni-Trend Technology (China) Co., Ltd has been the designer, manufacturer and seller of reliable testing, measuring and inspecting products to over 100 countries and regions globally.
How to download Software for analysis on PC?
Package comes with software download guide.
On this product page, view "Installation Manual (PDF) " on the Product guides and documents block.
Please refer to User Guide (software installation instruction) on this page before download.
How to download UNI-T App iDMM (2.0)?
For IOS (10.0 and above) / Android (5.0 and above).
Search iDMM. Free download in the App Store / Google Play.
Or, on this product page, view "Installation Manual (PDF) " on the Product guides and documents block.
* Bluetooth adapter UT-D07B is required when connecting device to mobile app. Separate offer.

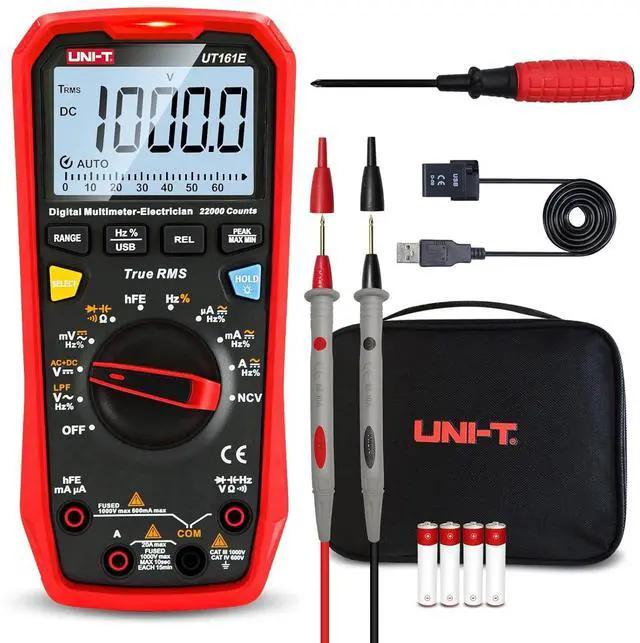

What you get
1 x UT161E digital multimeter
1 x test leads(pair)
1 x USB cable
1 x phillips screwdriver
1 x paper manual (En)
1 x eManual
1 x software
1 x APP(iDMM)
1 x gift box
Specification
Certifications. CE/RoHS/cETLus
Safety ratings. CAT III 1000V/CAT IV 600V
AC voltage (V). 1000V
DC voltage (V). 1000V
AC current (A). 20A
DC current (A). 20A
Resistance (). 220M
Capacitance (F). 220mF
Frequency (Hz). 220MHz
Duty cycle (%). 0.1%~99.9%
Digital Multimeter Display count. 22,000
Multimeter Tester Bandwidth (Hz). 40~10kHz
LPF ACV.
ACV+DCV .
Transistor hFE.
Since 1988, Uni-Trend Technology (China) Co., Ltd has been the designer, manufacturer and seller of reliable testing, measuring and inspecting products to over 100 countries and regions globally.
How to download Software for analysis on PC?
Package comes with software download guide.
On this product page, view "Installation Manual (PDF) " on the Product guides and documents block.
Please refer to User Guide (software installation instruction) on this page before download.
How to download UNI-T App iDMM (2.0)?
For IOS (10.0 and above) / Android (5.0 and above).
Search iDMM. Free download in the App Store / Google Play.
Or, on this product page, view "Installation Manual (PDF) " on the Product guides and documents block.
* Bluetooth adapter UT-D07B is required when connecting device to mobile app. Separate offer.
What you get
1 x UT161E digital multimeter
1 x test leads(pair)
1 x USB cable
1 x phillips screwdriver
1 x paper manual (En)
1 x eManual
1 x software
1 x APP(iDMM)
1 x gift box
Specification
Certifications. CE/RoHS/cETLus
Safety ratings. CAT III 1000V/CAT IV 600V
AC voltage (V). 1000V
DC voltage (V). 1000V
AC current (A). 20A
DC current (A). 20A
Resistance (). 220M
Capacitance (F). 220mF
Frequency (Hz). 220MHz
Duty cycle (%). 0.1%~99.9%
Digital Multimeter Display count. 22,000
Multimeter Tester Bandwidth (Hz). 40~10kHz
LPF ACV.
ACV+DCV .
Transistor hFE.
