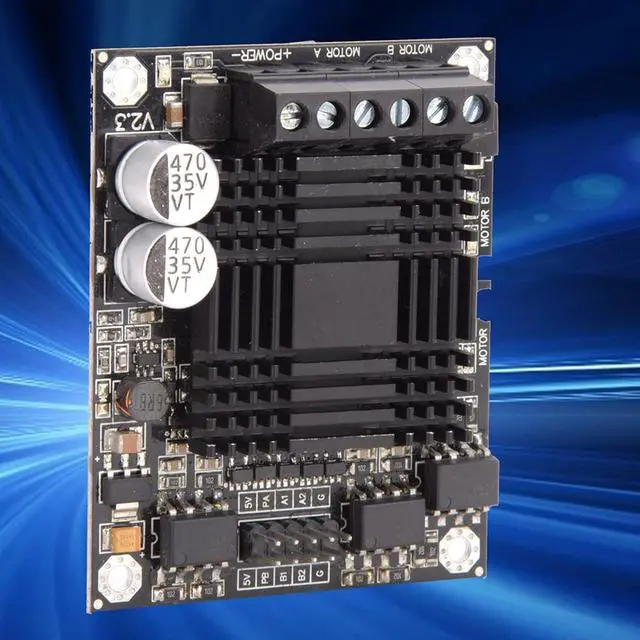

DC Motor Driver Module, 60A 60KHZ High Performance Double Channel H-Bridge Motor Driver Controller Module for Robot Competition
- The basic components of the drive module body are patches, which has a high degree of integration.10M high-speed optocoupler is used to isolate the input , effectively preventing the interference of the driver board to the control board, making the system more stable and
- DC Motor driver module has well-designed layout, beautiful and small size, onboard two high-power DC motor drives,which is ideal for robot competitions, car competitions, etc.
- Both 3.3V and 5V microcontrollers can control this module, and only need one motor power(12V ~ 30V).The large heat sink can effectively dissipate the drive module under high current and maintain the good stability of the module.
- DC Motor driver module has high switching frequency,which is up to 60KHZ.When driving the motor, the maximum rated current of the module can reach 60A, and the on-resistance is only 0.003 ohm.
- 60A Dual-channel high-power H-bridge DC motor drive module has very simple control interface: When A1.A2 = 0.0 is the brake;
+
+
Overview
Specs
Reviews
Specification:
Item Type: DC Motor Driver Module
The control interface is very simple: when A1.A2 = 0.0 is the brake; when A1.A2 = 1.0 is the forward rotation; when A1.A2 = 0.1 is the reverse rotation; PA is the PWM input (motor speed adjustment); G is for the control board Common ground pin (channel B is controlled in the same way)
Both 3.3V and 5V microcontrollers can control this module, and only need one motor power (12V ~ 30V)
Package List:
1 x Module
Gather high-quality products and build a global high-quality Internet high-quality well-known brand.
Brand Vision:
Item Type: DC Motor Driver Module
The control interface is very simple: when A1.A2 = 0.0 is the brake; when A1.A2 = 1.0 is the forward rotation; when A1.A2 = 0.1 is the reverse rotation; PA is the PWM input (motor speed adjustment); G is for the control board Common ground pin (channel B is controlled in the same way)
Both 3.3V and 5V microcontrollers can control this module, and only need one motor power (12V ~ 30V)
Package List:
1 x Module
Gather high-quality products and build a global high-quality Internet high-quality well-known brand.
Brand Vision:
