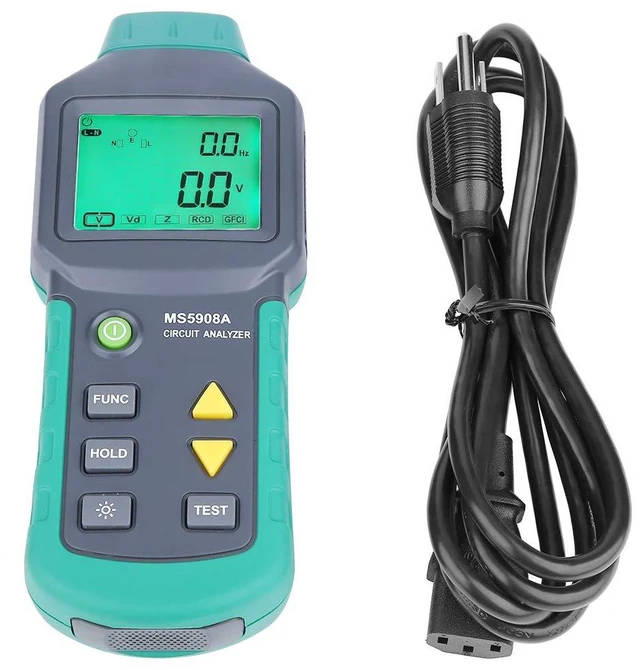

Circuit Analyzer, AC100-240V RMS Circuit Analyzer Tester MS5908A/MS5908C LCD LCD Circuit Analyzer, Voltage GFCI RCD Fault Tester
- Multifunctional: This voltage circuit analyzer offers various features such as backlighting and data retention functions . These functions it easy to read and operate , even in low light conditions , and allow for convenient data storage .
- Widely Used: The LCD Circuit Analyzer is versatile and can be used for TRMS measurement of AC voltage . It is also capable of testing the reliability and response time of current devices (RCDs) and the reliability of Ground Fault Circuit Interrupter (GFCI) action . This makes it suitable for a wide range of electrical testing and troubleshooting applications .
- Manual Load: The analyzer comes with manual load options for different current levels . This allows for measuring wire drop at 12A , 15A , and 20A (MS5908A model) , or at 5A , 8A , and 10A (other This feature enables accurate measurements and assessment of wire performance under different load conditions .
- Measurement Range: This circuit analyzer is capable of measuring various parameters i
+
+
Overview
Specs
Reviews
TRMS measuring AC Voltage. Test the reliability of residual current device(RCD) and response action time
Artificial load 12A,15A, 20A measuring wire drop(MS5908A)/Artificial load 5A,8A,10A measuring wire drop(MS5908C)
Measuring phase voltage, neutral wire, voltage to earth, peak voltage, frequency
Measuring phase(live wire), neutral wire, earth wire conductor impedance
Identifying 3-wire socket connection mode(neutral for left and live for right,having earth wire or not)
Wire Voltage: 85.0~265.0V: 0.1V ±(1.0%+0.2V)
Peak voltage: 121.0~374.0: 0.1V ±(1.0%+0.2V)
Frequency: 45.0~65.0Hz: 0.1Hz ±(1.0%+0.2Hz)
Voltage Drop: 0.1%~99.9%: 0.1% ±(2.5%+0.2%)
Voltage Loaded: 10.0~265.0V: 0.1V ±(2.5%+0.2V)
Voltage to earth of neutral wire:0.0!10.0V: 0.1V ±(2.5%+0.2%)
Impedance for live wire, neutral wire and earth wire: 0.00~3.00: 0.01 ±(2.5%+0.02)
RCD Triggering Time: 1ms~6.500s: 1ms ±(1.0%+2ms)
RCD Triggering Current: 30mA~37mA: 0.1mA ±(1.0%+0.2mA)
GFCI Triggering timer: 1ms~6.500s: 1ms ±(1.0%+2ms)
GFCI Triggering Current: 6mA~9mA: 0.1mA ±(1.0%+0.2mA)
Artificial load 12A,15A, 20A measuring wire drop(MS5908A)/Artificial load 5A,8A,10A measuring wire drop(MS5908C)
Measuring phase voltage, neutral wire, voltage to earth, peak voltage, frequency
Measuring phase(live wire), neutral wire, earth wire conductor impedance
Identifying 3-wire socket connection mode(neutral for left and live for right,having earth wire or not)
Wire Voltage: 85.0~265.0V: 0.1V ±(1.0%+0.2V)
Peak voltage: 121.0~374.0: 0.1V ±(1.0%+0.2V)
Frequency: 45.0~65.0Hz: 0.1Hz ±(1.0%+0.2Hz)
Voltage Drop: 0.1%~99.9%: 0.1% ±(2.5%+0.2%)
Voltage Loaded: 10.0~265.0V: 0.1V ±(2.5%+0.2V)
Voltage to earth of neutral wire:0.0!10.0V: 0.1V ±(2.5%+0.2%)
Impedance for live wire, neutral wire and earth wire: 0.00~3.00: 0.01 ±(2.5%+0.02)
RCD Triggering Time: 1ms~6.500s: 1ms ±(1.0%+2ms)
RCD Triggering Current: 30mA~37mA: 0.1mA ±(1.0%+0.2mA)
GFCI Triggering timer: 1ms~6.500s: 1ms ±(1.0%+2ms)
GFCI Triggering Current: 6mA~9mA: 0.1mA ±(1.0%+0.2mA)
