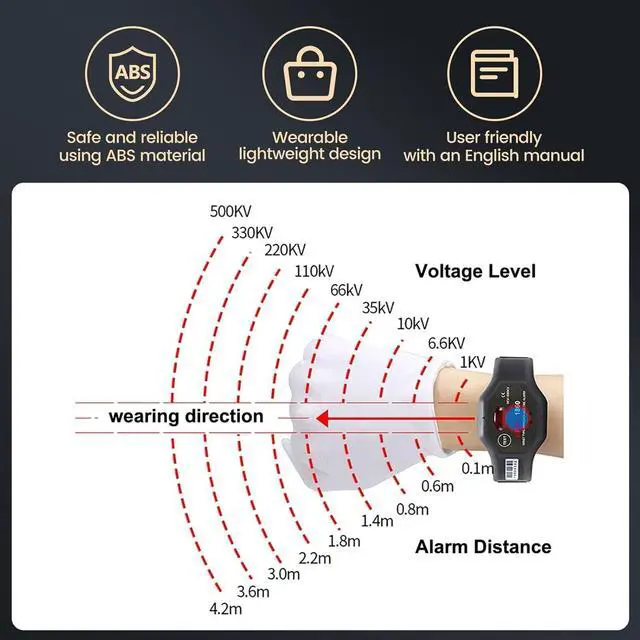

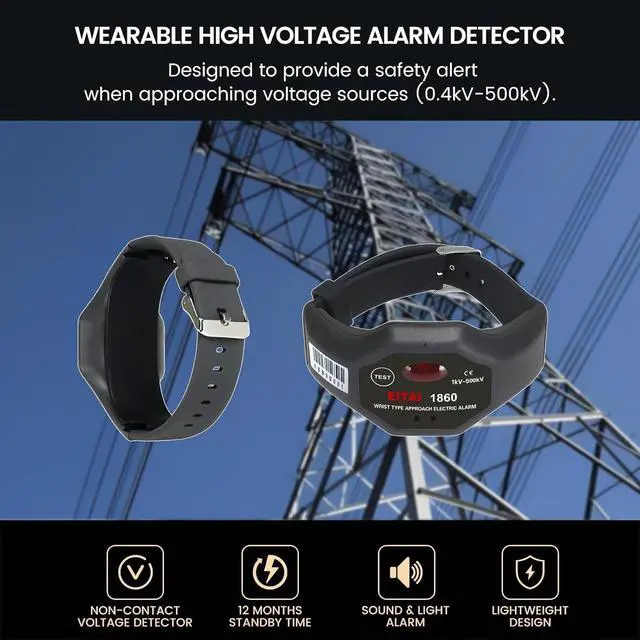

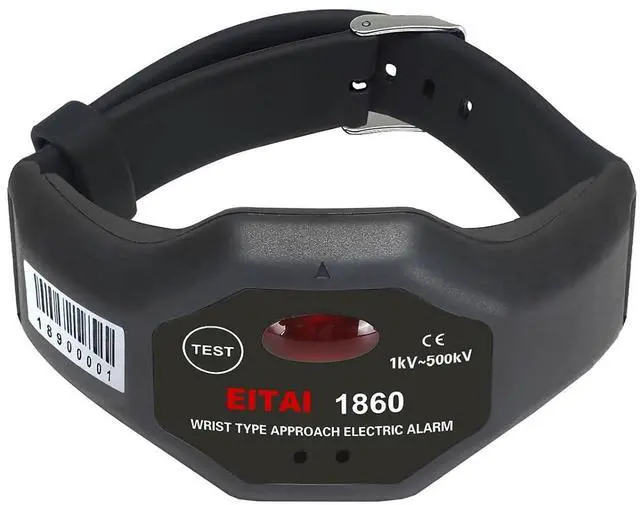

EITAI1860 Wrist Type Wearable High Voltage Alarm Detector, also known as wearable near-electric alarm, which provides a safe, practical and convenient new-type high voltage alarm device for near-electric operators. When work on electric device without turning off electricity, the safety distance between the operator and the live object should not be lower than the requirement of relevant work regulation. After the operator wearing this alarm, when approaching the certain distance from high voltage live object, the alarm will emit sound and light alarm according to the corresponding safety distance of the voltage level, reminding electrical worker paying attention to safety and avoiding high voltage electric shock accident.
EITAI1860 series Wrist Type Voltage Detector Approach Electricity Alarm has two options: high voltage alarm (suitable for 1kV and above) and low voltage alarm (suitable for 1kV and below), adopting with non-contact induction technology, accurate alarm, energy-saving and durable, with standby time up to 12 months. The alarm has unique automatic triggering detection function to ensure the safety of live working personnel. This alarm are widely used in near-electric workplaces such as power, railway and industrial mining enterprise.
1.Wrist type: The alarm is worn on the wrist of the operator.
2.Non-contact: Adopt with non-contact induction technology, accurate alarm, energy-saving and durable, with standby time up to 12 months.
3.Comprehensive: Detects the electric field in the air in all directions, trigger automatically alarm function, sound and light mode, ensuring the safety of near-electricity operator.
4.Protection level: IP54
FunctionsHigh Voltage DetectionPower SupplyCR-1632Voltage Alarm Range0.4kV~500kVAlarm Distance Error±10cm (Under benchmark conditions)Work Frequency50Hz/60HzOverall Size90mm x 40mm x 35mmProtection LevelIP54Weight40gWorking Temperature & Humidity-10 to 40; below 80%RHStorage Temperature & Humidity-20-60; below 90%RHStandby timeUp to 12 monthsAlarm MethodIndicator light: 8000LX visible light visible LED light; Buzzer: Above 60dB (60cm apart) Specifications
