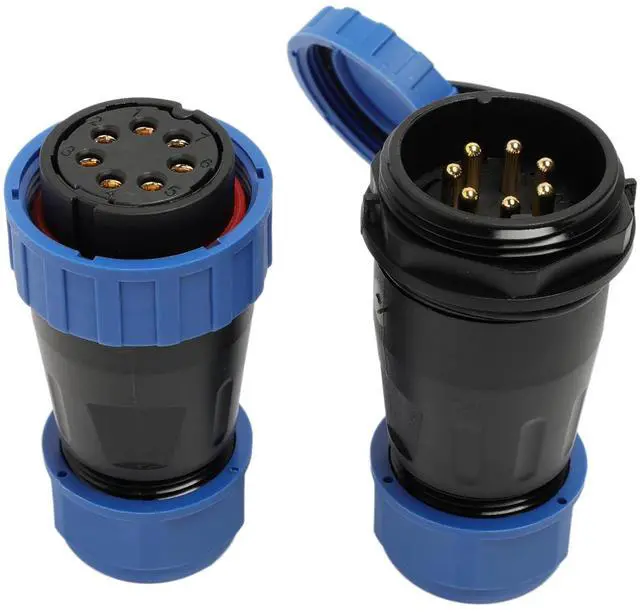

TY28 7 Pin 25A Connector Female Male Plug Socket Screw-Crimp Easy Quick-Disconnect for Automotive Electrical Power Device
- TY28 7-pin waterproof electrical power connector, screw terminal connection, easy to assemble, free-solder

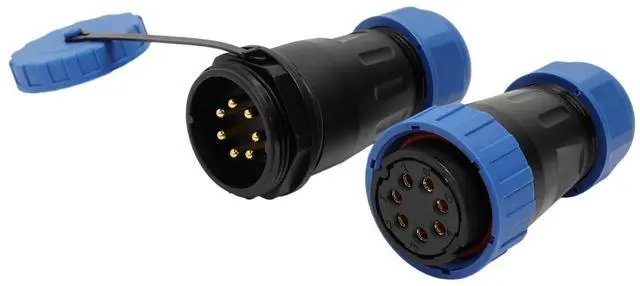

- In-line cable mount male socket and female plug with watertight cap. Panel cutout 28.5mm, thread size M28 x 1.5
- Rated Voltage/Current AC 380V / 25A, Contact resistance 1m, Insulation resistance 2000m. Suitable wire outer diameter range 10-15mm, Wire gauge 4mm² or 12AWG, Contact Diameter 2.8mm
- Features Waterproof IP68 protection, threaded coupling, quick disconnect, bulkhead. The contact pins are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance
- Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment. Recommended wire stripping length: 9mm
+
+
Overview
Specs
Reviews

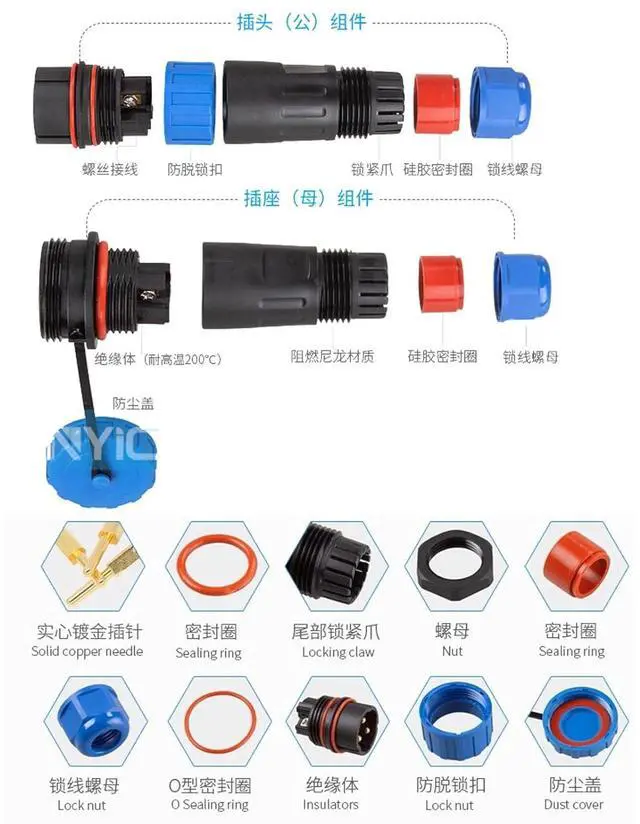

Package Includes:
1 x Plug with female contact
1 x Socket with male contact
1 x Waterproof / Dustproof Cap
Features:
The connector can provide a safe and reliable connection in the harsh environment .
TY28 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, motors.

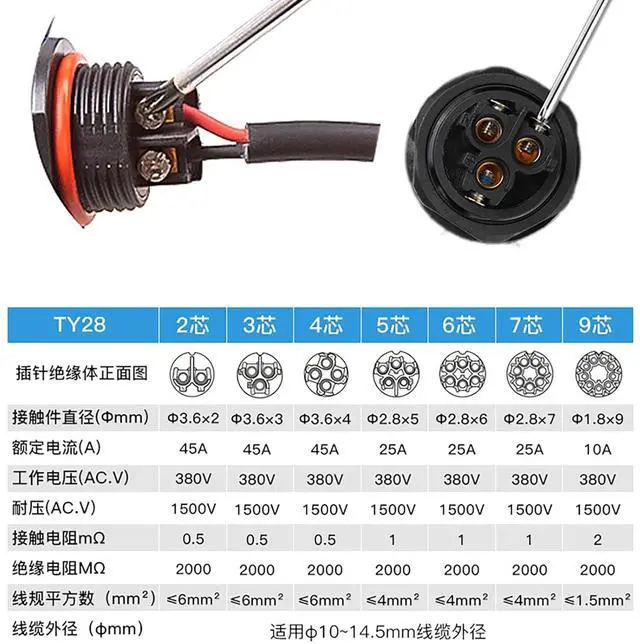

Specifications:
TY28:
Model: 2-9 Pin
IP Rating: IP68

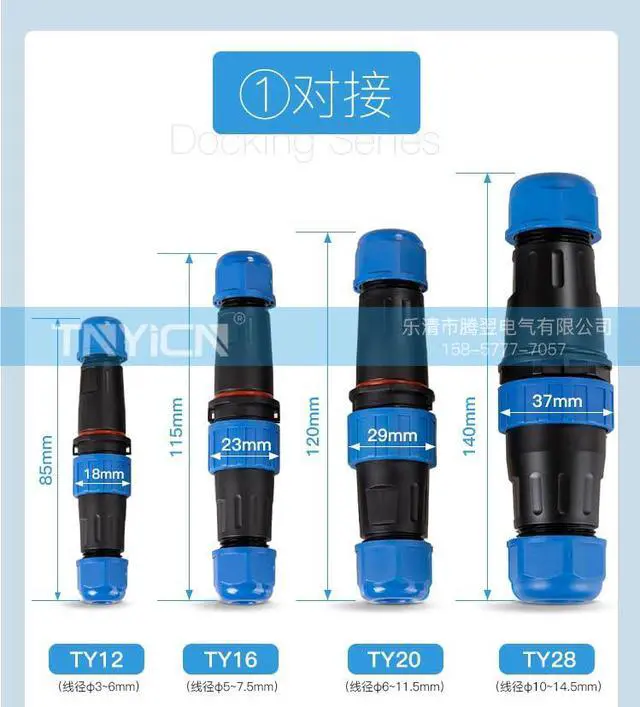

Panel Cutout Diameter: 28.5mm
Cable Outer Diameter Range:10-15mm
Coupling Type: Threaded Coupling
Shell material: Thermoplastic Nylon66, Fire Resistance: V-0
Insert Material: Thermoplastic PA66, max temperature 200
Contact Material: Pure copper plated gold
Terminal Connection: Free-Solder / Screw Crimp
Mating Cycle: >500 times
Temperature Range: -25~+85
1 x Plug with female contact
1 x Socket with male contact
1 x Waterproof / Dustproof Cap
Features:
The connector can provide a safe and reliable connection in the harsh environment .
TY28 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, motors.
Specifications:
TY28:
Model: 2-9 Pin
IP Rating: IP68
Panel Cutout Diameter: 28.5mm
Cable Outer Diameter Range:10-15mm
Coupling Type: Threaded Coupling
Shell material: Thermoplastic Nylon66, Fire Resistance: V-0
Insert Material: Thermoplastic PA66, max temperature 200
Contact Material: Pure copper plated gold
Terminal Connection: Free-Solder / Screw Crimp
Mating Cycle: >500 times
Temperature Range: -25~+85
