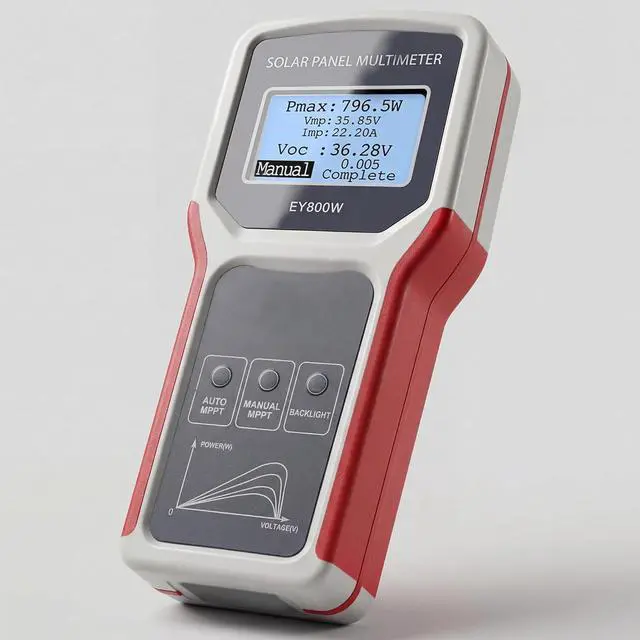

Solar Panel Tester/EY800W Solar Panel Meter/PV Testing Instrument Ultra Open Circuit Voltage Auto/Manual MPPT Clear LCD

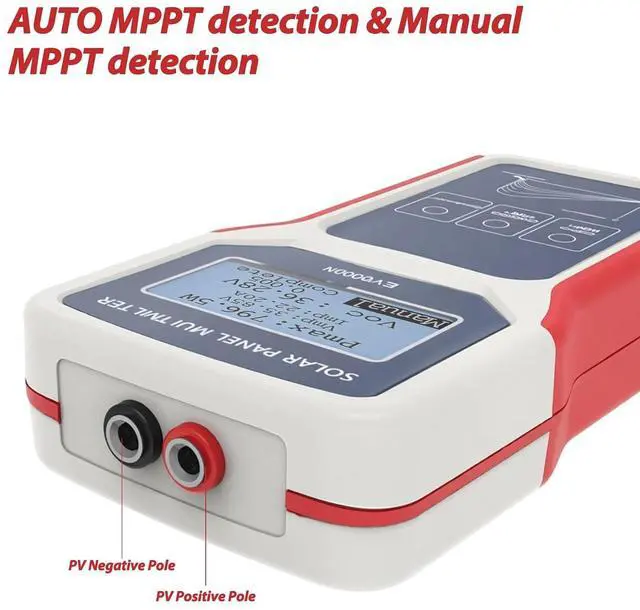

- AUTO MPPT detection & Manual MPPT detection (Auto MPPT: The instrument automatically adjusts the test interval according to the current power value and refreshes the display. When at 100W, refresh it every 5 seconds; When At 300W, refresh it every 15 seconds;)

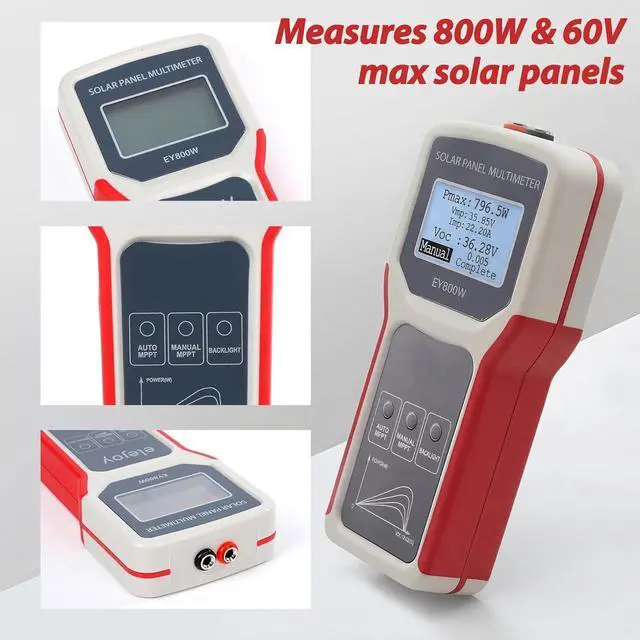

- Used to measure all solar panels under 800W & 60V, suitable for portable solar, foldable solar panel, solar PV kit, car/boat solar power, roof solar panel etc

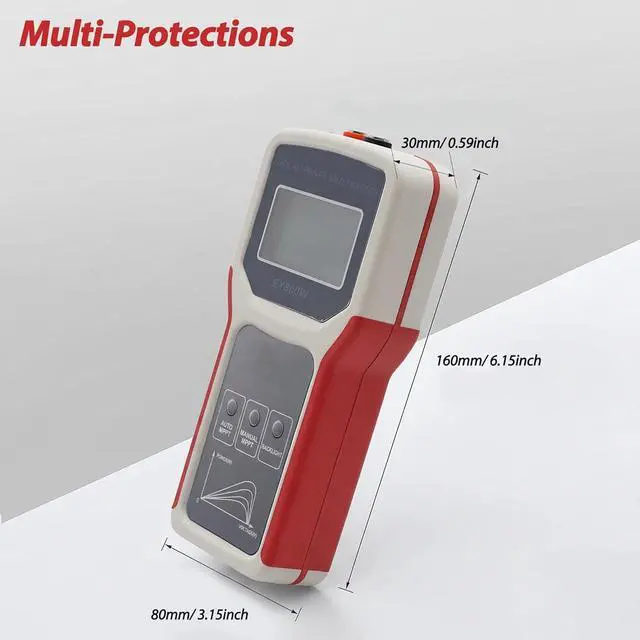

- Multi-Protections: Over voltage protection(60V), over temperature protection(60°C), over current protection(35A), reverse connection protection and over rated power protection(800W)
- Large LCD screen for clear reading even in sunlight, with full automatic VOC voltage readable in any mode

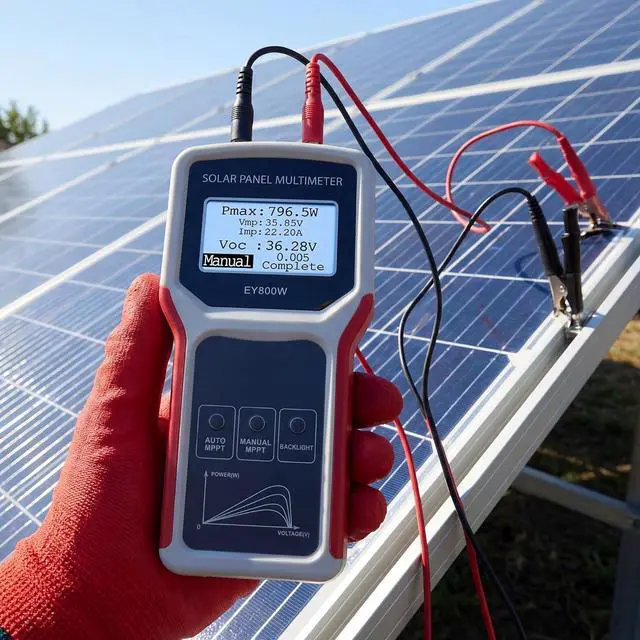

- No Battery Required: Coming with two alligator clip cables connected solar panel, this solar Panel tester is powered by solar panel. Just connect the tester to solar panel through cables, then it can work
+
+
Overview
Specs
Reviews
Specifications
Power: 5-800W
Voltage: 12-60V
Current: 0-35A
Backlit LCD screen: yes
Size: 165*80*30mm (65*31.5*11.8inch)
Weight: 450g (0.99lbs)

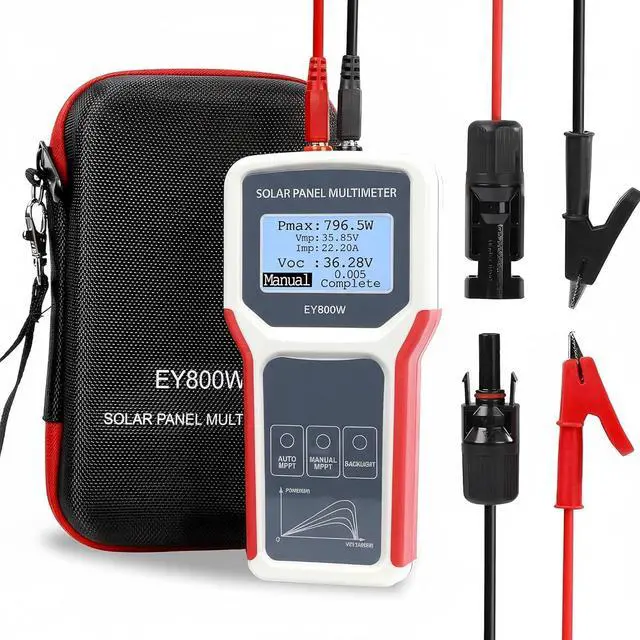

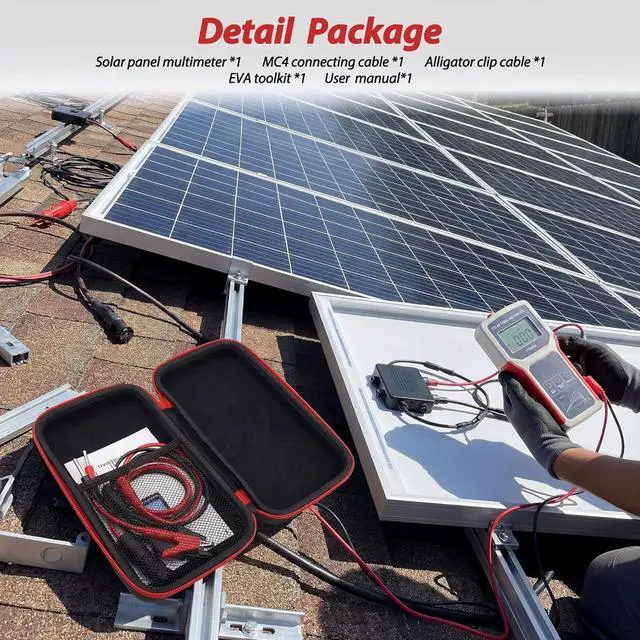

Package Included
1 x Solar Panel Multimeter
1 x MC4 Solar Quick Connector Cable
1 x Alligator Clip Cable
1 x User Manual
Importance
The total panel power should not exceed 800W.
Please disconnect the PV board from other equipment or loads before testing.
Power: 5-800W
Voltage: 12-60V
Current: 0-35A
Backlit LCD screen: yes
Size: 165*80*30mm (65*31.5*11.8inch)
Weight: 450g (0.99lbs)
Package Included
1 x Solar Panel Multimeter
1 x MC4 Solar Quick Connector Cable
1 x Alligator Clip Cable
1 x User Manual
Importance
The total panel power should not exceed 800W.
Please disconnect the PV board from other equipment or loads before testing.
