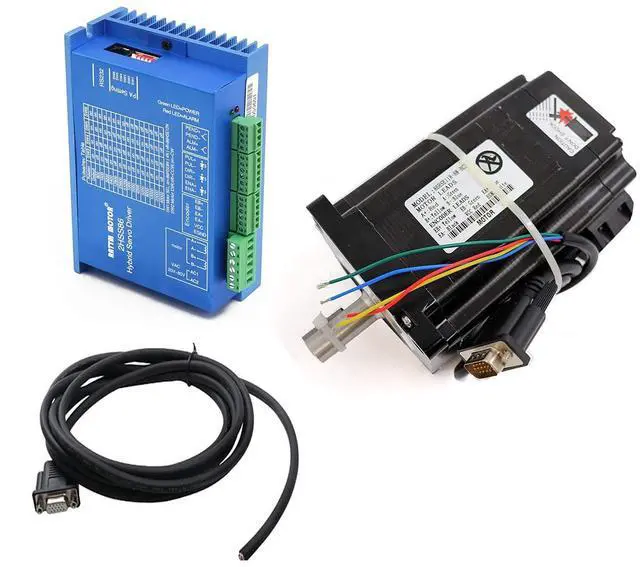

RATTMMOTOR 8Nm Nema34 Closed Loop Stepper Motor 8N.m 86x86x118mm 6A,Hybrid 2-Phase 2HSS86 Servo Motor Driver Controller Kit 30-100V DC CNC Kit with 3m Cable for CNC Router Engraving Milling Machine

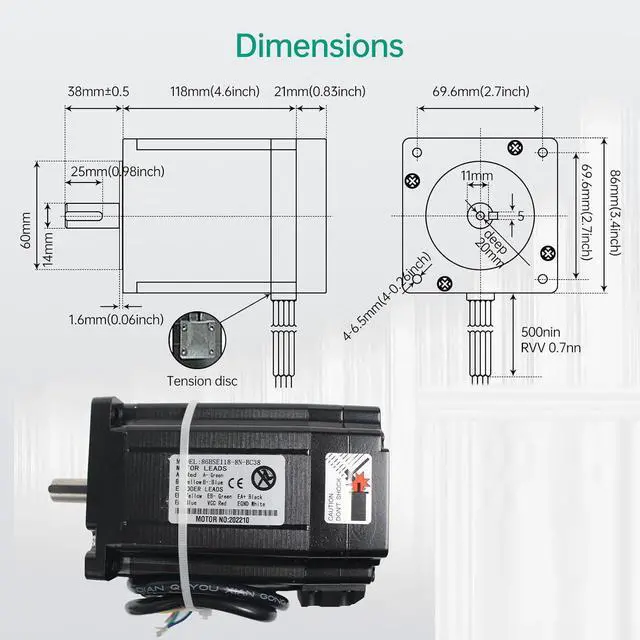

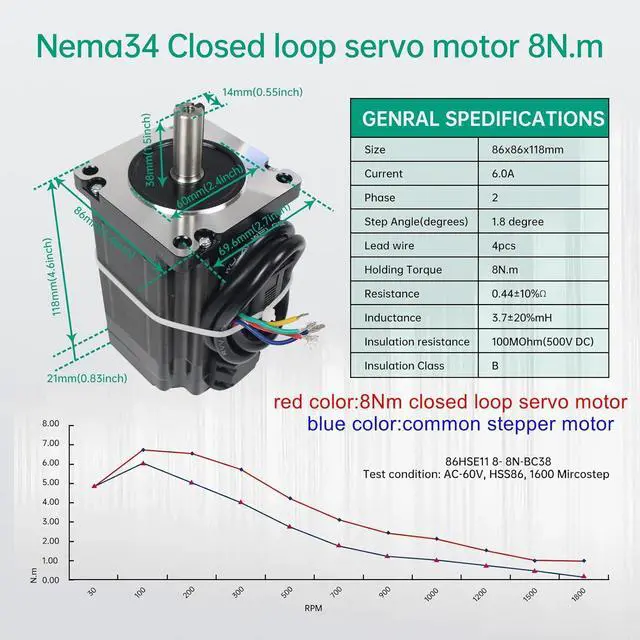

Specifications of Motor: Model is 86HSE118; Holding Torque:8N.m 1230oz-in; Rated Current:6A; Peak Current:8A; Phase:2-Phase; Size:86x86x118mm; Step Angle:1.8 degree; Motor Lead Wire: 4-Wires; Encoder lines:1000; Shaft diameter: 14mm

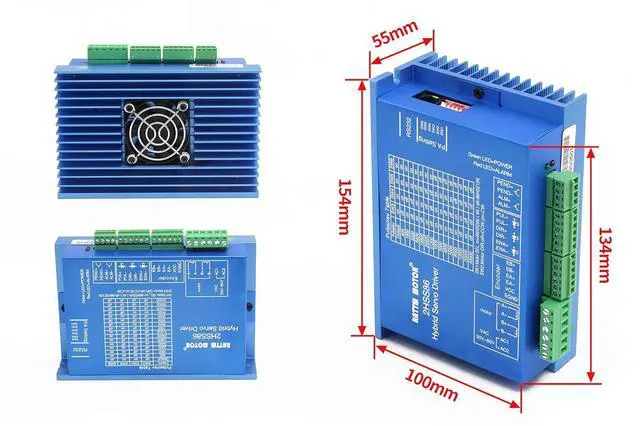

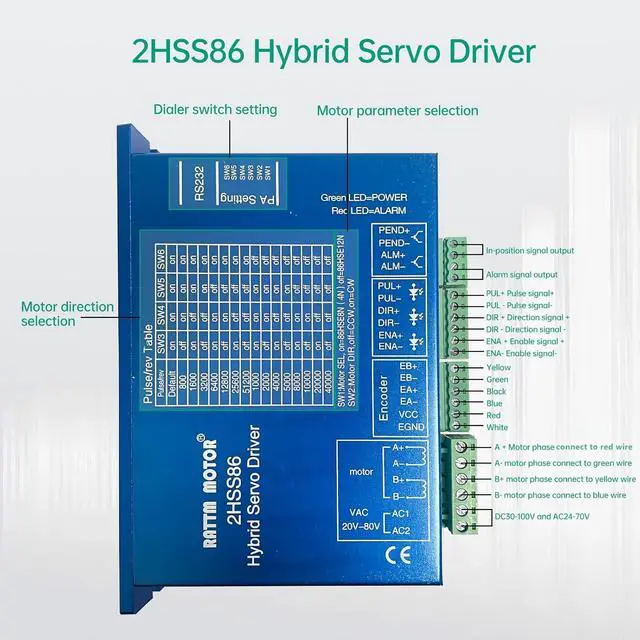

Specifications of Driver: Model is 2HSS86; Type:2-Phase Hybrid Stepper Servo Driver; Frequency:0-200KHz; Insulation resistance:>=500M; Voltage: AC 24-70V or DC 30-100V input

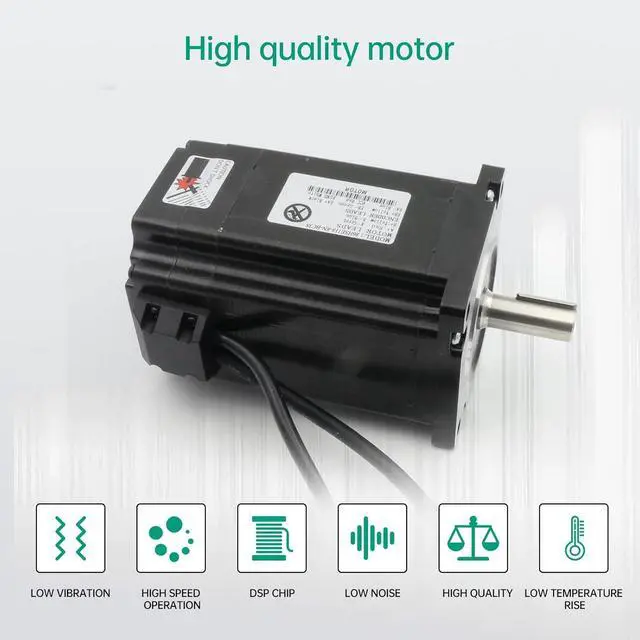

Advantages:Stepper motor closed loop system,never lose step; The stepper motor control has a new generation of 32-bit DSP; The vector control technology can ensure the accuracy of the motor; Improve motor output torque and working speed; Automatic current adjustment based on load; Pulses response frequency can reach 200KHZ; 16 kinds microsteps choice,highest 51200 microsteps/rev
More Functions: It supports over-current protection, over-voltage protection, position outside the tolerance protection; The build-in place in position and alarm output signal can help the upper monitor to monitor and control,the function of position ultra difference alarm can ensure the machine work safely
Widely used: Closed loop stepper system can be applied to all kinds small automatic equipment and instrument;Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, graph plotter, cnc machine, automatic assembly equipment and so on;This motor driver kit fits all types of machine load conditions including pulley and low stiffness pulley without adjusting the gain parameters
