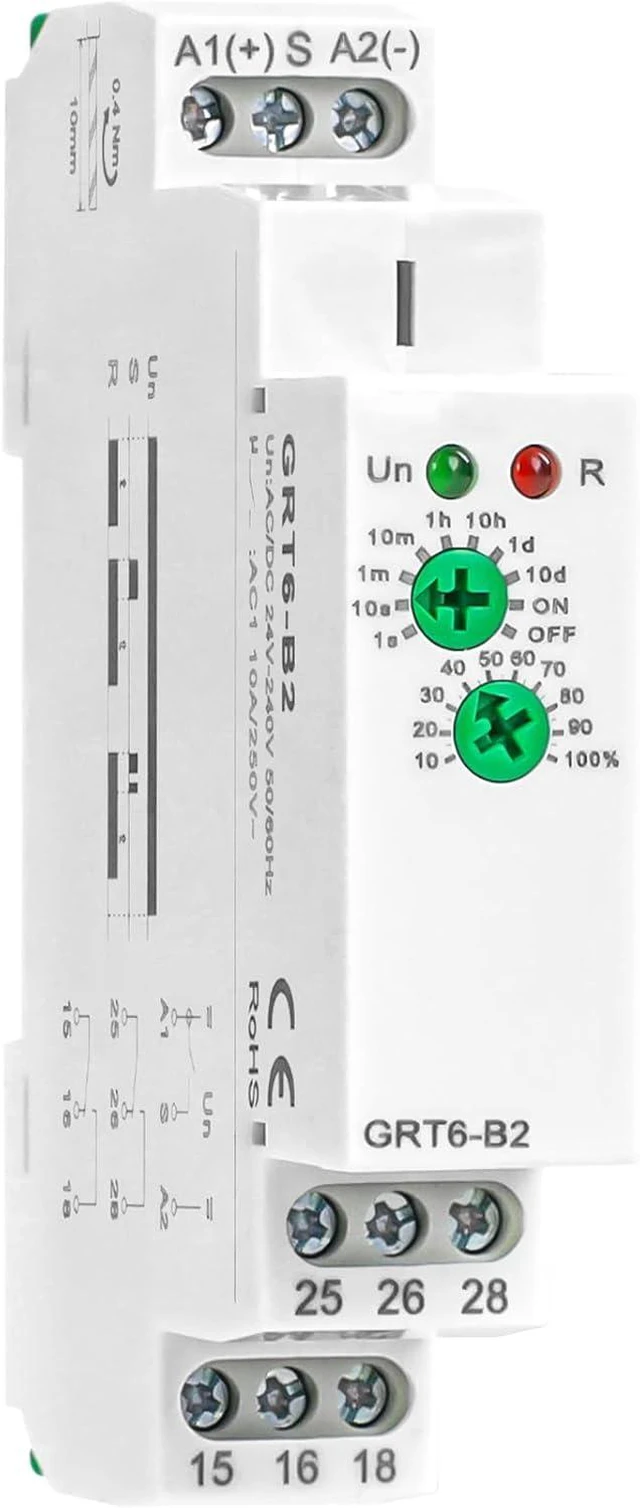

Time Relay 10A Adjustable Smart Relay, IGEYAPA Delay Turn Off Electronic Timer in Din Rail, 0.1s-10 Days Wide Range Delay Factory Automation Time Universal Voltage GRT6 B2 AC DC 24V 240V

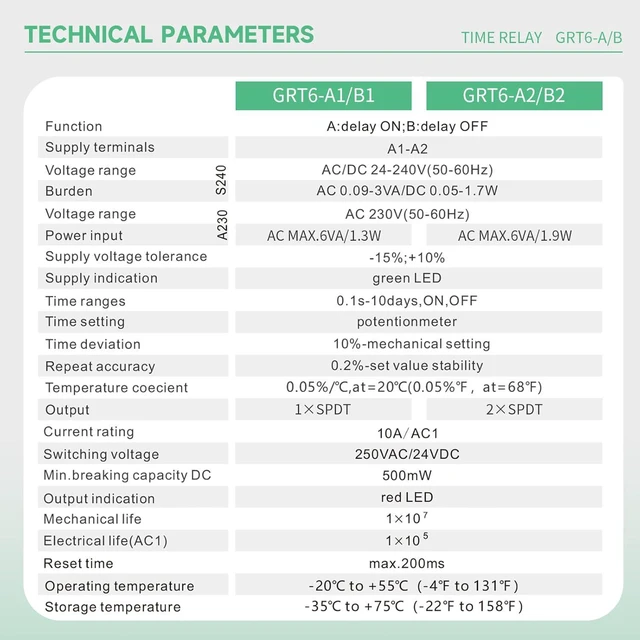

Function and application:24v-240V timer relay, preset the machine to work for a predetermined time and then turn off the time. It has a wide delay setting range of 0.1 seconds to 10 days, a wide working voltage of ac dc 24-240v (50-60Hz), output contact: 2SPDT (2NO 2NC), rated current is 10A. This ac dc 24-240V timer delay relay can be used in industrial equipment, lighting, manufacturing industries to accurately control the delay time of changing lighting, heating, motors, machines, etc

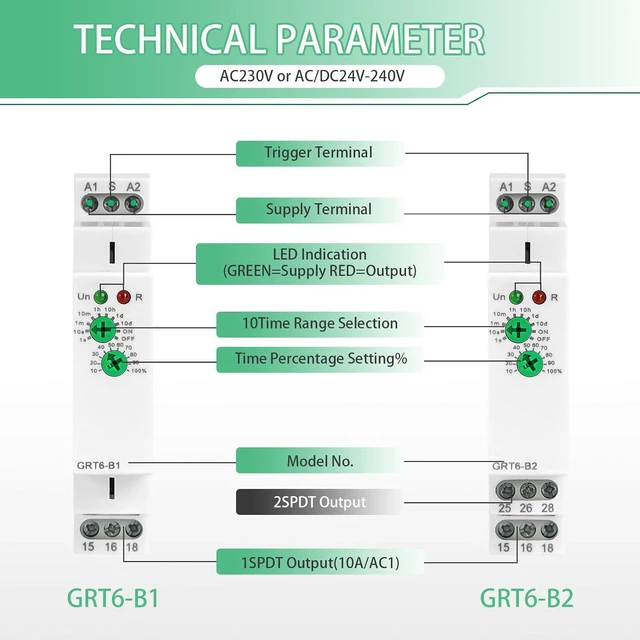

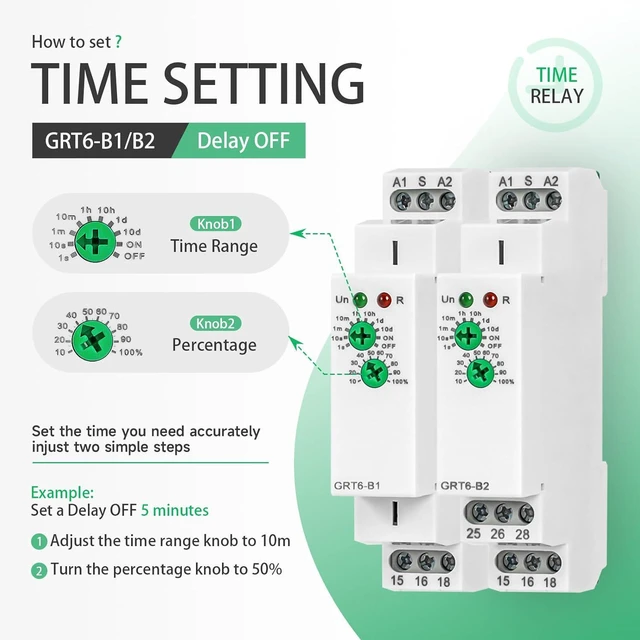

INDICATOR BUTTON: The working status of the delay relay is indicated by the LED indicator: the green LED indicator is always on (power on), the green LED indicator is off (power abnormality); the red LED indicator is on (indicating the start of work), the red LED indicator is off (indicating the stop of work). If you want to set the device to shut down after working for 5 days, please adjust the first knob of this delay relay to 10 days and the second knob to 50%. Then the terminal will disconnect the circuit and stop working after working for 5 days

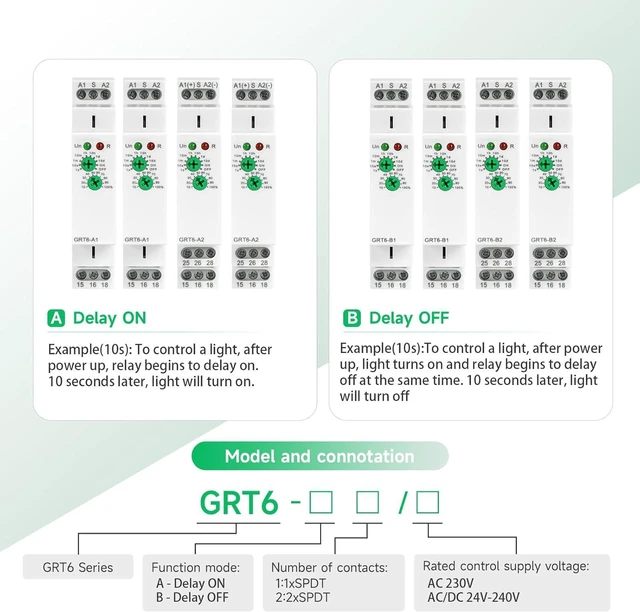

Model of IGEYAPA GRT6 Time Relay: 1. GRT6-A: Delay opening relay; GRT6-B: Delay closing relay; GRT6-SAsymmetric cycle timer relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT6-M: Multi functional time relay, covering GRT6 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON And function E as shown in the figure, F,G,H,I,J

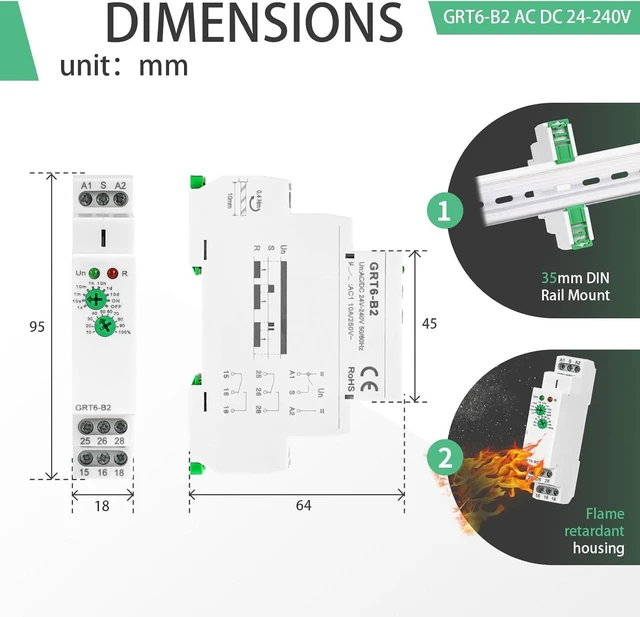

DESIGNED TIME RELAY: The GRT6 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CECBRoHS. The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time
