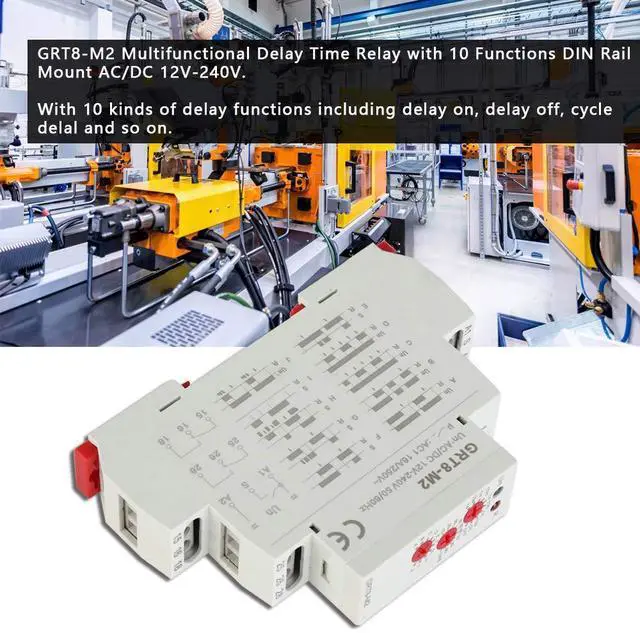

GRT8-M2 Time Delay Relay 10 Functions, DIN Rail Mount Timer Relay AC/DC 12V-240V for Industrial Control (35mm DIN Rail)
- Multifunctional Delay Time Relay: This is a multifunctional time relay and time delay can be set by panel knob. With 10 kinds of delay functions including delay on, delay off, cycle delal and so on. Super wide time delay setting range of 0.1s - 10days.
- Mounting Method: With super small volume, this relay can be mounted on 35mm DIN rail.
- Rated power supply voltage: AC/DC 12V-240V(50-60Hz). Power consumption: AC0.09-3VA/DC0.05-1.7W. Repeated accuracy: 0.2%. Output contact: 2 x SPDT, 250VAC/24VDC. Minimum switching power: 500mW.
- Power Indicator: Relay working status is indicated by LED indicators.
- Application: This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.
+
+
Overview
Specs
Reviews
Multifunctional Delay Time Relay: This is a multifunctional time relay and time delay can be set by panel knob. With 10 kinds of delay functions including delay on, delay off, cycle delal and so on. Super wide time delay setting range of 0.1s - 10days.
Mounting Method: With super small volume, this relay can be mounted on 35mm DIN rail.
Rated power supply voltage: AC/DC 12V-240V(50-60Hz). Power consumption: AC0.09-3VA/DC0.05-1.7W. Repeated accuracy: 0.2%. Output contact: 2 x SPDT, 250VAC/24VDC. Minimum switching power: 500mW.

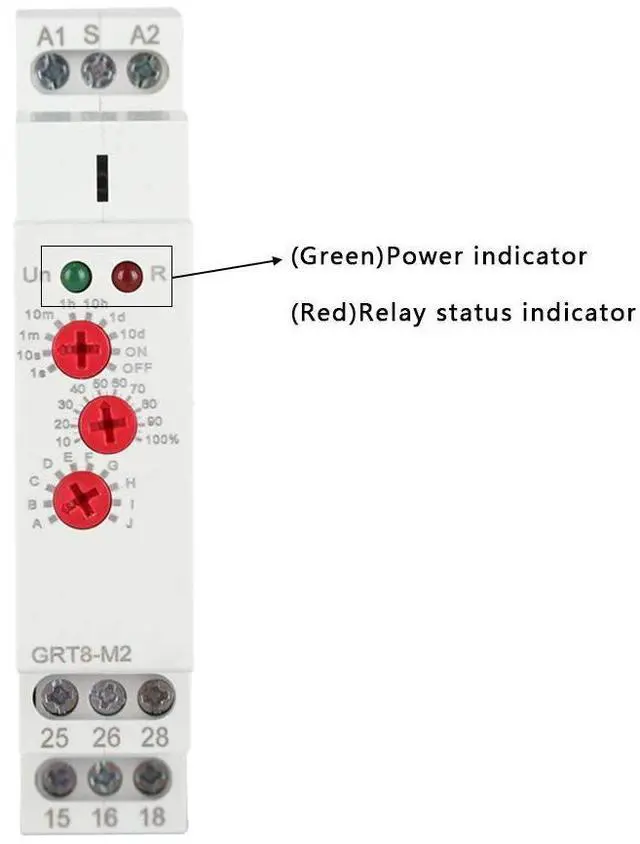

Power Indicator: Relay working status is indicated by LED indicators.
Application: This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.
Mounting Method: With super small volume, this relay can be mounted on 35mm DIN rail.
Rated power supply voltage: AC/DC 12V-240V(50-60Hz). Power consumption: AC0.09-3VA/DC0.05-1.7W. Repeated accuracy: 0.2%. Output contact: 2 x SPDT, 250VAC/24VDC. Minimum switching power: 500mW.
Power Indicator: Relay working status is indicated by LED indicators.
Application: This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.
