DC 10-30V 6.6A 42 57 86 Stepper Motor Driver Controller Integrated Board Forward/Reverse Pulse Speed Angle Control Module PLC Serial Communication for NEMA 17 23 Motor

DC 10-30V 6.6A 42 57 86 Stepper Motor Driver Controller Integrated Board Forward/Reverse Pulse Speed Angle Control Module PLC Serial Communication for NEMA 17 23 Motor

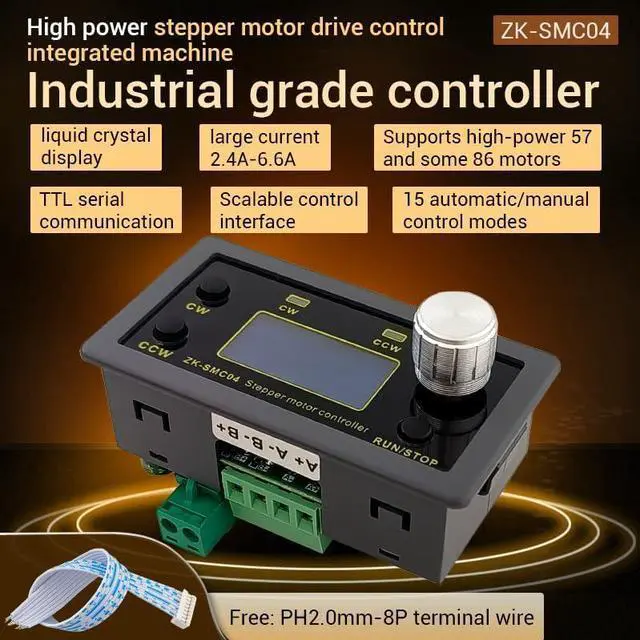

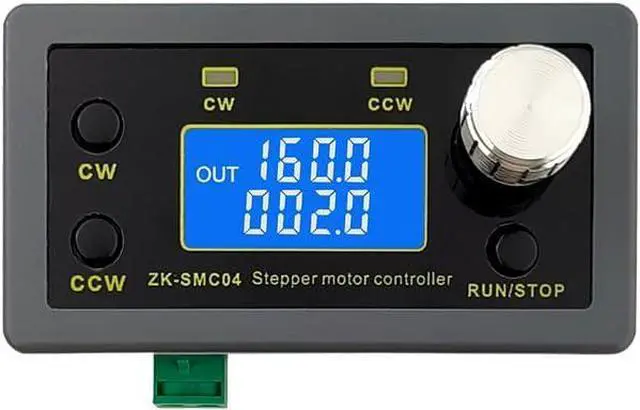

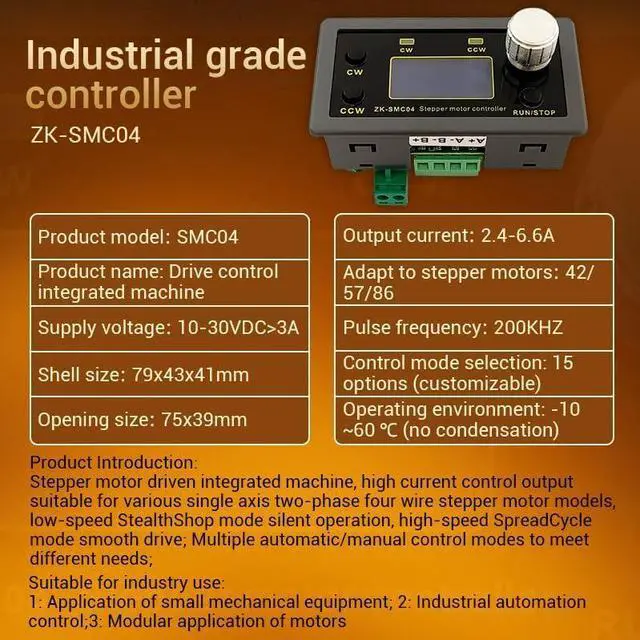

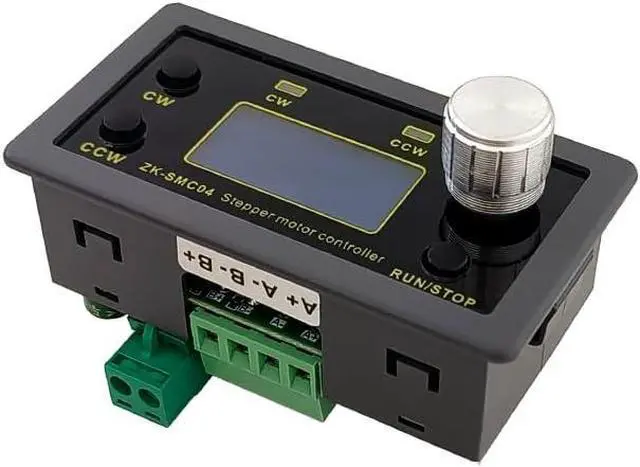

Product model: ZK-SMC04 stepper motor drive + control integrated machine
Adapt motor: 42, 57, 86 stepper motors
Power supply range: DC 10-30V universal,Driving capability: Peak 6.6A,Pulse frequency: Up to 200KHZ
Remote communication control: TTL serial port
Product size: 79x43x41mm, recommended hole size 75x39mm

Overview

Specs

Reviews

DC 10-30V 6.6A 42 57 86 Stepper Motor Driver Controller Integrated Board Forward/Reverse Pulse Speed Angle Control Module PLC Serial Communication for NEMA 17 23 Motor
Product model: ZK-SMC04 stepper motor drive + control integrated machine
Adapt motor: 42, 57, 86 stepper motors
Power supply range: DC 10-30V universal,Driving capability: Peak 6.6A,Pulse frequency: Up to 200KHZ
Remote communication control: TTL serial port
Product size: 79x43x41mm, recommended hole size 75x39mm
