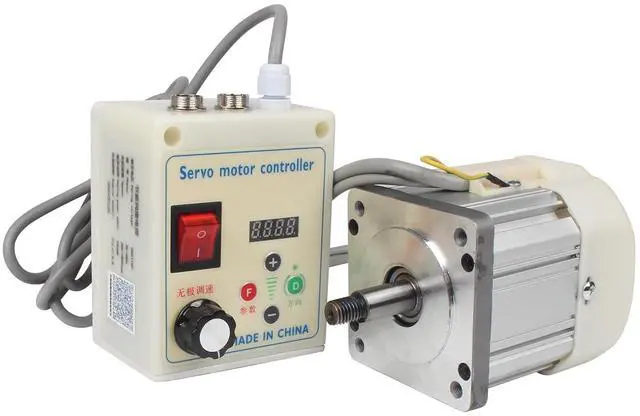

RATTMMOTOR 2200W Permanent Magnet DC Brushless Servo Motor 200-4500RPM 6.85N.m+Servo Motor Speed Controller for Woodworking Machine/Lathe/Drilling and Tapping Machine/Reducer/Belt Sander (110V)

Motor ParametersPower range: 2200w; Motor pole pairs: 8 pairs; Input frequency: 50-60hz; Motor category: permanent magnet brushless servo motor;Insulation class: F class; Speed range: 200-4500 rpm; Control method: turn on the power, adjust the speed with the knob; Protection mode: overcurrent, overvoltage, short circuit protection, locked rotor protection.

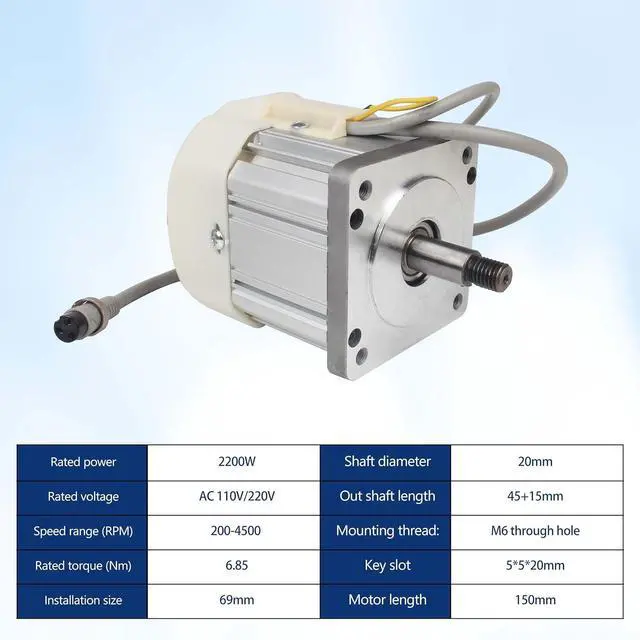

Motor SizeRated voltage: DC 110V 50-60Hz; Rated torque: 6.85Nm ; Installation size: 69mm; Out shaft length: 45+15mm; Mounting thread: M6 through hole; Key slot: 5*5*20mm; Shaft diameter: 20mm; The motor is 20mm threaded shaft, can be assembled with synchronous belt pulley, triangular belt pulley, support the addition of ER special collet.

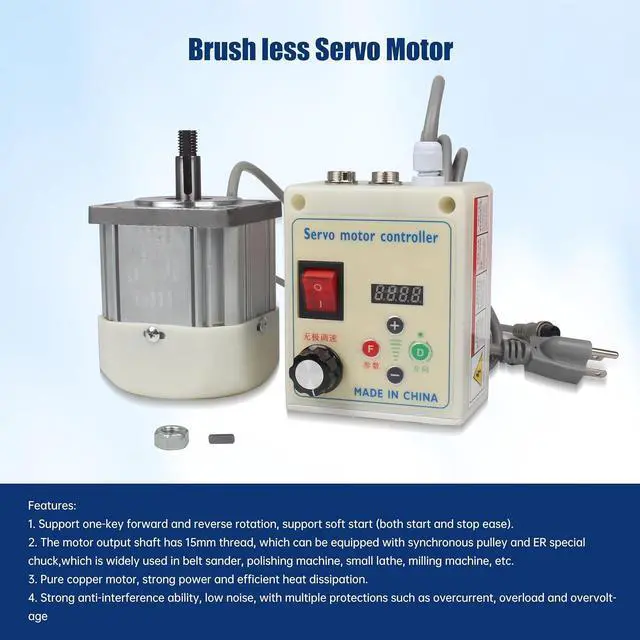

Simple IntroductionsBrushless servo control system, support a key forward and reverse, support for remote control, boot real-time display speed, that is, start and stop, can also be soft start (start slowly, stop also slow and) frequent forward and reverse start, according to the need to set the speed, knob speed start and stop, switch speed start and stop, analog start and stop speed, PLC-485 standard communication interface, the motor for the 15mm threaded shaft, can be assembled with synchronous pulley, triangular belt wheel, support for the installation of ER special chuck. Triangle pulley, support the installation of ER special collet.
FeaturesPure copper motor, strong power and efficient heat dissipation; Strong anti-interference ability, low noise, with multiple protections such as overcurrent, overload and overvoltage; Adopt advanced heat dissipation design process, lower temperature rise; built-in filter, strong anti-interference ability.
Wide ApplicationsWidely used in belt sander, polishing machine medical equipment, small lathes, milling machines, automation equipment and robots to provide power control system. This industrial control system is fully enclosed does not enter the dust does not enter the foreign body, support foot pedal open control, stepless speed regulation, really suitable for DIY fans a modified power machine.
