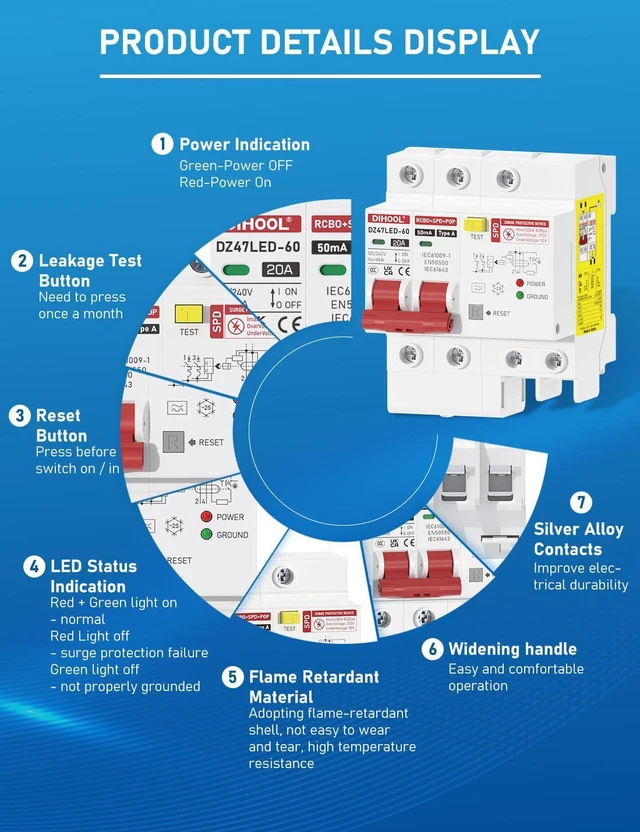

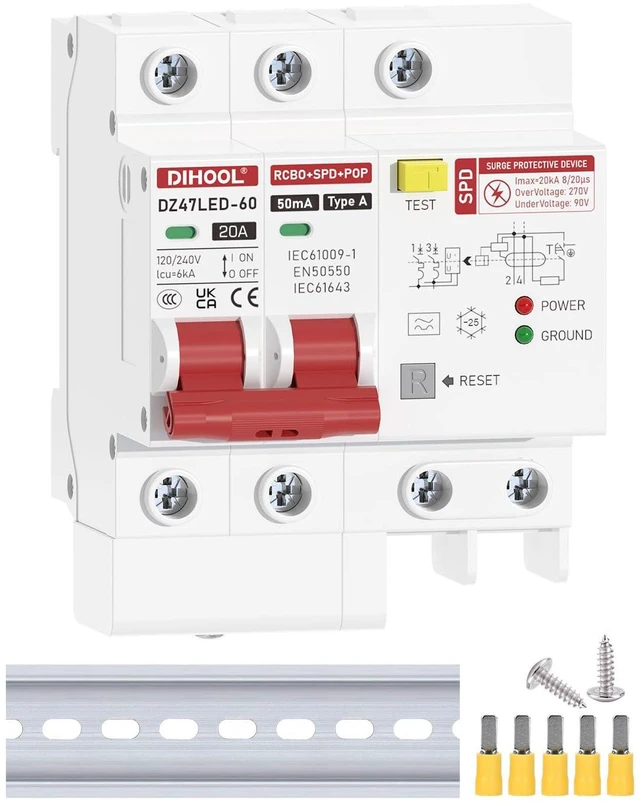

DIHOOL Ground Fault Circuit Breaker with Voltage Surge Arrester Protection, AC 20 Amp, Equipped with overvoltage and undervoltage Protector, Type A Charging Protection

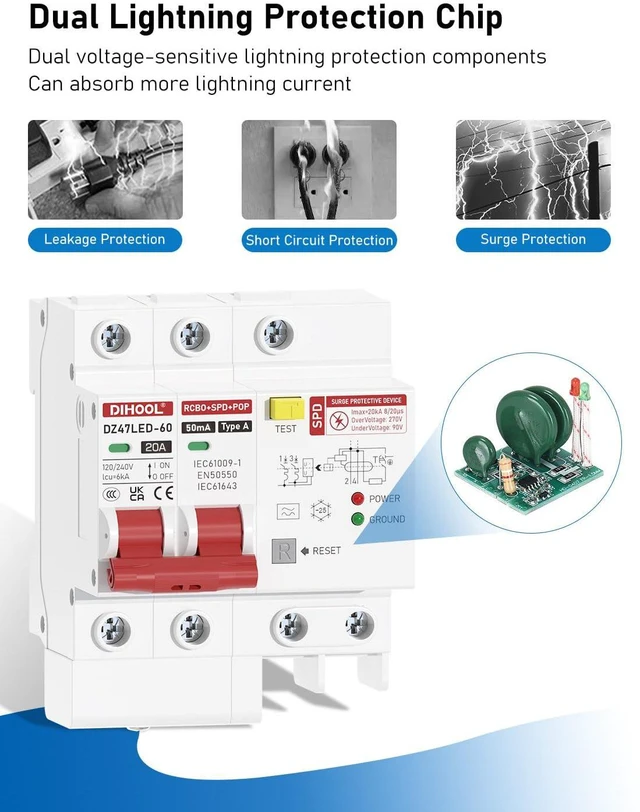

- 6 protection functions: overcurrent protection, overvoltage protection, lightning protection, 30mA leakage protection, short circuit protection, circuit isolation

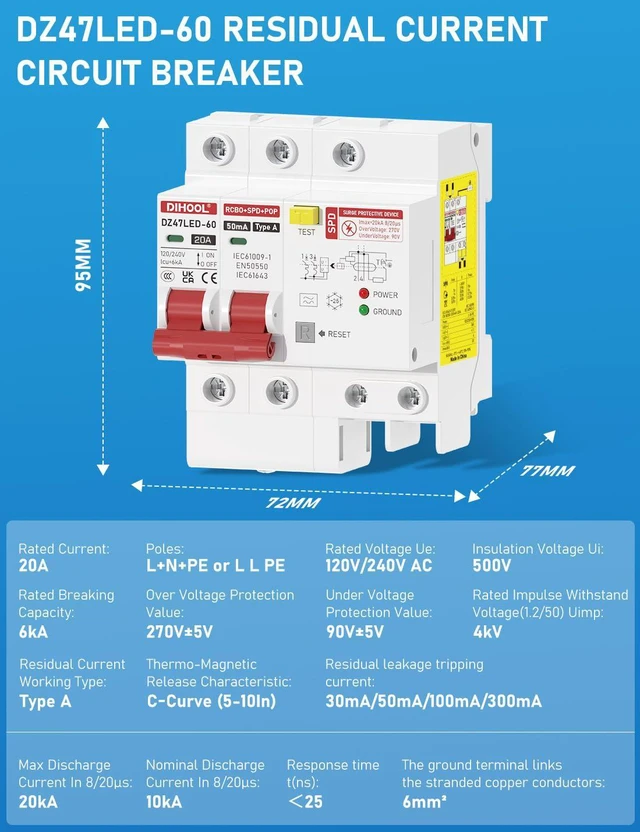

- Rated working voltage 230V, rated current 20Amp, maximum voltage 500V, lightning protection Type 2 20kA,Leakage tripping current 30mA

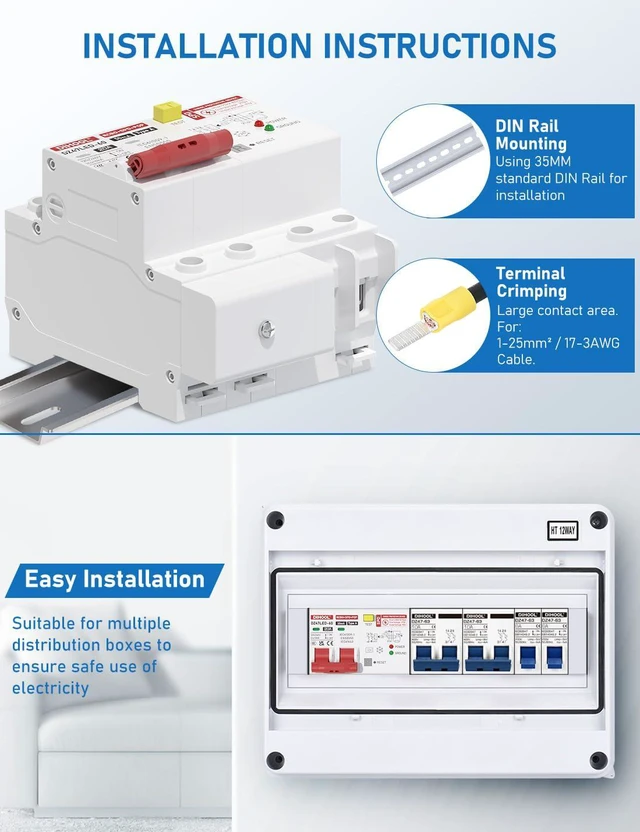

- Installation Method: 35MM DIN Rail, Product Size: 72MM x 95MM x 77MM, With 5pcs Terminals

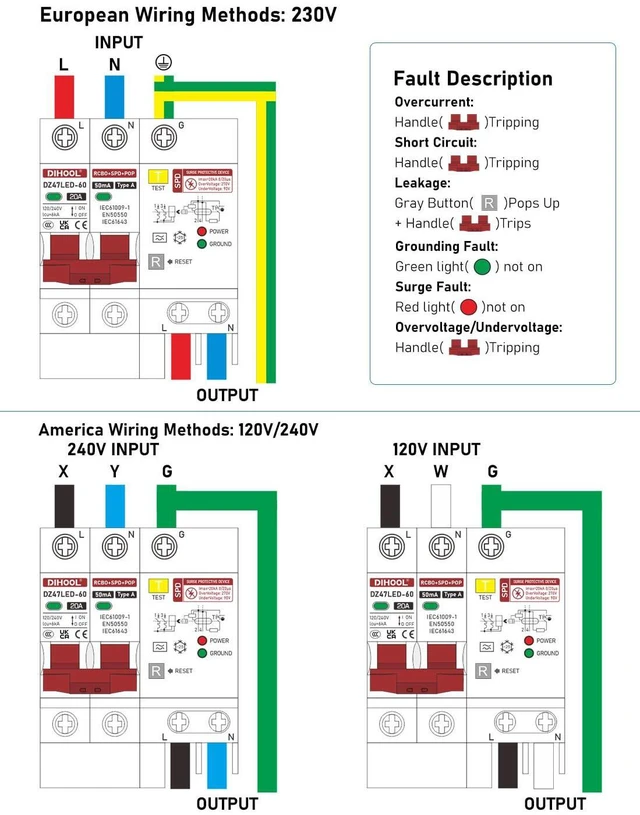

- After the circuit breaker wiring is completed, open the handle, and the red LED light and green LED light will light up to indicate normal operation. After powering on, press the T button to test the leakage function
- No lightning strikes, Electrical Durability 2000 times, Mechanical Durability 10000 times. Shell flame retardant
+
+
Overview
Specs
Reviews
6 protection functions: overcurrent protection, overvoltage protection, lightning protection, 30mA leakage protection, short circuit protection, circuit isolation
Rated working voltage 230V, rated current 20Amp, maximum voltage 500V, lightning protection Type 2 20kA,Leakage tripping current 30mA
Installation Method: 35MM DIN Rail, Product Size: 72MM x 95MM x 77MM, With 5pcs Terminals
After the circuit breaker wiring is completed, open the handle, and the red LED light and green LED light will light up to indicate normal operation. After powering on, press the T button to test the leakage function
No lightning strikes, Electrical Durability 2000 times, Mechanical Durability 10000 times. Shell flame retardant
Rated working voltage 230V, rated current 20Amp, maximum voltage 500V, lightning protection Type 2 20kA,Leakage tripping current 30mA
Installation Method: 35MM DIN Rail, Product Size: 72MM x 95MM x 77MM, With 5pcs Terminals
After the circuit breaker wiring is completed, open the handle, and the red LED light and green LED light will light up to indicate normal operation. After powering on, press the T button to test the leakage function
No lightning strikes, Electrical Durability 2000 times, Mechanical Durability 10000 times. Shell flame retardant
