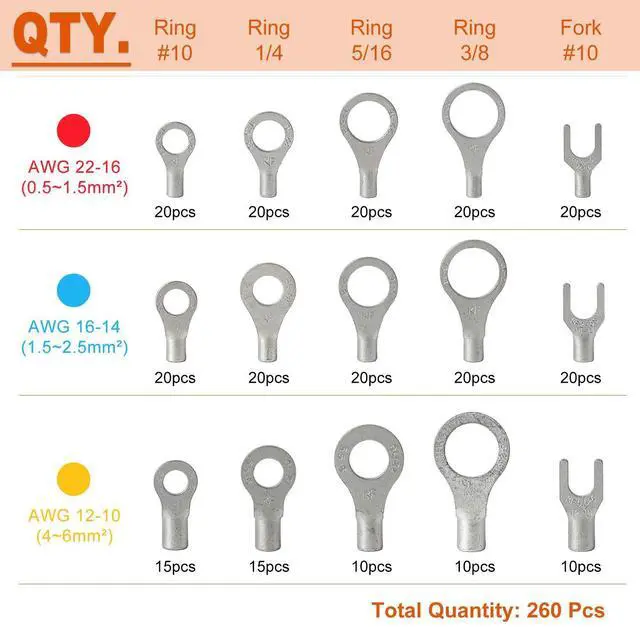

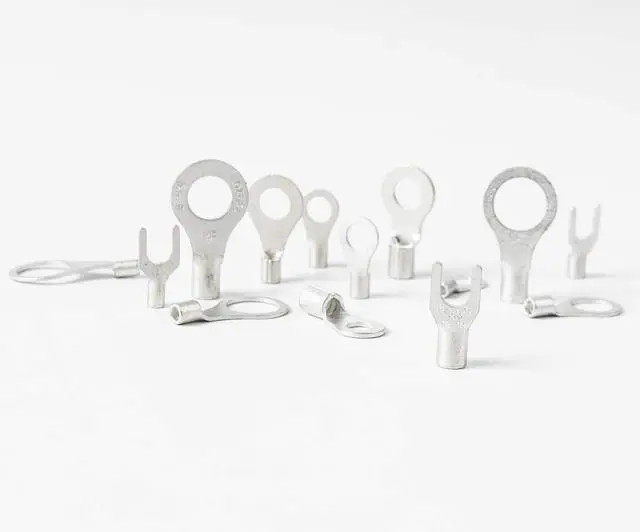

260PCS AWG 22-16 16-14 12-10 Copper Ring Fork Terminals Tin Plated Non-Insulated Electric Wire Connectors

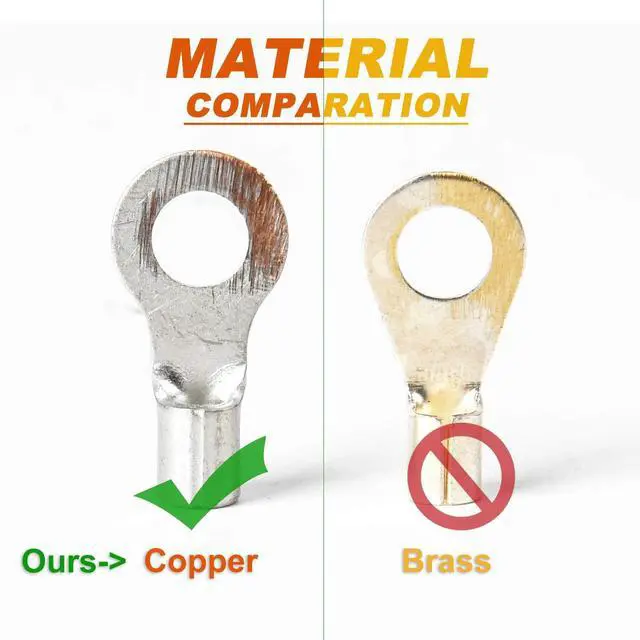

- Material: The non-insulated ring/fork terminals are made from 99.9% pure copper, the tin plated helps resist corrosion and it also makes them easy to solder.

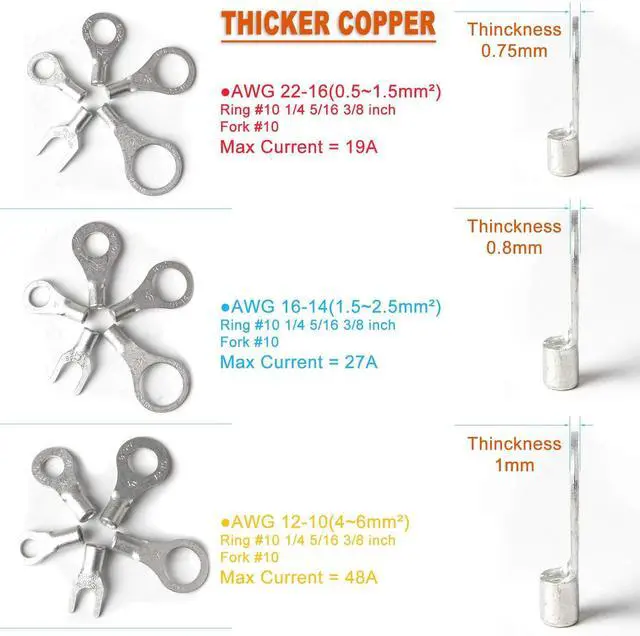

- Thickness: T=0.75mm for AWG 22-16 terminals; T=0.8mm for AWG 16-14 terminals; T=1.0mm for AWG 12-10 terminals;
- Current: 19A for AWG 22-16; 27A for AWG 16-14; 48A for AWG 12-10;

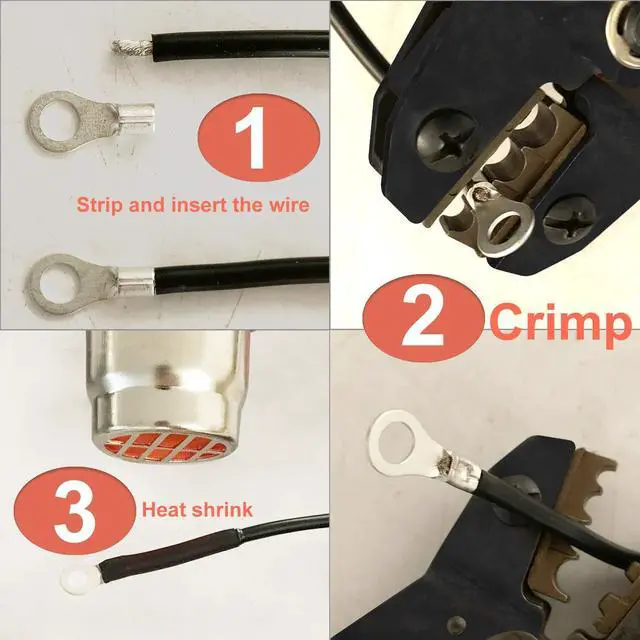

- To Use: Can be crimped with any standard low-cost crimping tool, and use heat shrink tubing to insulate to protect the connection.

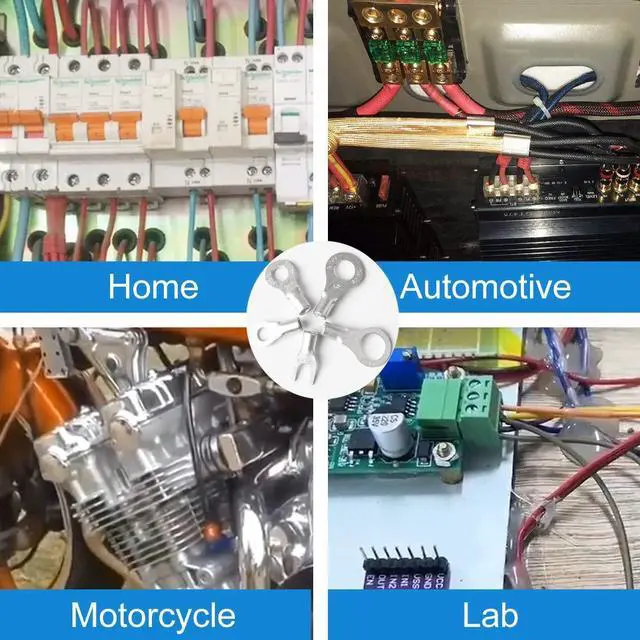

- Usage: Suitable for connecting mechanical relays or contactors to engines or other automotive circuits.
+
+
Overview
Specs
Reviews
Material: The non-insulated ring/fork terminals are made from 99.9% pure copper, the tin plated helps resist corrosion and it also makes them easy to solder.
Thickness: T=0.75mm for AWG 22-16 terminals; T=0.8mm for AWG 16-14 terminals; T=1.0mm for AWG 12-10 terminals;
Current: 19A for AWG 22-16; 27A for AWG 16-14; 48A for AWG 12-10;
To Use: Can be crimped with any standard low-cost crimping tool, and use heat shrink tubing to insulate to protect the connection.
Usage: Suitable for connecting mechanical relays or contactors to engines or other automotive circuits.
Thickness: T=0.75mm for AWG 22-16 terminals; T=0.8mm for AWG 16-14 terminals; T=1.0mm for AWG 12-10 terminals;
Current: 19A for AWG 22-16; 27A for AWG 16-14; 48A for AWG 12-10;
To Use: Can be crimped with any standard low-cost crimping tool, and use heat shrink tubing to insulate to protect the connection.
Usage: Suitable for connecting mechanical relays or contactors to engines or other automotive circuits.
