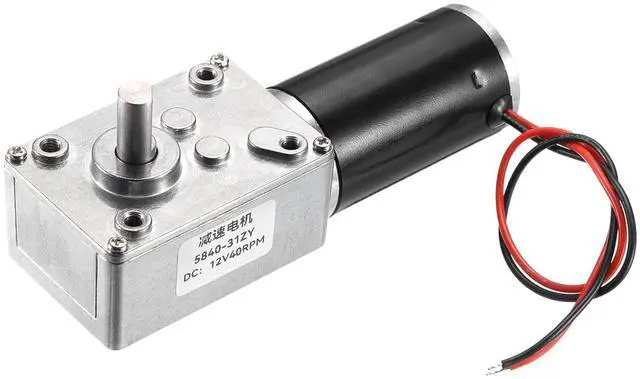

MECCANIXITY DC 12V 40 RPM Reversible Worm Geared Motor Reducer Motor 8mm D Shape Shaft High Torque Gear Box Reduction Electric Motor for Sweepers, Printers, Ovens

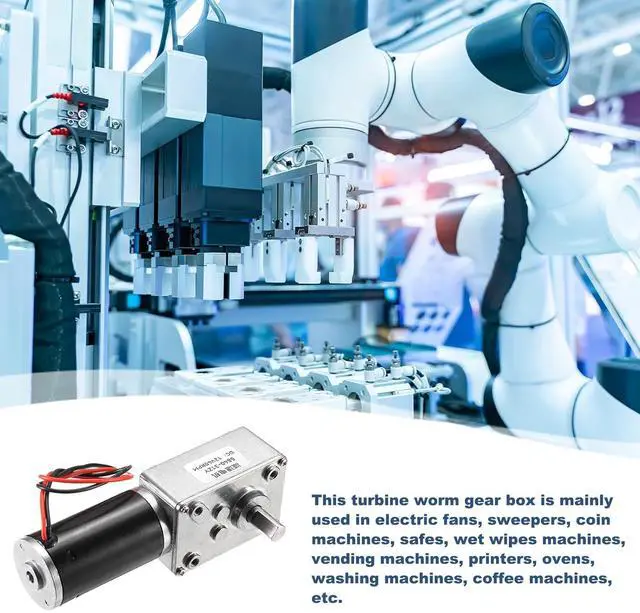

This turbine worm gear box is mainly used in electric fans, sweepers, coin machines, safes, wet wipes machines, vending machines, printers, ovens, washing machines, coffee machines, etc.

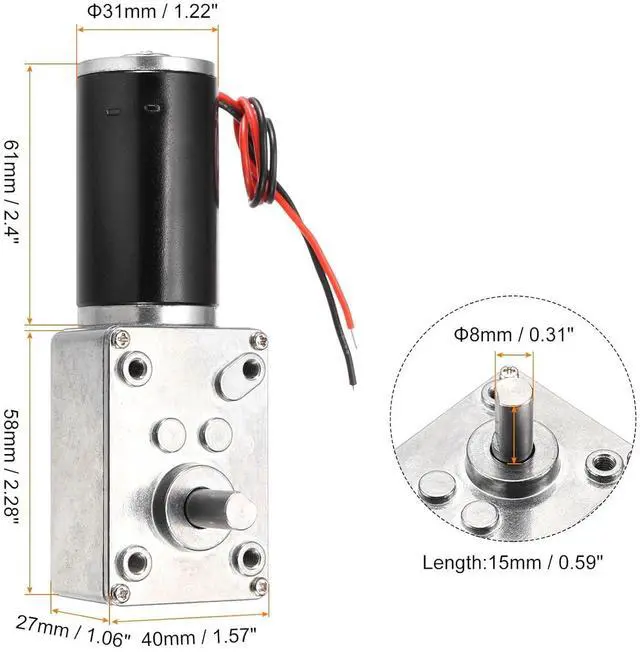

Rated Voltage: DC 12V; No-Load Output Speed : 40±10% RPM; Reduction Ratio: 1:200; Box Shaft Size: 8 x 15mm/ 0.31inch x 0.59inch(D*L); Motor Size: 60 x 31mm / 2.36inch x 1.22inch(L*W); Gear Box Size: 58 x 40 x 27mm/ 2.28inch x 1.57inch x 1.06inch(L*W*H); Total Size: 115 x 40 x 51mm / 4.5inch x 1.57inchx 2inch(L*W*H); Package Content: 1 Pack x Worm Geared Motor

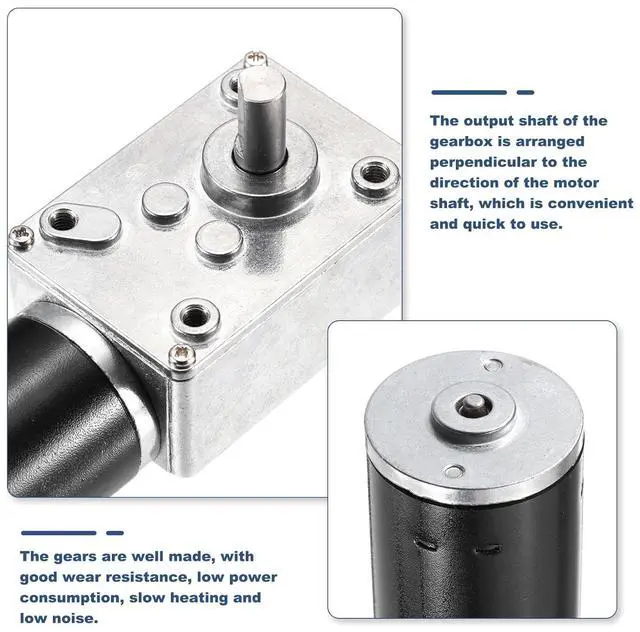

The gears are well made, with good wear resistance, low power consumption, slow heating and low noise. The output shaft of the gearbox is arranged perpendicular to the motor shaft direction, which is convenient and quick to use and can be applied to various occasions requiring special installation dimensions. The worm gear reducer motor is made of steel with good toughness and impact resistance.
Choose the appropriate voltage and shaft diameter according to your machine, after selection, you can install and use
Please confirm the voltage and shaft diameter of the motor before purchasing
