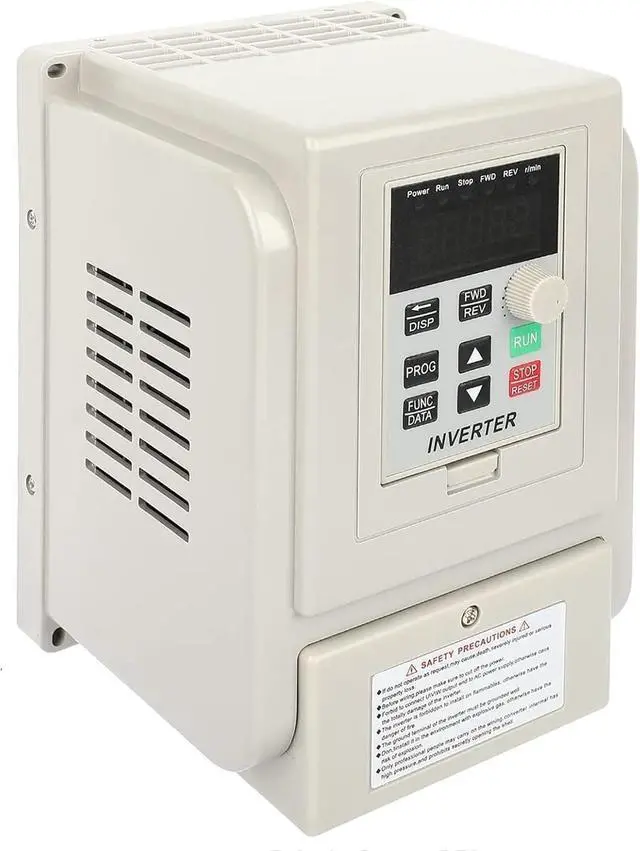

AC 220V Variable Frequency Drive Single Phase Input to 3 Phase Output Frequency Converter 2.2kw 3HP 12A VFD Inverter for Spindle Motor Speed Control

VFD Drive Inverter: Model name: Single phase input and 3 phase output vfd drive; Input voltage: 220V(+/-15%); Output voltage: 220V; Input frequency: 50/60 Hz, Output frequency: 0-400 Hz; Power Rating: 2.2 KW/12A; Rated Load: 3HP; Output Volt Adjusting Method: PWM Control.
Good Performance: This variable frequency drive utilizes a unique control method for regulating motor speed to achieve high torque, high accuracy and wide speed range drive with excellent performance.

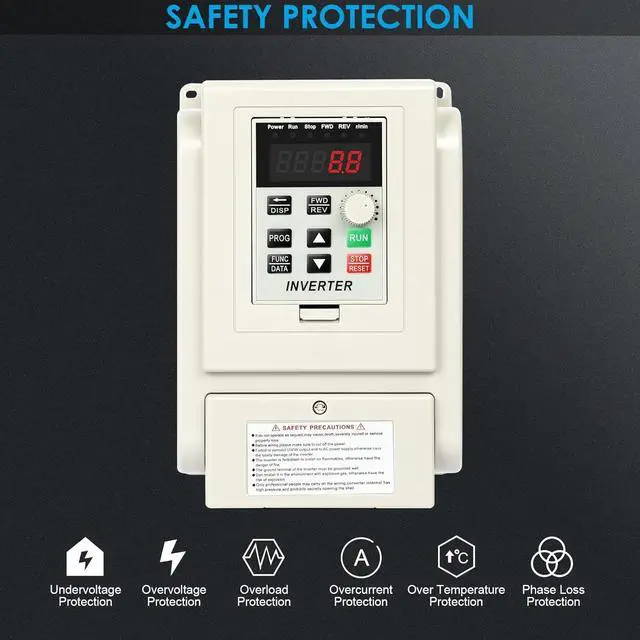

Multiple Protection Functions: In order to increase the safety performance of using this VFD inverter, we set up multiple safety protection functions. Such as over-current protection, over-voltage protection, overload protection, short-circuit protection, three anti-paint protection lines and so on. It can ensure the stable and safe operation of the machine.

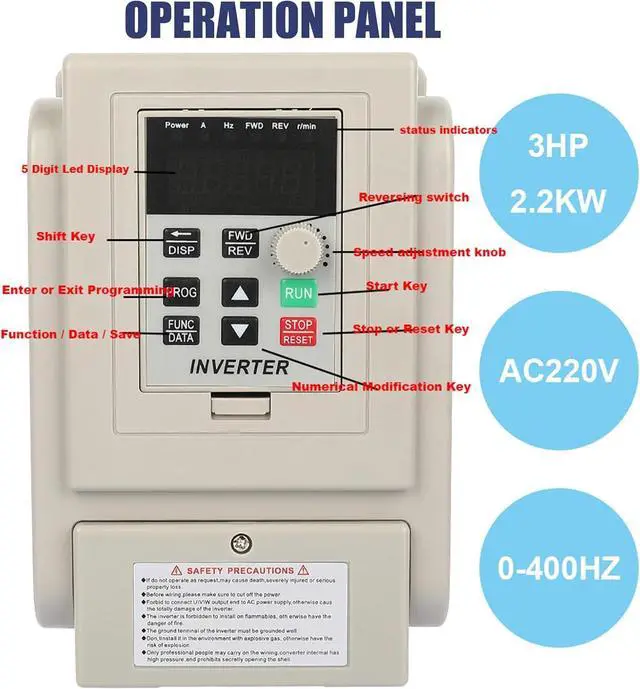

Simple Operation: The simple button design is intuitive, clear and well laid out. It also comes with a digital display screen for clear readings and easy parameter setting. It adopts screw terminals to connect wires, which is convenient for wiring and easy to operate.
Wide Range Of Applications: The main application area involves in various types of automatic control equipment, such as: Spindle Motor,Speed Control,CNC,Drill Press, HVAC, Lathe, Milling, Pumps, Conveyors, Mach3, Fan, Cooling, Compressor, Three-phase motor and other machines, etc. NOTE: your motor power should not be more than twice the power of this vfd!!
