RATTMMOTOR 3-Axis Update GRBL 1.1f CNC Controller with Emergency and Limit Switch Fuction, CNC Router Engraver Machine GRBL Controller Board with Fan Cooling for CNC Wood Router Machine

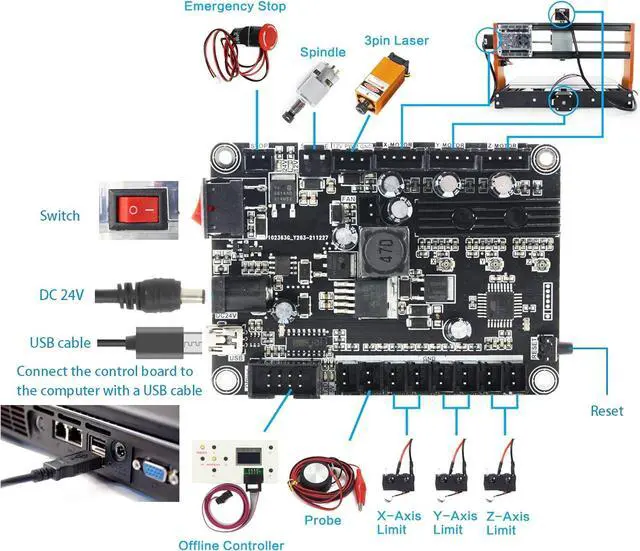

- Basic ParametersConnection:USB (USB-CH340), Input voltage:12-24VDC (recommend 24VDC), Power Interface:5.5-2.5mm DC interface, Control software:GRBL control/ Lasrrgrbl, Support system:Windows XP / Win 7 / Win 8 / Win 10 (32/64 )/ Linux. Support Stepper motor:12V, maximum current of 2A or less,is recommended within 1.5A and additional heat (any nema17 or nema23 stepper motor). Spindle PWM speed: Support,

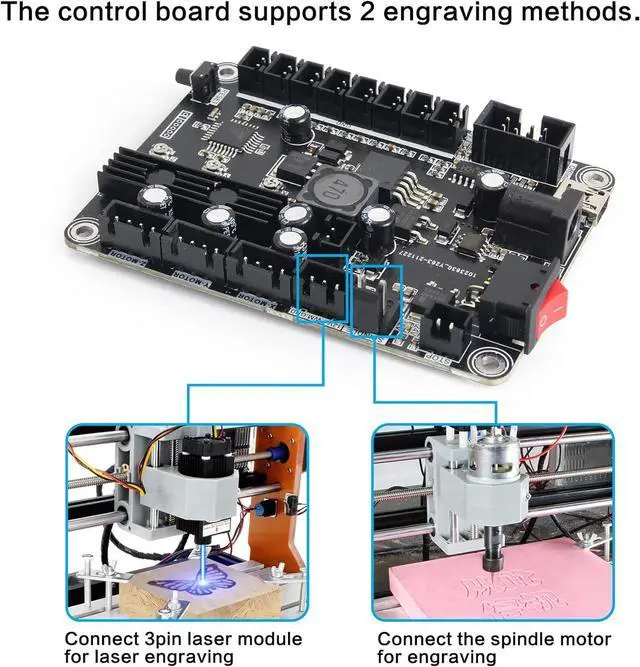

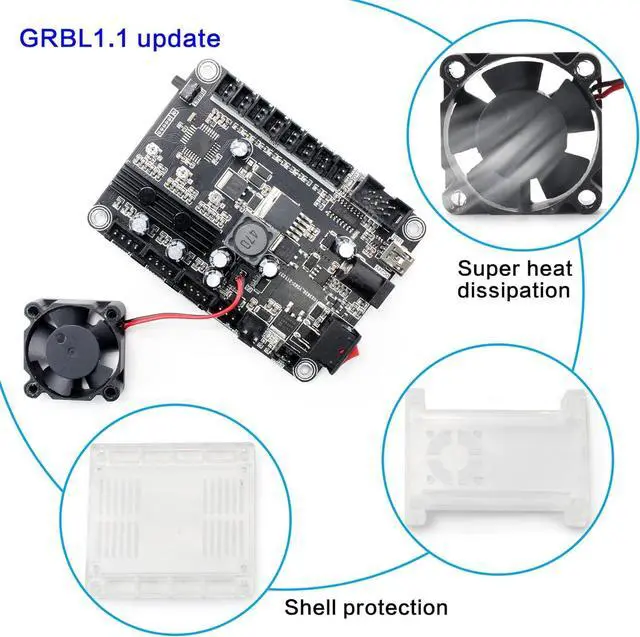

- Mutiple FunctionsMaximum support for 20000RPM spindle, Support 0.5W-20W module, Support tool setting(probe) , Support GRBL offline controller. Equipped with silent fan, good cooling effect.
- Emergency Stop Function Added an emergency stop button, during the engraving process, if the user encounters an emergency and needs to stop the engraving immediately, user can press the button to stop the operation.
- X/Y/Z axis Limit Switch FunctionAdded X/Y/Z axis limit switch, when the engraving machine moves up and down or left and right, it will stop immediately if it exceeds the formin
+
+
Overview
Specs
Reviews
Basic ParametersConnection:USB (USB-CH340), Input voltage:12-24VDC (recommend 24VDC), Power Interface:5.5-2.5mm DC interface, Control software:GRBL control/ Lasrrgrbl, Support system:Windows XP / Win 7 / Win 8 / Win 10 (32/64 )/ Linux. Support Stepper motor:12V, maximum current of 2A or less,is recommended within 1.5A and additional heat (any nema17 or nema23 stepper motor). Spindle PWM speed: Support,
Mutiple FunctionsMaximum support for 20000RPM spindle, Support 0.5W-20W module, Support tool setting(probe) , Support GRBL offline controller. Equipped with silent fan, good cooling effect.
Emergency Stop Function Added an emergency stop button, during the engraving process, if the user encounters an emergency and needs to stop the engraving immediately, user can press the button to stop the operation.
X/Y/Z axis Limit Switch FunctionAdded X/Y/Z axis limit switch, when the engraving machine moves up and down or left and right, it will stop immediately if it exceeds the forming range.
Power Switch Button FunctionAdded the power switch button, simple operation, more safety in the process of using the machine.
Mutiple FunctionsMaximum support for 20000RPM spindle, Support 0.5W-20W module, Support tool setting(probe) , Support GRBL offline controller. Equipped with silent fan, good cooling effect.
Emergency Stop Function Added an emergency stop button, during the engraving process, if the user encounters an emergency and needs to stop the engraving immediately, user can press the button to stop the operation.
X/Y/Z axis Limit Switch FunctionAdded X/Y/Z axis limit switch, when the engraving machine moves up and down or left and right, it will stop immediately if it exceeds the forming range.
Power Switch Button FunctionAdded the power switch button, simple operation, more safety in the process of using the machine.
