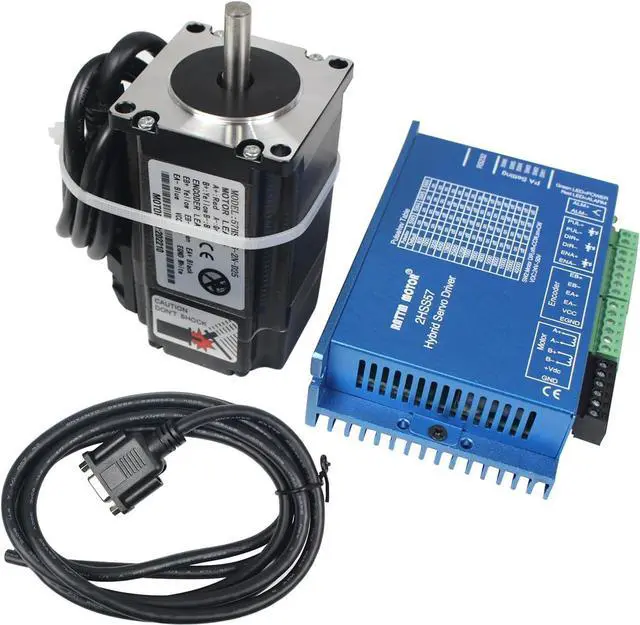

Nema23 2N.m 57 Hybrid Closed Loop Servo Motor 76mm+HSS57 Servo Driver Controller CNC Kit 24-50VDC For CNC Router Engraving Milling Machine

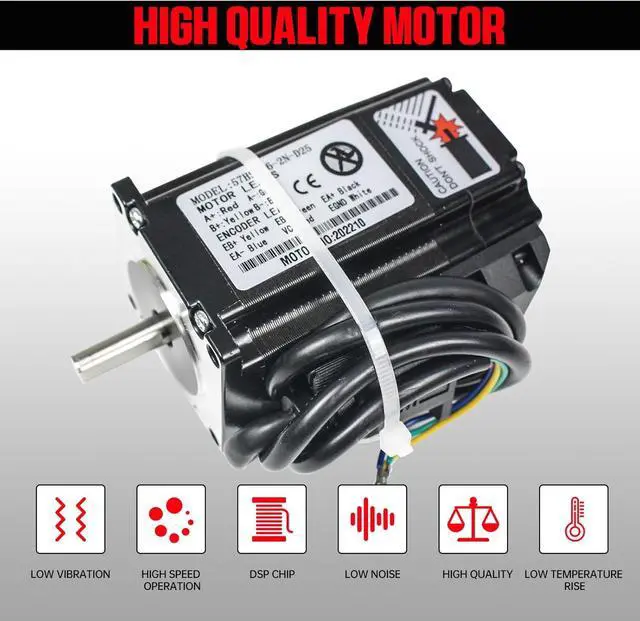

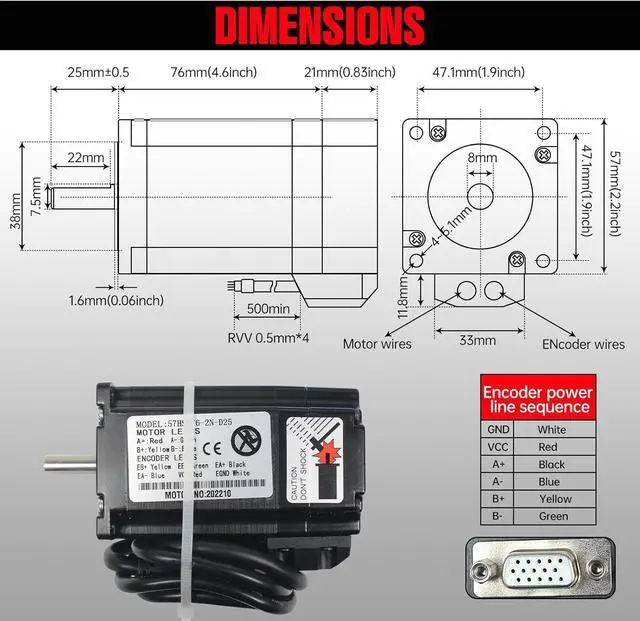

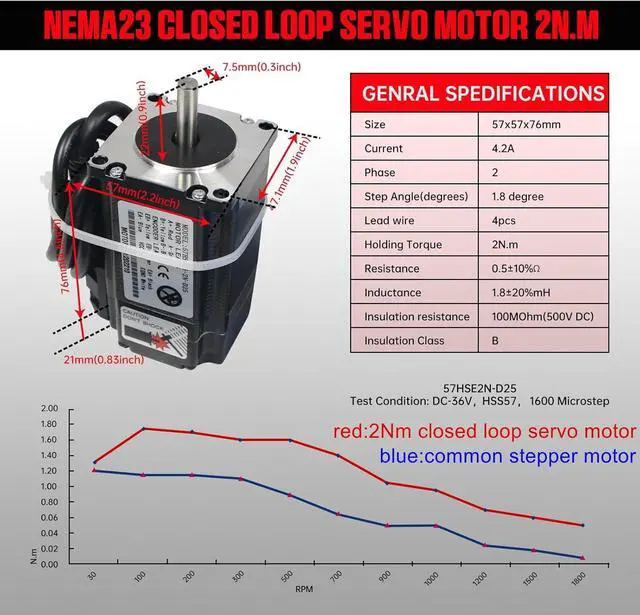

Specifications of Motor: Holding Torque: 2N.m; Current: 4.2A; Peak Current: 6A; Phase: 2; Size: 57x57x76 mm; Step Angle: 1.8 degree; Motor Lead Wire: 4-wire; Encoder lines: 1000; Insulation Class:B; Motor Weight:2.4 LB

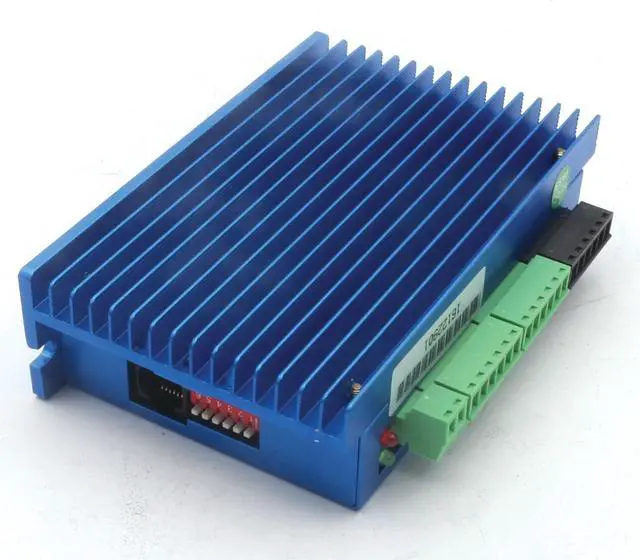

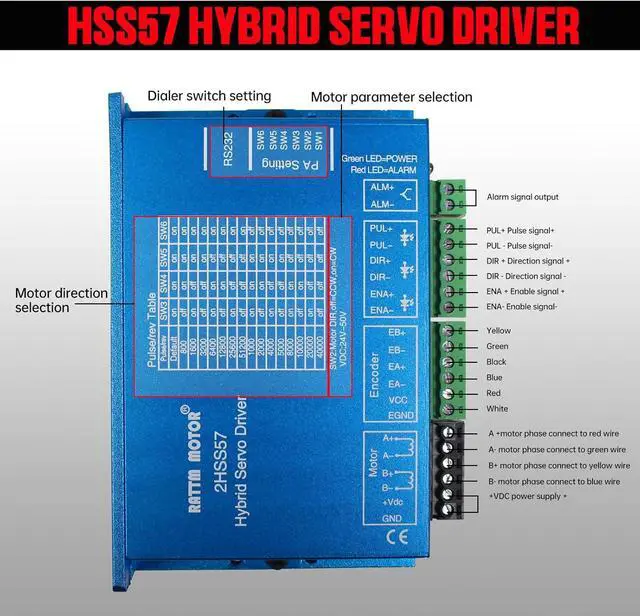

Specifications of 2HSS57 Driver: 2-Phase Hybrid Stepper Servo Driver; Frequency: 0-200KHz; Insulation resistance: >=500M; Voltage: DC 24-50V input;Pulses response frequency can reach 200KHZ; 16 kinds microsteps choice,highest 51200 microsteps/rev
Advantages: Stepper motor closed loop system,never lose step; The stepper motor control has a new generation of 32-bit DSP. The vector control technology can increase the accuracy of the motor; Improve motor output torque and working speed; Automatic current adjustment based on load
More Functions: It supports over-current protection, over-voltage protection, position outside the tolerance protection.The build-in place in position and alarm output signal can help the upper monitor to monitor and control,the function of position ultra difference alarm can ensure the machine work safely
Widely used: Closed loop stepper system can be applied to all kinds small automatic equipment and instrument,such as milling machine, engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, graph plotter, cnc machine, automatic assembly equipment and so on;This motor driver kit fits all types of machine load conditions without adjusting the gain parameters
