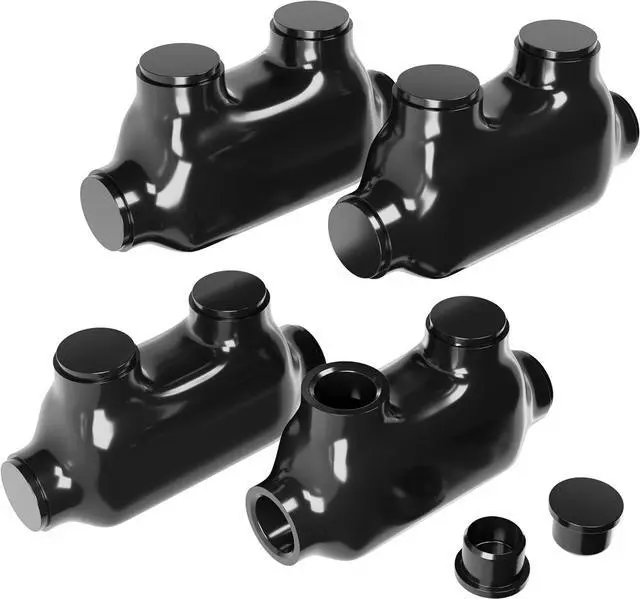

(Pack of 4) AP-10201, Black Insulated in-Line Splice Connector, 2-14 Wire Range, 2.46" L x 0.83" W x 1.4" H, Pre-Filled with Oxide Inhibitor, Easy Re-Entry, Rubber Vinyl Coating, 2 Set Screws, 4-Pack

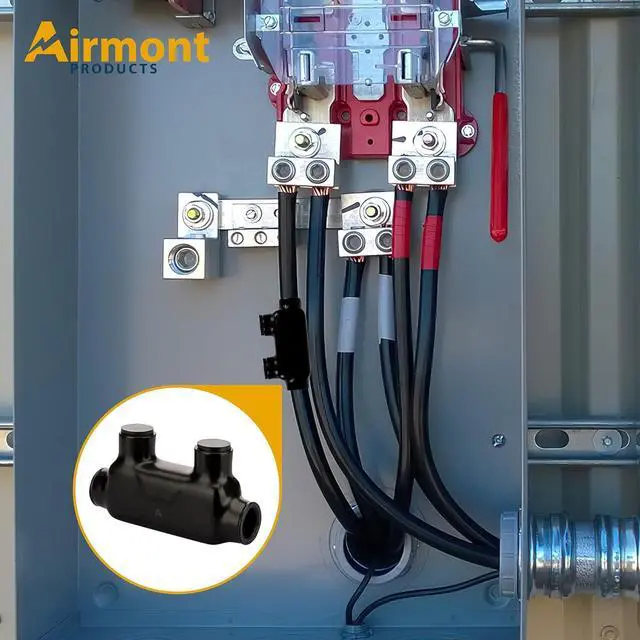

SPLICE CONNECTOR PRODUCT USE AND DESCRIPTION: AP-102 series connectors are suitable for connecting two wires or cables in-line. Used for splicing cables and can be used to replace tradition split bolt splicing for a fraction of the cost in material, time, and labor. Easy re-entry for changes, inspection, or troubleshooting, the connectors are supplied with removable access plugs over the hex screws. One wire per terminal. They are dual rated for use with copper and/or aluminum cables.

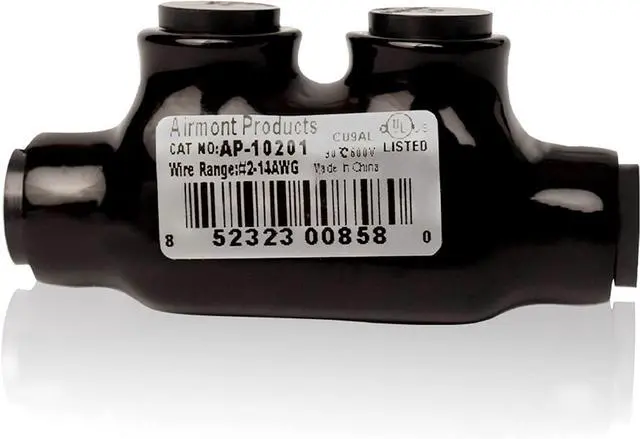

SIZE AND SPECIFICATIONS: Item # AP-10201 is designed for wire range 2-14. The screws are Allen Hex size 5/32. Outside dimensions are 2.44 Inch Length x 0.83 Inch Width x 1.40 Inch Height.
HEAVY DUTY INSULATION: Each black insulated in-line splice connector is insulated with rugged, high-dielectric rubber and vinyl coating for long-term use.
MECHANICAL CONNECTOR: The 600-volt cable conductor is 6061-T6 Aluminum CU9AL dual rated for use with copper and aluminum wires. Rated for Use with 194°F(90°C) Cables.

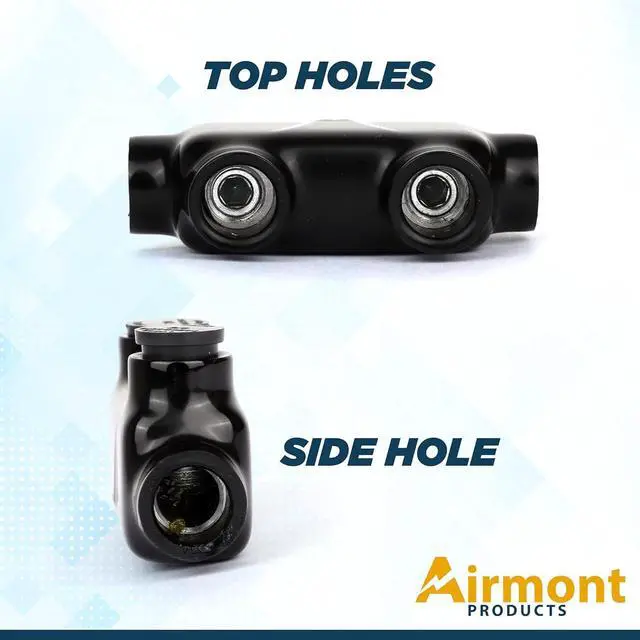

EASY RE-ENTRY: These dual-entry insulated in-line splice connectors offer easy re-entry for inspection, troubleshooting, changes, and low-cost installations. PRE-FILLED: Airmont Products black insulated in-line splice connectors are pre-filled with oxide inhibitor and offer a temperature range of -49 to 194 degrees F.
