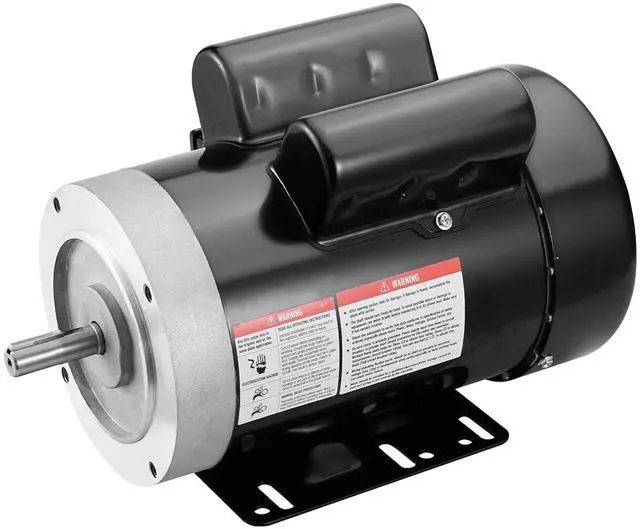

1.5HP Electric Motor, 1725 RPM, AC 115V/230V, 56C Frame, Single-Phase Motor with 5/8" Keyed Shaft, CW/CCW Rotation for Air Compressors, Agricultural Tools, and General Equipment

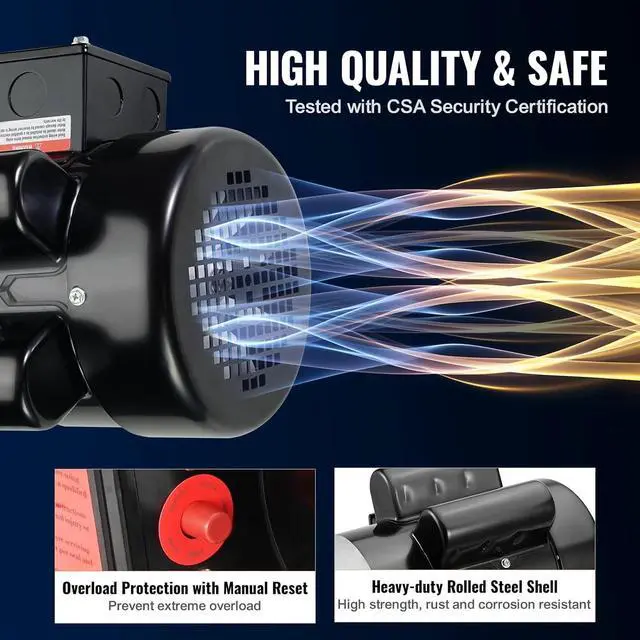

Sturdy and Reliable: Designed to meet CSA standards, this air compressor motor features a robust rolled steel casing for added strength. It is equipped with overload protection and a manual reset function, promoting extended lifespan and consistent operation.

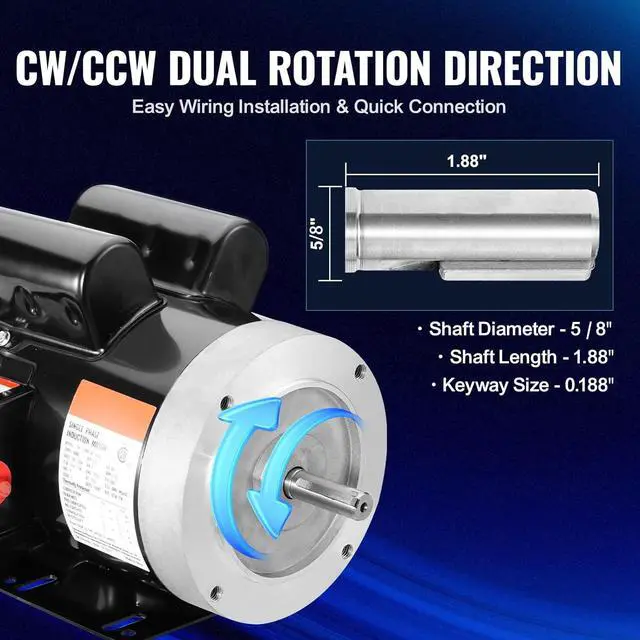

Bidirectional Rotation: This electric motor supports both clockwise and counterclockwise rotation, ensuring easy wiring setup and flexible adaptability for a wide range of uses.

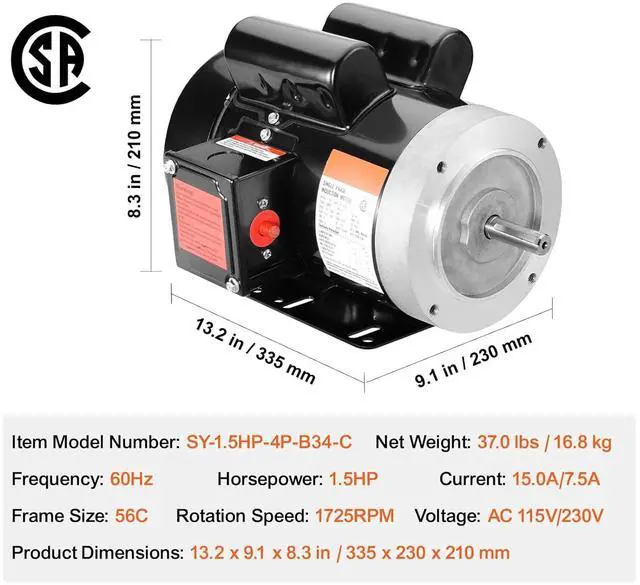

Durable Frame Design: 56C frame with a 5/8" keyed shaft, shaft length of 1.88", and a keyway measuring 0.188".

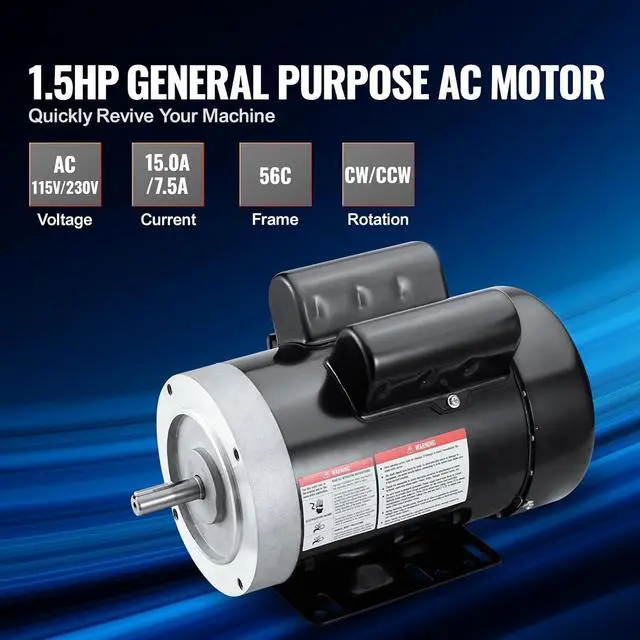

Robust Functionality: 1.5HP motor, single-phase design, full load current of 15.0/7.5A, compatible with AC 115V/230V at 60Hz, delivering a high-speed performance of 1725 RPM with a service factor of 1.15.
Versatile Applications: This 1.5HP general-purpose motor is designed for a wide range of uses, making it suitable for water pumps, farming equipment, and general machinery. It is an excellent choice for DIY tasks and replacement projects, offering reliable and adaptable performance for diverse requirements.
