Hiorucet 326628-763 Inducer Motor, Furnace Draft Inducer Motor Blower Assembly Kits for Carrier Bryant Payne 326628-763, HC21ZE122A, HC21ZE127A, 326634-401, J238-112-11202, J238-150-15217, 347822-763.

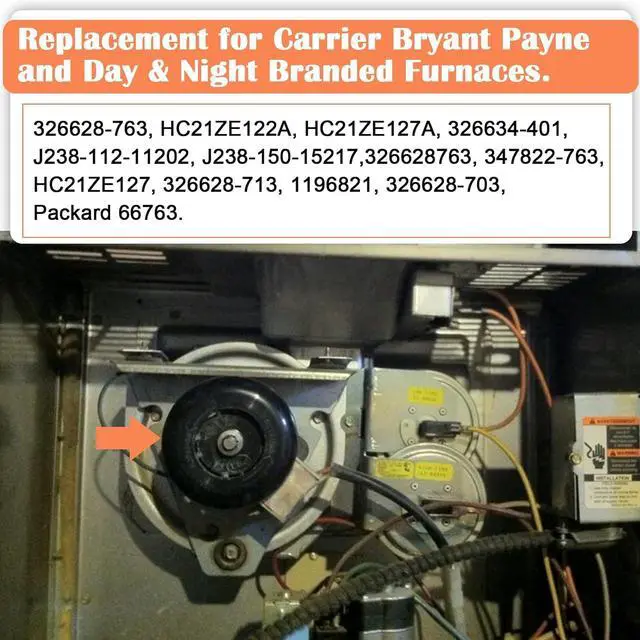

Compatible Models - Furnace Exhaust Draft Inducer Motor Assembly Fits Carrier Bryant Payne 326628-763, HC21ZE122A, HC21ZE127A, 326634-401, J238-112-11202, J238-150-15217, 326628763, 347822-763, HC21ZE127, 326628-713, 1196821, 326628-703 and Packard 66763. Draft Inducer Motor part number 20503. Designed for Carrier, Bryant, Payne, and Day & Night Branded Furnaces.

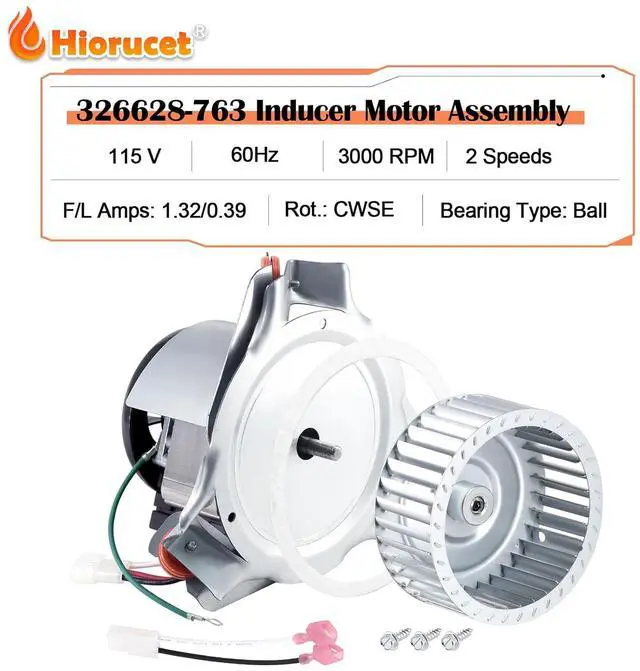

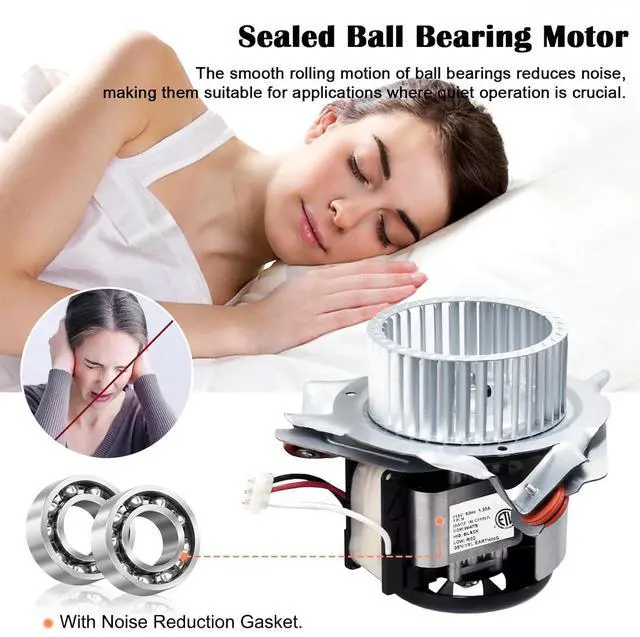

Specifications - Voltage: 115 V, Frequency: 60Hz, 3000 RPM, Speeds: 2; F/L Amps: 1.32/0.39; Rot.: CWSE; Bearing Type: Ball; Safety Switch: Auto Top; Wiring: Three Wires with Molex Plug, Includes 2 Prong Plug Adapter.
Two Speeds - Designed to replace bryant/carrier hc21ze122a inducer motor, this unit operates at two speeds, drawing only 1.32/0.39amps while delivering 3000 RPM. With a reliable 115 volts supply, it ensures optimal air circulation, making it a must-have for maintaining a comfortable indoor environment while saving on energy costs.
Inducer Motor Function: This carrier 326628-763 draft inducer motor assembly is designed to expel the exhaust gas from the furnace. Older inefficient furnaces allowed the flue gas to escape the unit with virtually no resistance. Newer high efficient furnace heat exchangers are so restrictive that the flue gases cannot exit the furnace though natural draft. Therefore, the inducer is required to pull the flue gases through the heat exchanger. The inducer motor is usually the first thing that starts up when your furnace calls for heat.

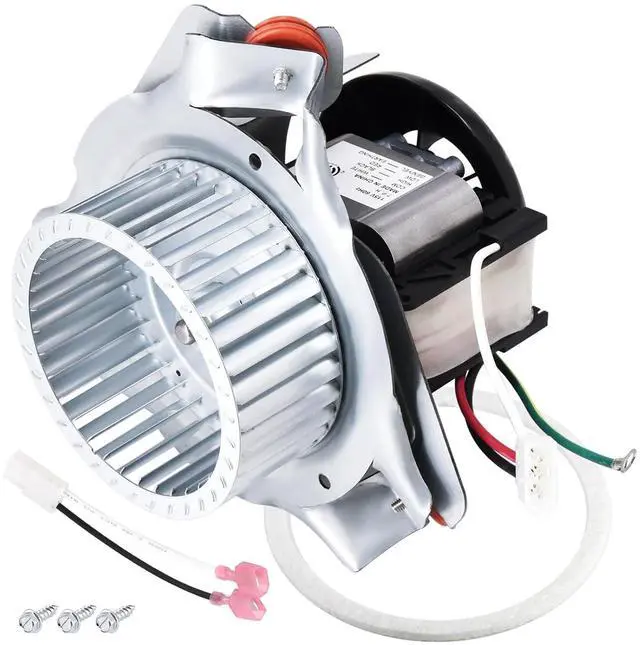

Included With Purchase - This carrier 326628-763 inducer assembly kits include blower motor, 2 Speed Plug, Cooling Fan Shield, Blower Wheel, Mounting Bracket,Screws & Gasket. This blower replaces part numbers packard draft inducer fan furnace blower motor for carrier 326628-763 and comes with a 365 day return and exchange.
