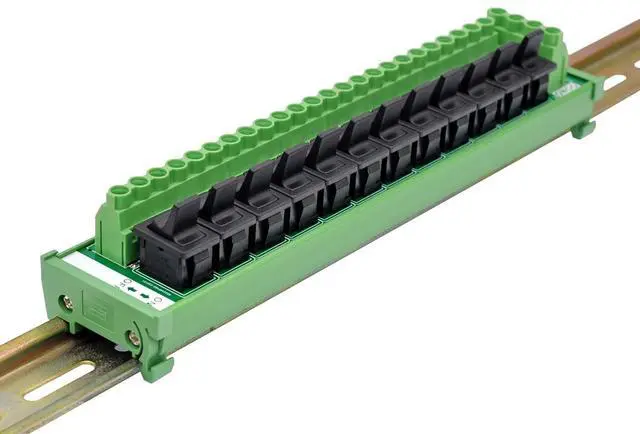

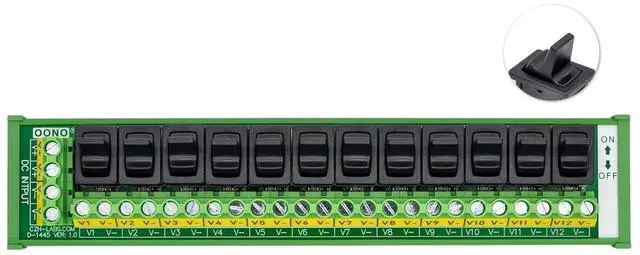

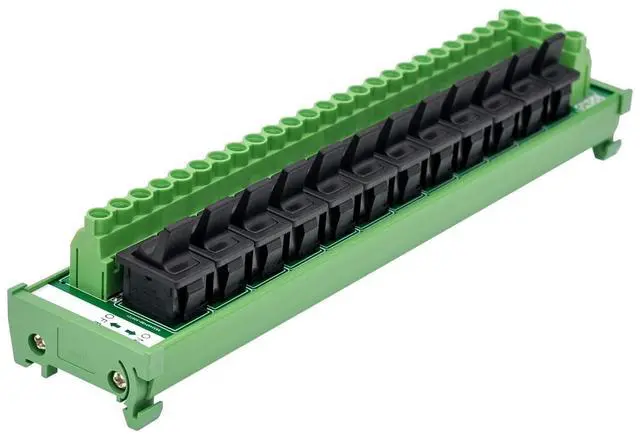

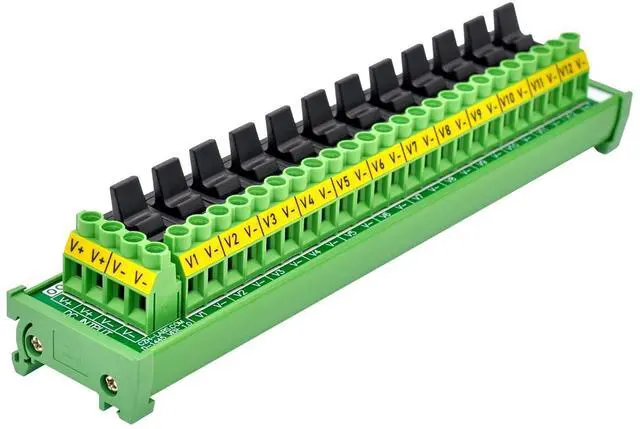

DIN Rail Mount 12 Channel Paddle Switch DC Power Distribution Strip Module
- Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps.

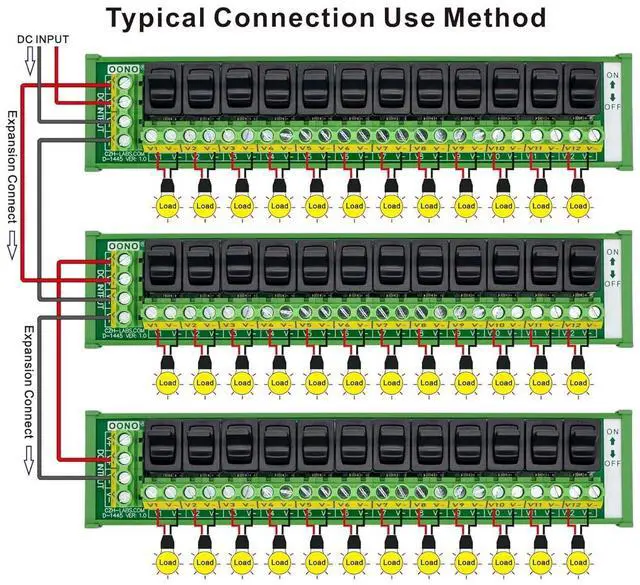

- Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
- Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.

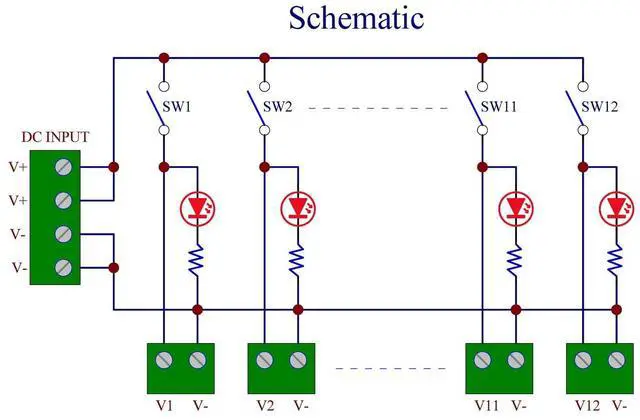

- Paddle rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
- High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
+
+
Overview
Specs
Reviews
Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps.
Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
Paddle rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
Paddle rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
