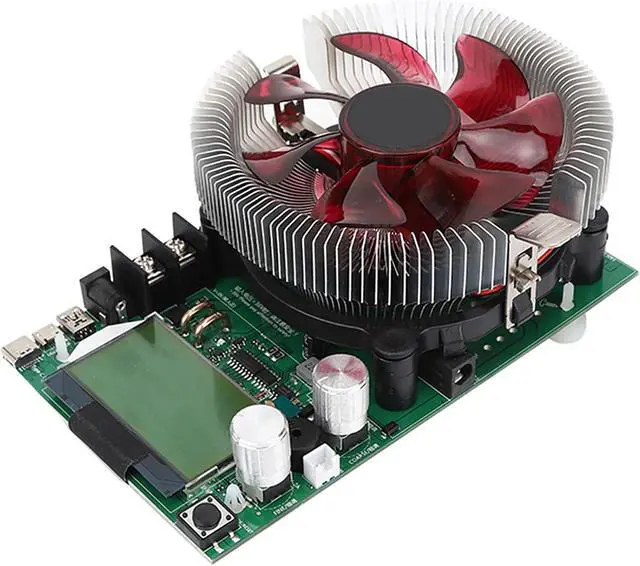

Electronic Load Tester, 150W 200V 20A USB Load Tester, Adjustable Constant Current Electronic Load Battery Capacity Tester Module

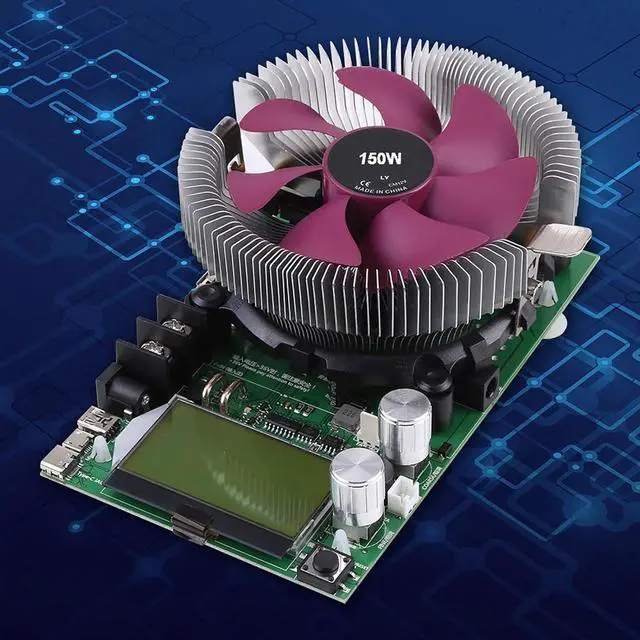

SAFE USE: This Battery Capacity Tester, LCD screen, display information comprehensively and clearly. The CPU fan can effectively dissipate the heat. Configuration of intelligent fan, which can dissipate the heat effectively and quietly. Load maximum power 150W, maximum voltage 200V, maximum current 20A. Over voltage, over current, and over pressure alarm can protect the module from damage effectively.
USB LOAD TESTER: This multifunction constant current electronic load can measure voltage, current, power, battery capacity, impedance, temperature, energy, time. Test various batteries, power supply, and charging data lines.
ELECTRONIC LOAD TESTER: Voltage measurement range: 0.00V ~ 200V, Resolution accuracy: 0.01V. Current measurement range: 0.00A ~ 20A, Resolution accuracy: 0.01A. Refresh time: > 500mS / times Measurement rate: about 0.5 times / sec.
OVER VOLTAGE OVER CURRENT SET THE ALARM MODE: Show alert interface to remind the user. Overpressure Reminder Setting range: 1 ~ 200V. Low voltage reminder setting range: 0 ~ 190V. Overflow Reminder Set Range: 0.2 ~ 100A.
NOTE: Please turn down the knob to the end counterclockwise before using, and then turn up slowly. Please pay attention to your safety when the voltage is more than 36V. Several tested power supply can not be connected simultaneously. The current adjustment knob should be regulated slowly.
