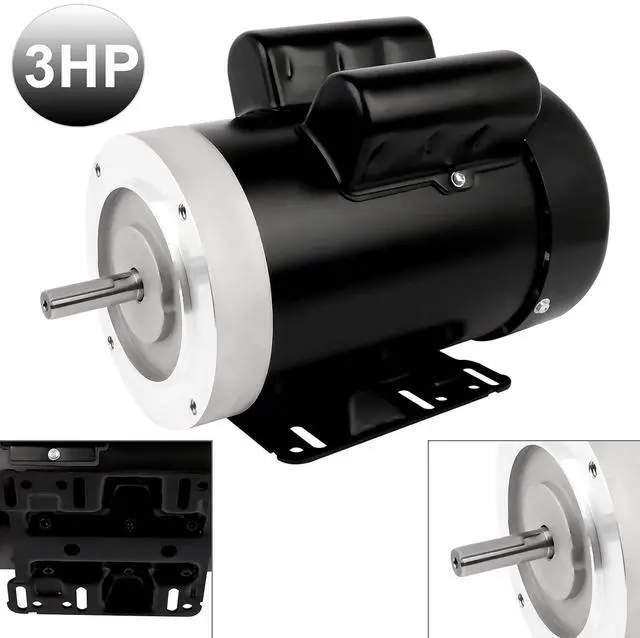

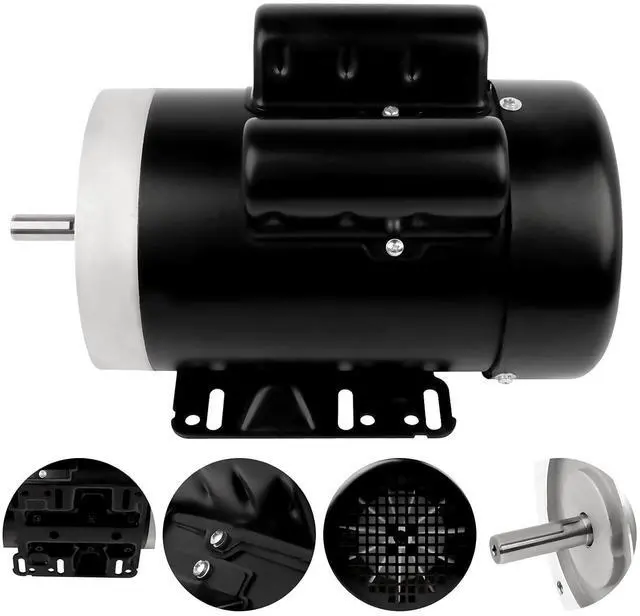

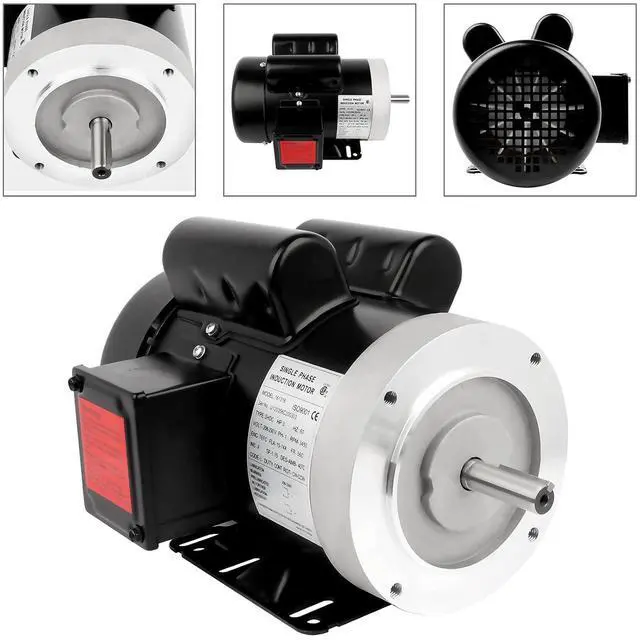

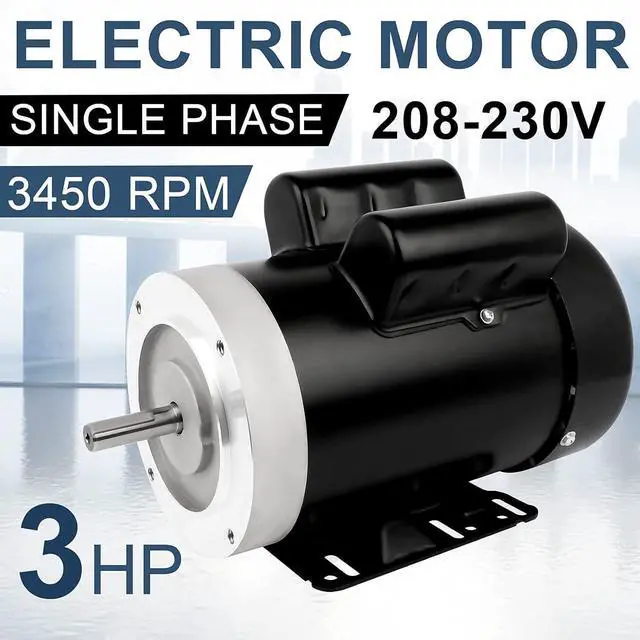

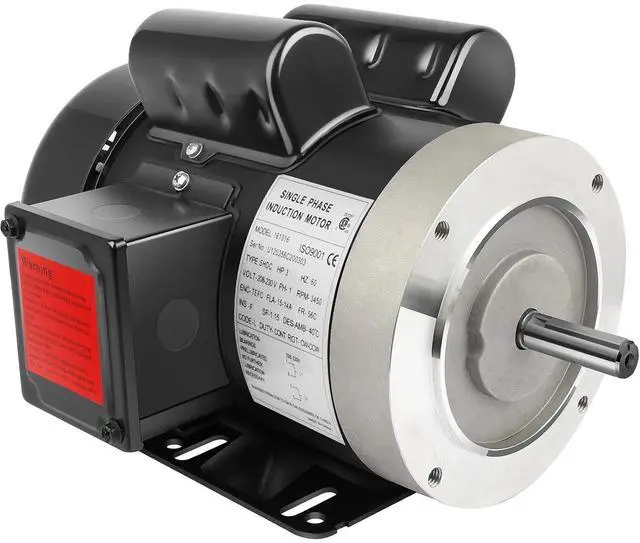

3HP General Purpose Motor, 3450 RPM Electric Motor, Single Phase 56C Frame 208-230V 5/8" Shaft Diameter, 60HZ CW/CCW TEFC

General Purpose Single Phase Motor: HP - 3, POLE - 2, FRAME - 56C, ENC -TEFC, IP - 55
HZ: 60Hz, Voltage: 208V/230V, AMP: 15.0-14.0A, RPM: 3450

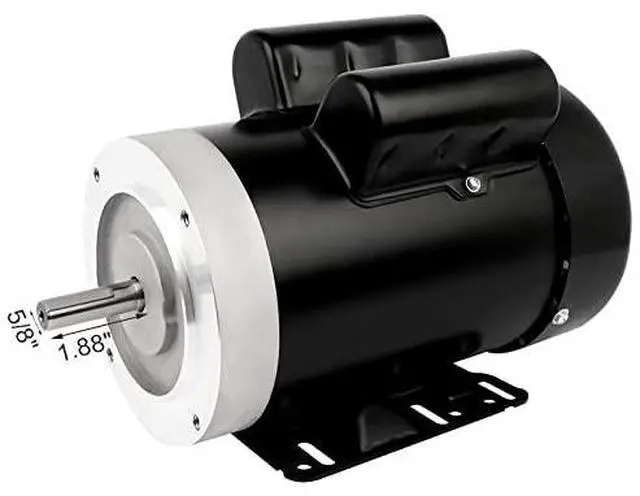

Security Persistent: INS - F, Rotation - CW/CCW, Shaft diameter - 5/8",Shaft length - 1.88"
Housing Material: Rolled steel shell. Adopt S1 continuous working system, safe and durable, long service life
Widely Application:General purpose motor is suitable for general equipment. Please purchase motor according to the specific needs of the parameters, you can send an email for detailed inquiry at any time

Overview

Specs

Reviews

General Purpose Single Phase Motor: HP - 3, POLE - 2, FRAME - 56C, ENC -TEFC, IP - 55
HZ: 60Hz, Voltage: 208V/230V, AMP: 15.0-14.0A, RPM: 3450
Security Persistent: INS - F, Rotation - CW/CCW, Shaft diameter - 5/8",Shaft length - 1.88"
Housing Material: Rolled steel shell. Adopt S1 continuous working system, safe and durable, long service life
Widely Application:General purpose motor is suitable for general equipment. Please purchase motor according to the specific needs of the parameters, you can send an email for detailed inquiry at any time
