Zhushan 90 PCS Lever Wire Nuts Connectors Kit - Electrical Connectors, 28-12 AWG, Compact Splicing Wire Connectors, Quick Disconnect, 2/3/5 Conductor Combination

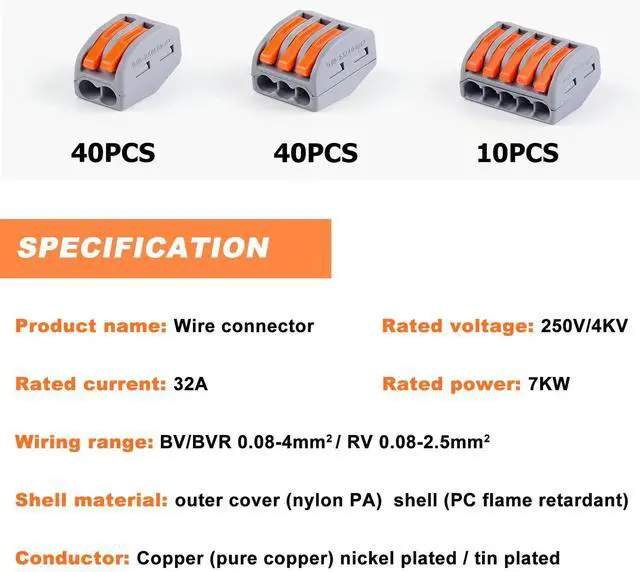

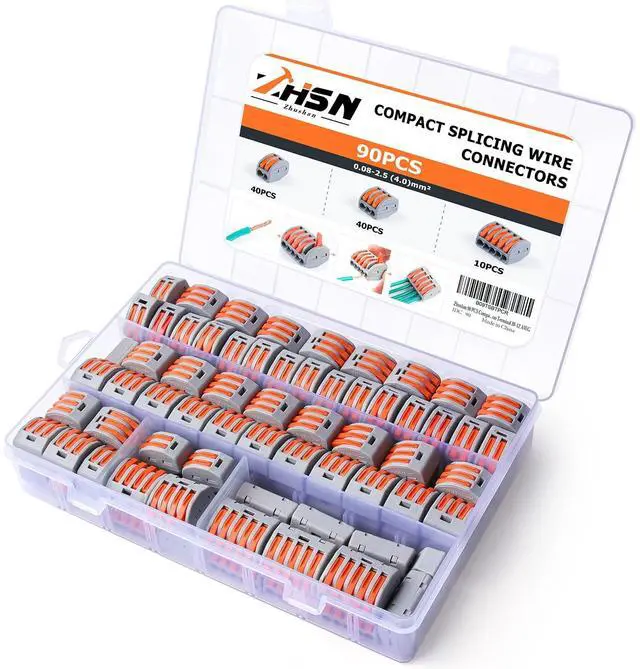

Package includesTotal 90PCS Connectorsincludes 40PCS 212 (2-port), 40 PCS 213 (3-port) and 10PCS 215 (5-port)
CompatibilityUniversal connectors are suitable for 0.08 to 4 mm²/28-12 AWG solid wire and 0.08 to 2.5 mm²/28-14 AWG flexible wire. Suitable for soft and hard single-strand and multi-strand

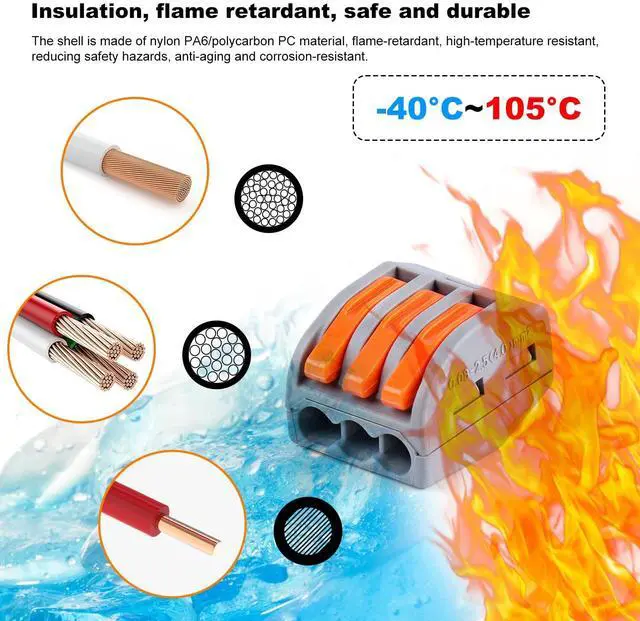

Higher Safety Choose the best flame retardant insulating material modified nylon PA66, long service life, no corrosion, anti-aging, pressure resistance and high temperature resistance

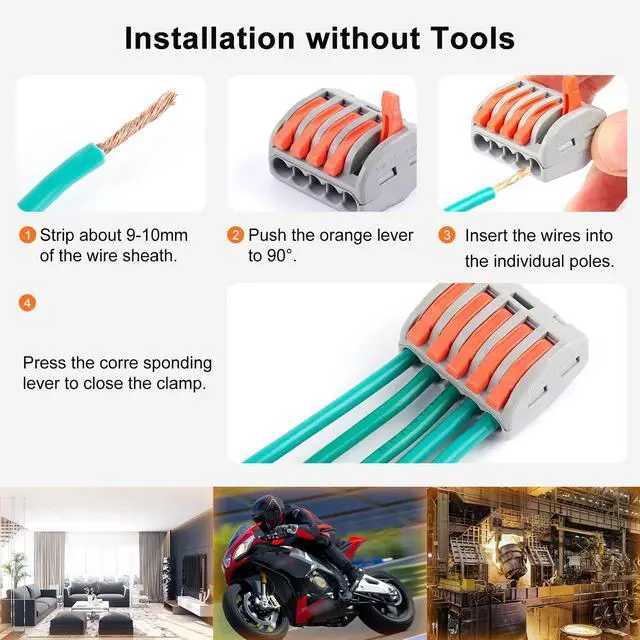

Easy Operation and EfficientThe wires can be connected manually without any tools. Remove the wire sheath (9~10mm), push the orange handle to 90°, insert the cable and turn off the switch. Replaces traditional electrical tape and wrapped butt connectors.Greatly reducing the wiring work time
Wide Applications Widely used in building wiring, lighting,automatic doors,sockets, switches, cars, loudspeakers, electrical boxes, fan controls and all small appliances

Overview

Specs

Reviews

Ratherthan laboriously soldering and wrapping wires with electrical tape, itscompact and practical design allows for connecting groups of wires in afraction of the time.
Adopt flame retardant insulating material and stainless steel spring structure, so that the wiring will not fall off.
1OPERATE 2SPECIFICATIONS3ACHIEVEMENT 4EFFECT Product advantages:
