$86.99
Ships from Hong Kong.
Sold by Chinathru Trading Co., Limited
Shipped by Chinathru Trading Co., Limited
Meet Your Seller

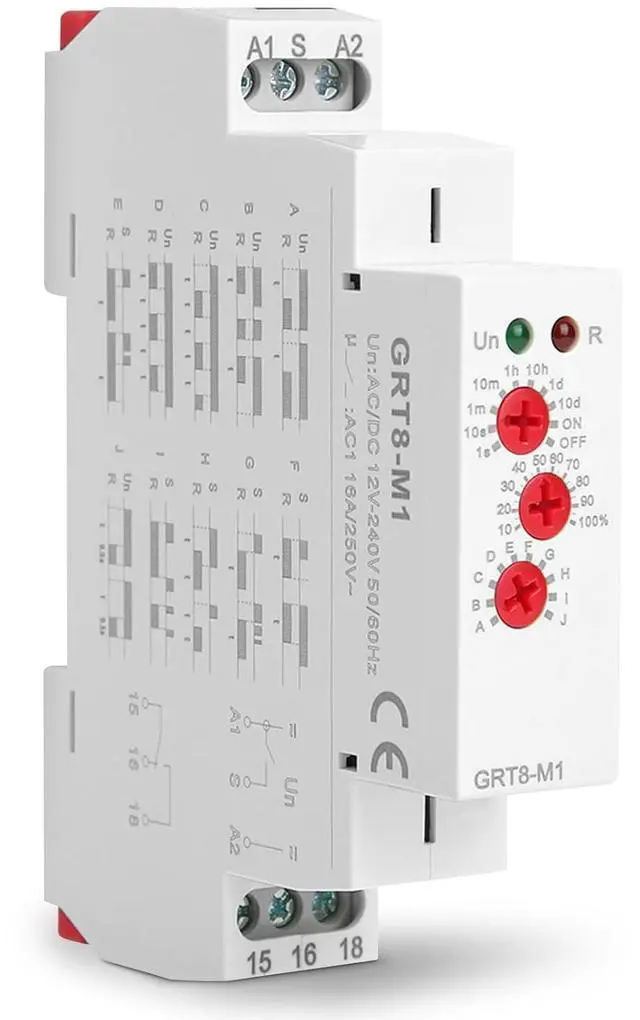

Power on Delay Time Relay, AC/DC 12V~240V GRT8-M1 Multifunctional Delay Time Relay with 10 Functions, DIN Rail Mount Delay Timer Switch, Delay Range: 0.1s-10 Days
- Parameter: Rated Power Supply Voltage: AC/DC 12V~240V (50-60Hz); Power Terminal: A1-A2; Power Consumption: AC0.09-3VA/DC0.05-1.7W; Setting Accuracy: 10%; Output : 1 x SPDT, 250VAC/24VDC; Minimum Switching Power: 500mW.

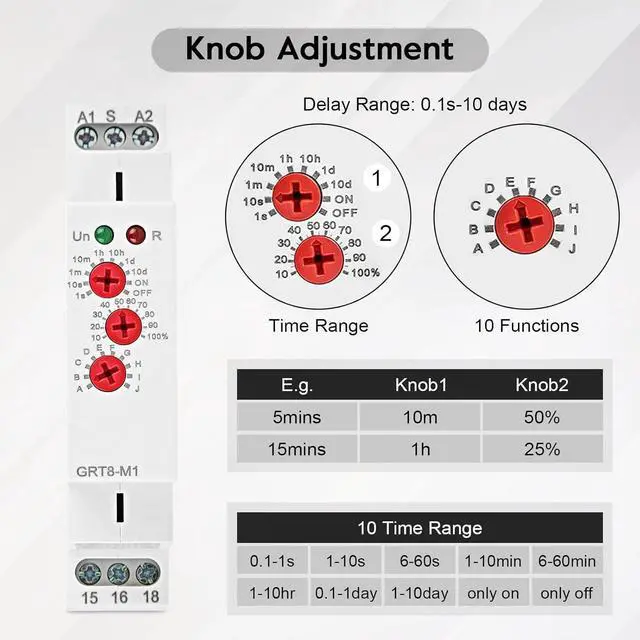

- 10 Functions: GRT8-M1 delay time relay with 10 functions including delay on, delay off, cycle delay and so on. This is a multifunctional time relay and time delay can be set by panel knob.
- Delay Range: Super wide time delay setting range of 0.1s-10 days, you can choose the desired delay time to suit your specific requirements. This flexibility allows for precise timing control in various applications.

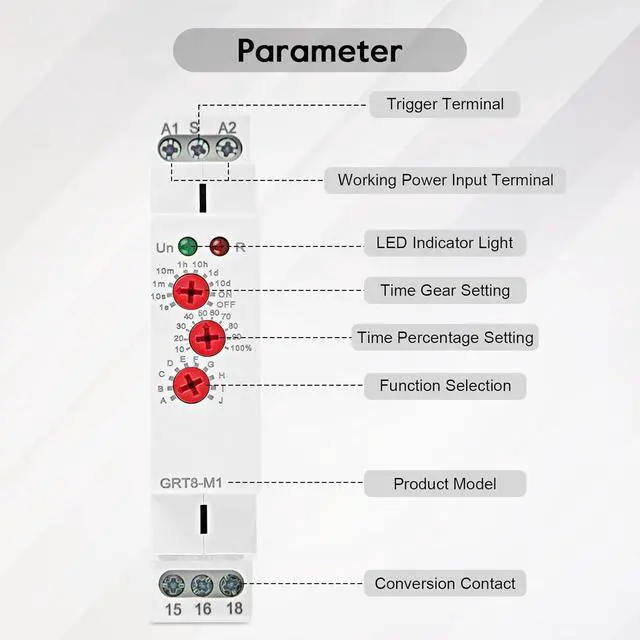

- LED Indicator: The delay time relay's working status is clearly indicated by the LED indicator, allowing for easy monitoring and troubleshooting. Power Indicator: Green LED; Output Relay Indication: Red LED.

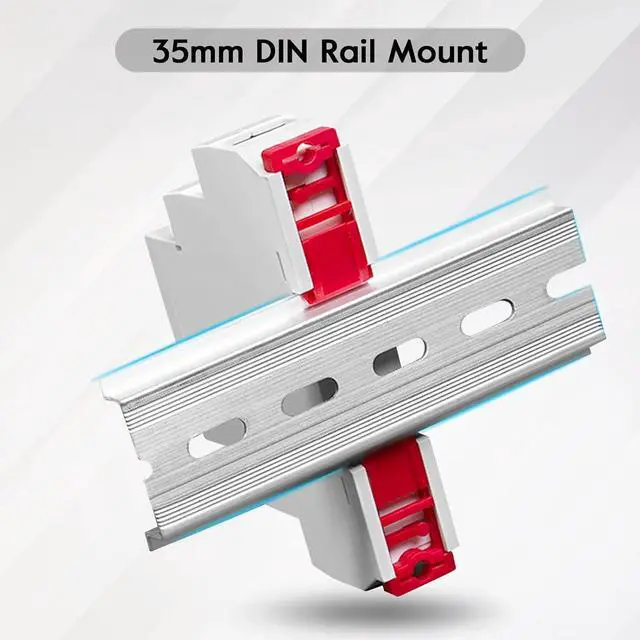

- Mounting Method: 35mm DIN Rail Mount. This multifunctional time relay can be used for industrial equipment, lighting control, heating element control, mo
+
+
Overview
Specs
Reviews
Parameter: Rated Power Supply Voltage: AC/DC 12V~240V (50-60Hz); Power Terminal: A1-A2; Power Consumption: AC0.09-3VA/DC0.05-1.7W; Setting Accuracy: 10%; Output : 1 x SPDT, 250VAC/24VDC; Minimum Switching Power: 500mW.
10 Functions: GRT8-M1 delay time relay with 10 functions including delay on, delay off, cycle delay and so on. This is a multifunctional time relay and time delay can be set by panel knob.
Delay Range: Super wide time delay setting range of 0.1s-10 days, you can choose the desired delay time to suit your specific requirements. This flexibility allows for precise timing control in various applications.
LED Indicator: The delay time relay's working status is clearly indicated by the LED indicator, allowing for easy monitoring and troubleshooting. Power Indicator: Green LED; Output Relay Indication: Red LED.
Mounting Method: 35mm DIN Rail Mount. This multifunctional time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.
10 Functions: GRT8-M1 delay time relay with 10 functions including delay on, delay off, cycle delay and so on. This is a multifunctional time relay and time delay can be set by panel knob.
Delay Range: Super wide time delay setting range of 0.1s-10 days, you can choose the desired delay time to suit your specific requirements. This flexibility allows for precise timing control in various applications.
LED Indicator: The delay time relay's working status is clearly indicated by the LED indicator, allowing for easy monitoring and troubleshooting. Power Indicator: Green LED; Output Relay Indication: Red LED.
Mounting Method: 35mm DIN Rail Mount. This multifunctional time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.
