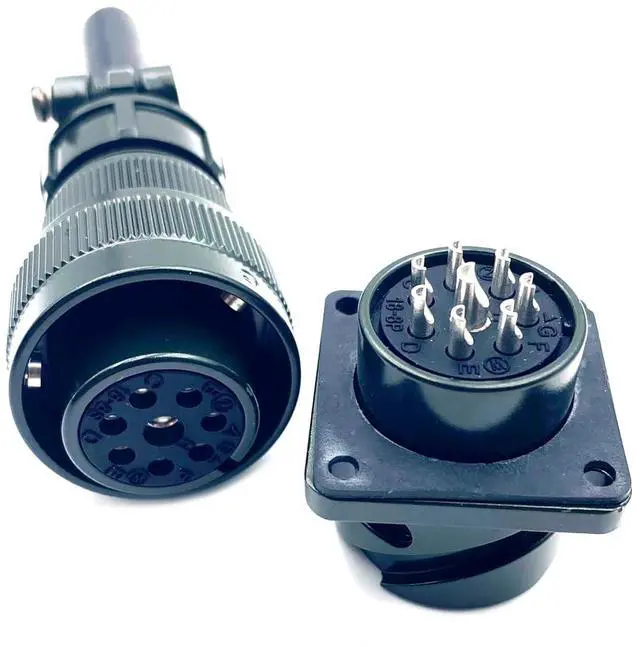

1 Set MS3106A18-8S MS3102A18-8P Industrial Circular Connector, MIL-DTL-5015 Series Threaded Connector 8 Pin Contacts Solder Male Connectors Straight, 18 Shell Size

[MIL-DTL-5015 series connector parameters]: 1 Set MS3106A18-8S MS3102A18-8P circular connector, A-grade integrated housing connector, housing size 18, 8-pin contact point, straight type, conventional orientation
[MS3106A18-8S MS3102A18-8P Connector Material]: MIL-DTL-5015 series industrial connectors are made of aluminum alloy die-casting parts and aluminum alloy materials, green, insulated with heat-resistant rubber, and the contact material is copper
[Application in Industry]: MIL-DTL-5015 connectors are designed for the connection between electronic equipment and are widely used in industrial machinery and railway equipment, with high compatibility and strong reliability
[Circular Thread Connector]: The MIL-DTL-5015 connector is a circular thread connector with an electrophoretic green finish on the surface, protecting the casing from environmental impact. It is suitable for use in harsh environments ranging from -55 ° C to 125 ° C

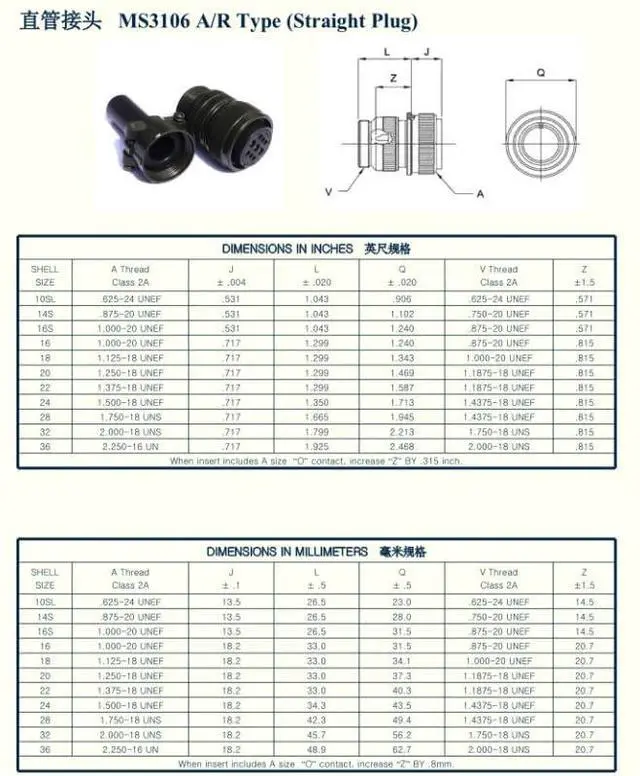

[Usage of connectors of various models]: MS3102 is used for sockets installed in shielded boxes and equipment boxes, MS3106 is used for plugs and sockets at the end of cables to be used together, MS3108 is a 90 degree elbow, and MS3057 tail clamp is designed to protect cables inside the sleeve
