MOLLOM VFD 2.2KW 3HP 9.6A 220V Single or Three Phase Input to 3 Phase 0-3000 Hz Output Variable Frequency Drive Control Inverter for Spindle Motor CNC Speed Control

High PerformancePower: 2.2kw; Input voltage: AC 220V(±15%); Output voltage: AC 220V; Input frequency: 50/60 Hz; Output frequency: 0-3000 Hz; Input phase: Both Support Single or Three phase; Output phase: three-phase
FeatureRich of digital and analogy control terminals for versitile control RS485 communication port, adopting standard international MODBUS main circuit control.With extremely strong anti-jamming capability, safe for you to use

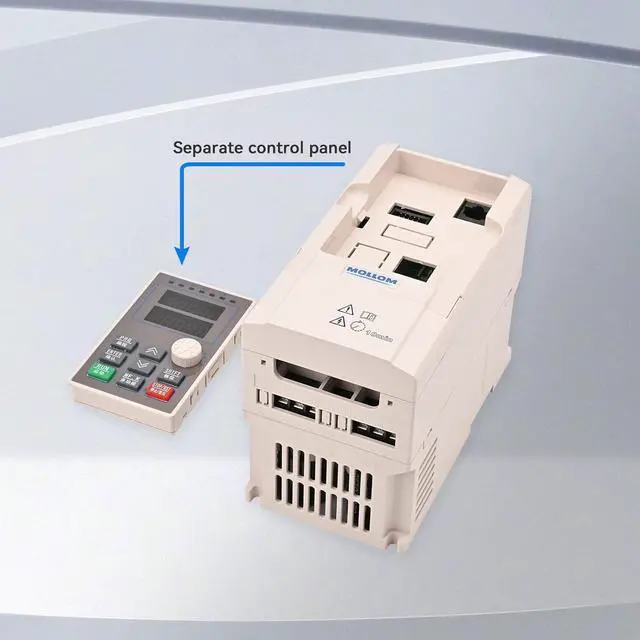

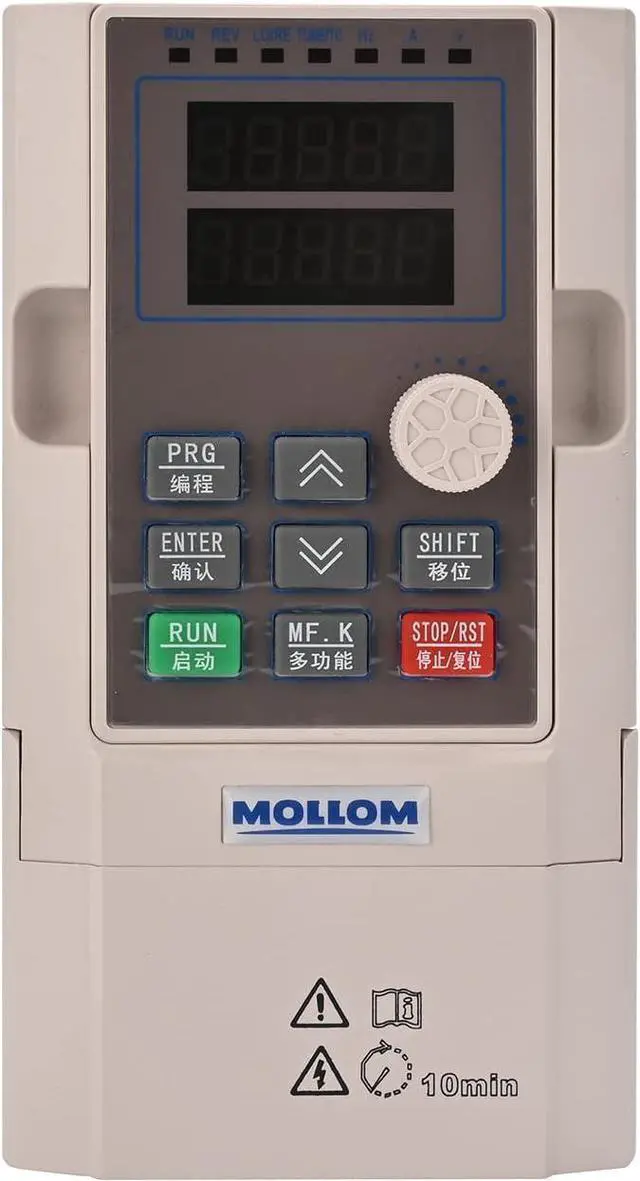

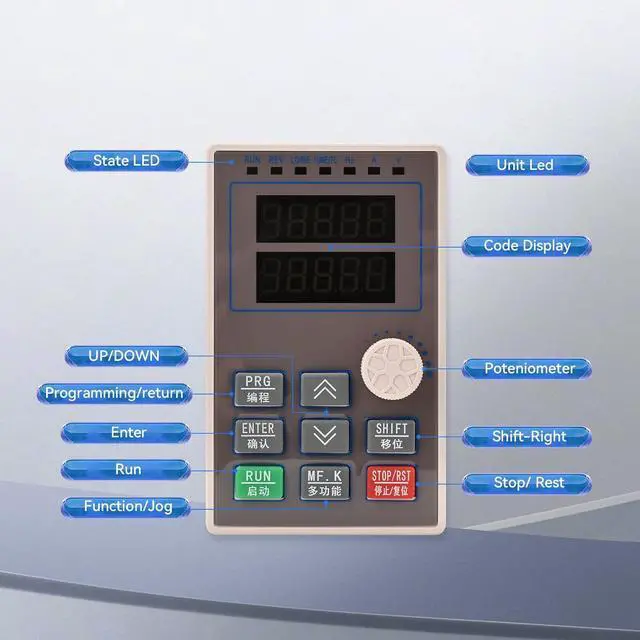

Smart Digital Display Adopting user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control
Application MotorCNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines

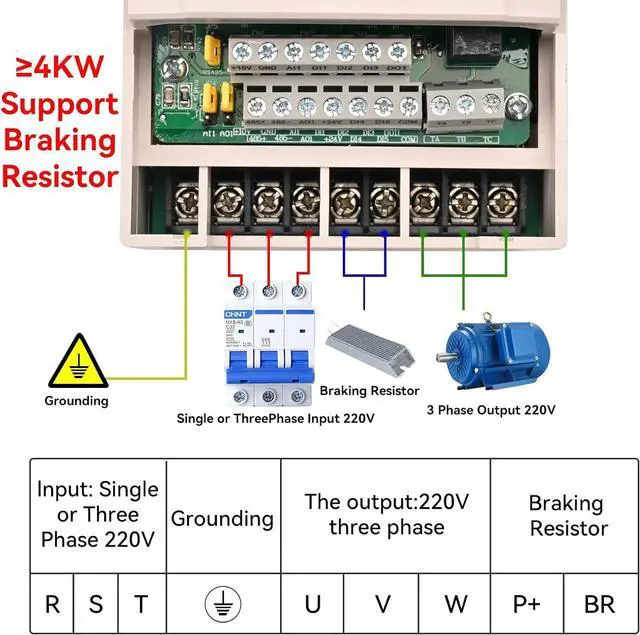

Importent Note This VFD does not surpport external resistor. If your motor is heavy load, pls choose a higher power level VFD or contact sales for model selection suggestion.The working environment is relatively humid, with water mist, water droplets or metal objects falling in, which will cause a short circuit
***The frequency converter needs to be directly connected to the motor, and the start and stop of the motor must be controlled by the frequency converter, otherwise the frequency converter will be damaged
