PT 2.5 Terminal Block Kit, Rail Type Voltage Terminal, Rail Combined Terminal Block, Top Entry Line, Plug-in Quick Connection, No Need for Screwdriver for Wiring

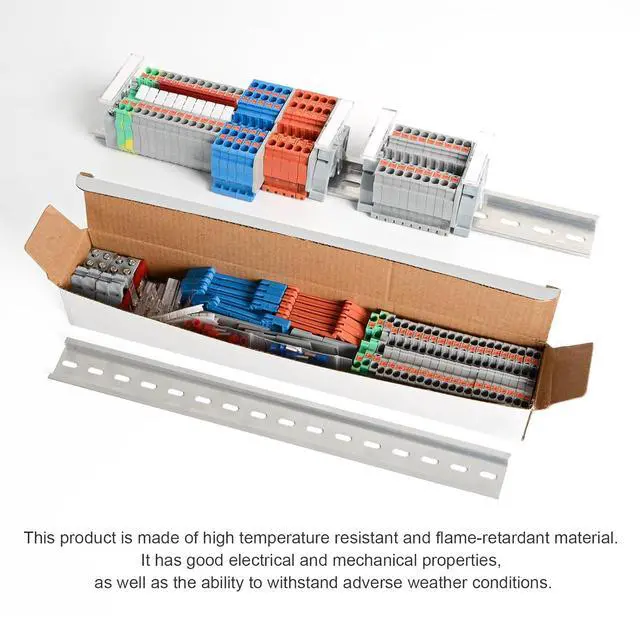

High Quality Insulating PA66 Material: This product is made of high temperature resistant and flame-retardant PA66 material. It has good electrical and mechanical properties, as well as the ability to withstand adverse weather conditions. All the live parts are installed in the insulating parts, and the operator's hands cannot touch the live parts after they are assembled into a row to ensure personal safety

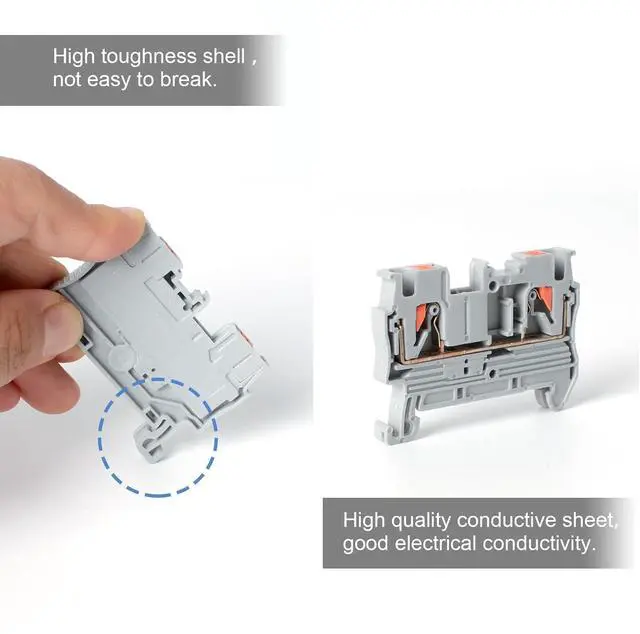

High Quality Conductive Sheet: The conductive sheet is made of pure copper, which can fully ensure excellent contact performance and minimal contact resistance. At the same time, the standard size can be used with confidence

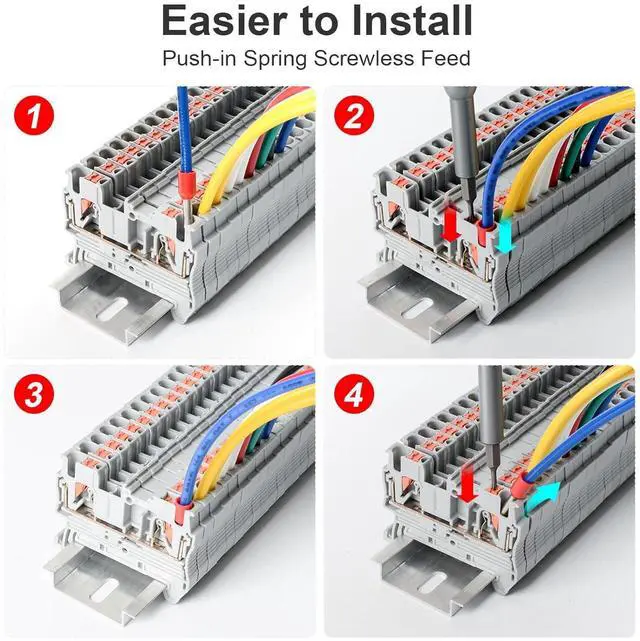

Reasonably Designed Installation Structure: No additional spring clamp is required. It can be conveniently installed on the guide rail just by using reasonable design structure and plastic elasticity.It is more reliable and flexible when used.It can be bent repeatedly without deformation . The clamp foot is thick enough, and the card guide rail is firm

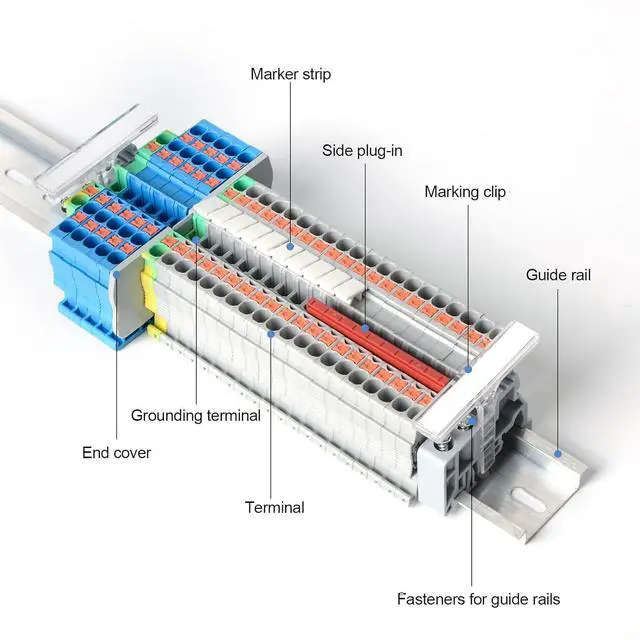

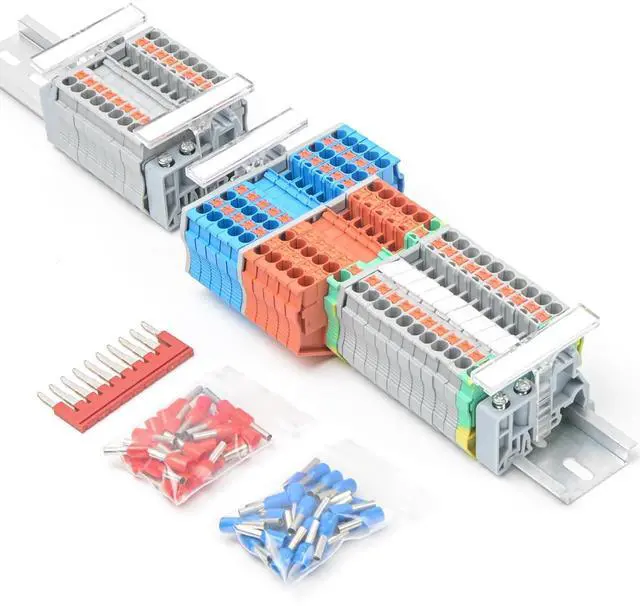

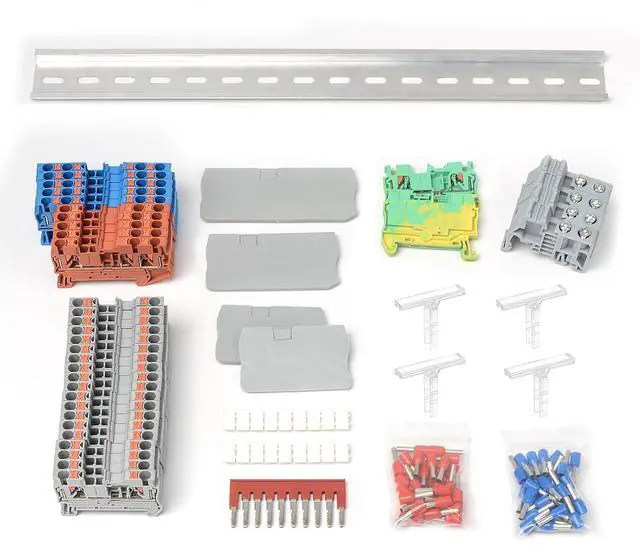

Product Suite Group: Including 1 32cm guide rail, 1 side plug-in, 2 marker strips, 2 grounding terminals, 4 baffles, 4 marking clips, 4 universal fasteners for guide rails20 gray terminal blocks, 5 orange terminal blocks, 5 blue terminal blocks, and 32 needle tube terminal lugs in red and blue, a total of 64 pieces

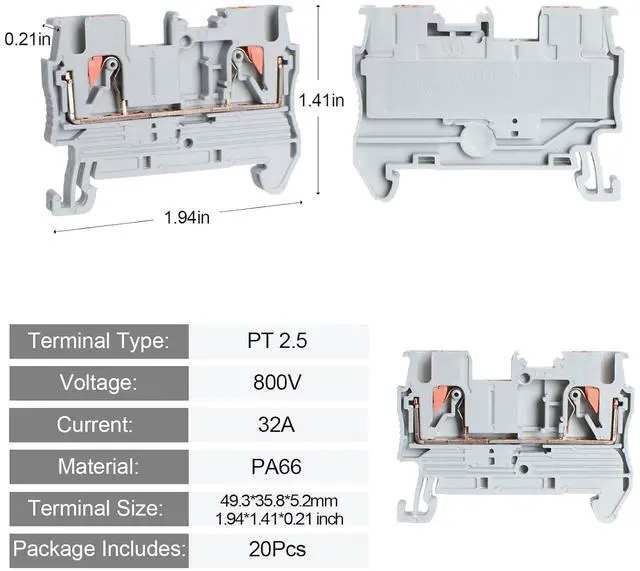

Product Parameters: Brand: GUETNEU Colour: Gray, orange, blue Housing Material: High quality PA66 materials Conductive Sheet: Pure copper Terminal type: PT 2.5 Current: 32A Voltage: 800V Wire range: Flexible wire: 0.2-0.5 Hard wire: 0.2-4
