Baomain 100 Amp DC Circuit Breaker for Off-Grid Solar System,100A 2 Pole DC 550V, Moulded Case IP20 DC MCCB BMM1PV-125(100A)

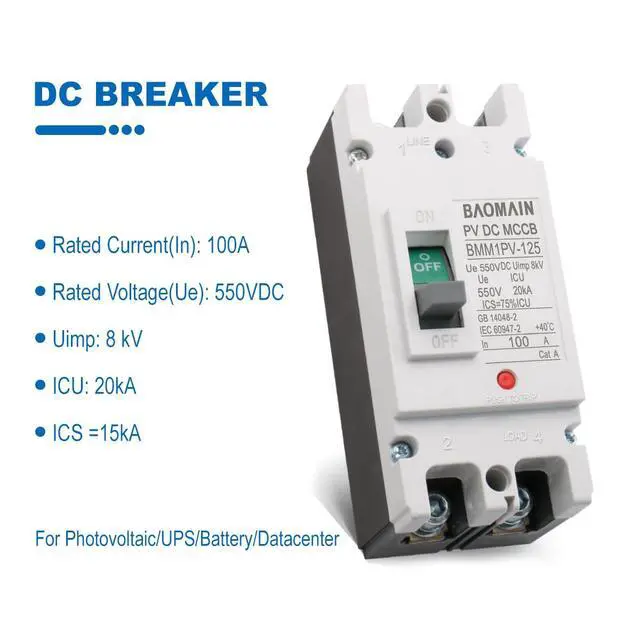

- Rated Current: 100A; Rated Voltage(Ue): 550VDC; 50/60Hz
- Poles : 2 Poles; Breaking Capacity: 20kA lcu, 15kA lcs; Uimp: 8kV

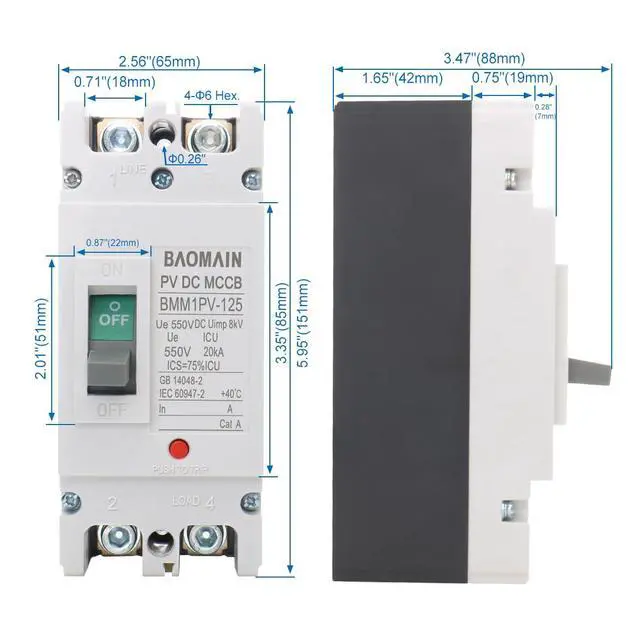

- Size (Approx): 151 x 65 x 88mm / 5.95" x 2.56" x 3.47" (L*W*H )
- Mounting Hole: 0.26''/ 6mm; Mount Distance: 5'' /129 mm ; Weight: 940g

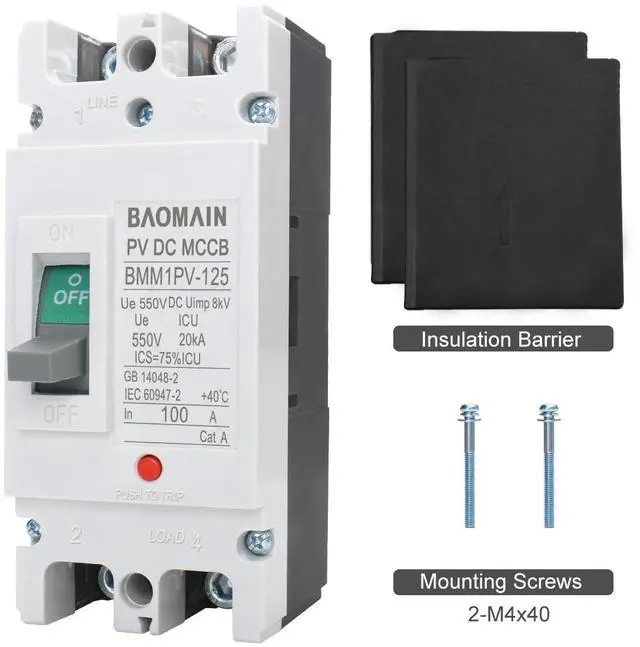

- Package Content: 1 x DC Circuit Breaker, 2 x Insulation Barrier, 2 x Screws
+
+
Overview
Specs
Reviews
Rated Current: 100A; Rated Voltage(Ue): 550VDC; 50/60Hz
Poles : 2 Poles; Breaking Capacity: 20kA lcu, 15kA lcs; Uimp: 8kV
Size (Approx): 151 x 65 x 88mm / 5.95" x 2.56" x 3.47" (L*W*H )
Mounting Hole: 0.26''/ 6mm; Mount Distance: 5'' /129 mm ; Weight: 940g
Package Content: 1 x DC Circuit Breaker, 2 x Insulation Barrier, 2 x Screws
Poles : 2 Poles; Breaking Capacity: 20kA lcu, 15kA lcs; Uimp: 8kV
Size (Approx): 151 x 65 x 88mm / 5.95" x 2.56" x 3.47" (L*W*H )
Mounting Hole: 0.26''/ 6mm; Mount Distance: 5'' /129 mm ; Weight: 940g
Package Content: 1 x DC Circuit Breaker, 2 x Insulation Barrier, 2 x Screws
