uxcell Drum Switch QS-15 3 Positon Forward/Off/Reverse Motor Control Aluminum Shell 15A
- Model: QS-15 ; Positions: Forward, Stop, Reverse (I-O-I) ; Terminals Quantity: 6

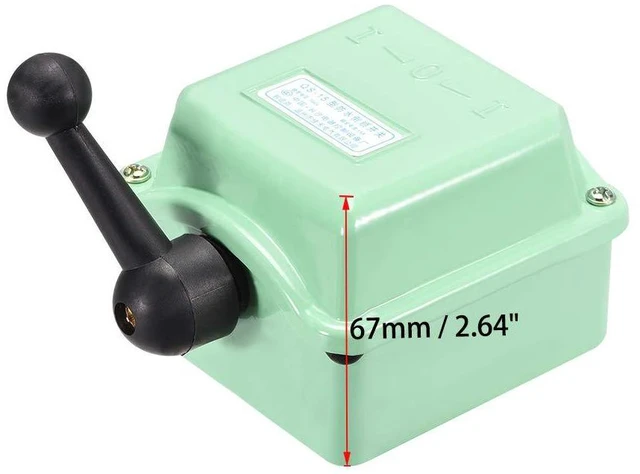

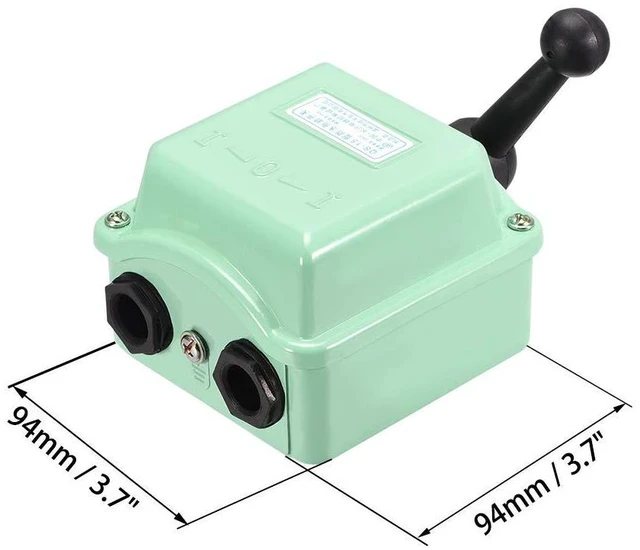

- Contact Rating: 0 to 380V, 15A (3HP 120V or 6HP 240V Motors); Body Size: 94 x 94 x 67mm / 3.7 x 3.7 x 2.64inch(L*W*H)

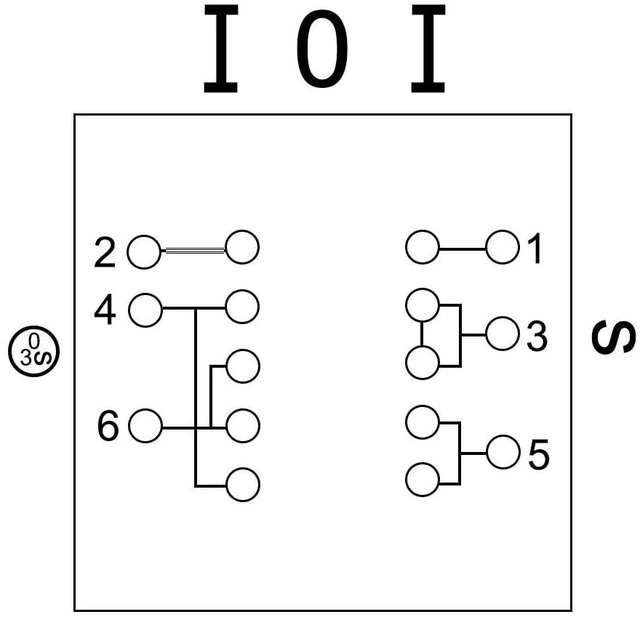

- Action Type: Latching; Package Content: 1 x Changeover Switch; Wire connecting instruction as picture shows.
- Forward reversing drum switch, solid Aluminum shell, professional standard, great replacement for your damaged one.
- It will work with either AC or DC. It's for switching the direction of large AC motors. Diagram enclosed makes for easy wiring.
+
+
Overview
Specs
Reviews
Model: QS-15 ; Positions: Forward, Stop, Reverse (I-O-I) ; Terminals Quantity: 6
Contact Rating: 0 to 380V, 15A (3HP 120V or 6HP 240V Motors); Body Size: 94 x 94 x 67mm / 3.7 x 3.7 x 2.64inch(L*W*H)
Action Type: Latching; Package Content: 1 x Changeover Switch; Wire connecting instruction as picture shows.
Forward reversing drum switch, solid Aluminum shell, professional standard, great replacement for your damaged one.
It will work with either AC or DC. It's for switching the direction of large AC motors. Diagram enclosed makes for easy wiring.
Contact Rating: 0 to 380V, 15A (3HP 120V or 6HP 240V Motors); Body Size: 94 x 94 x 67mm / 3.7 x 3.7 x 2.64inch(L*W*H)
Action Type: Latching; Package Content: 1 x Changeover Switch; Wire connecting instruction as picture shows.
Forward reversing drum switch, solid Aluminum shell, professional standard, great replacement for your damaged one.
It will work with either AC or DC. It's for switching the direction of large AC motors. Diagram enclosed makes for easy wiring.
