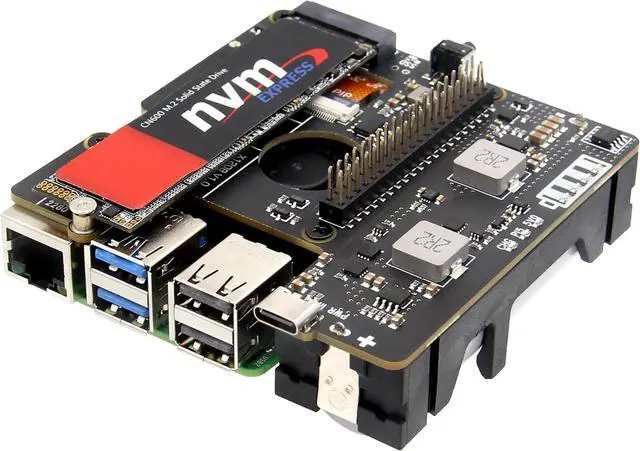

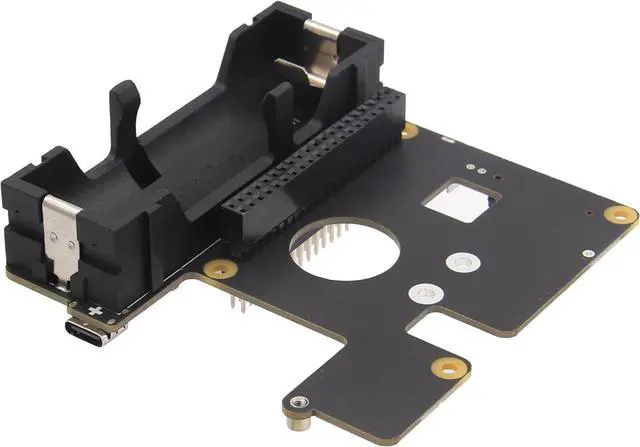

Geekworm X1208 5.1V 5A UPS HAT with M.2 HAT+ Expansion for Raspberry Pi 5 Support M.2 2230/2242/2280 SSD
- Compatibility: Pi 5 UPS compatible with Raspberry Pi 5 16GB/8GB/4GB/2GB; Model: X1208

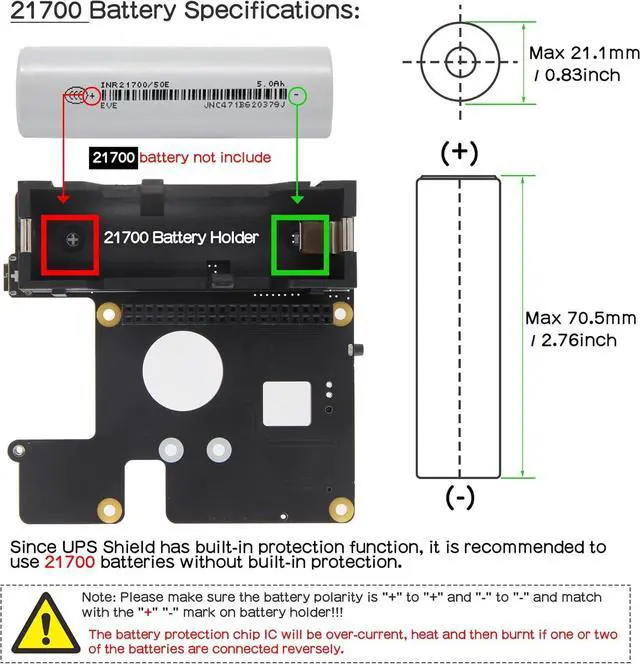

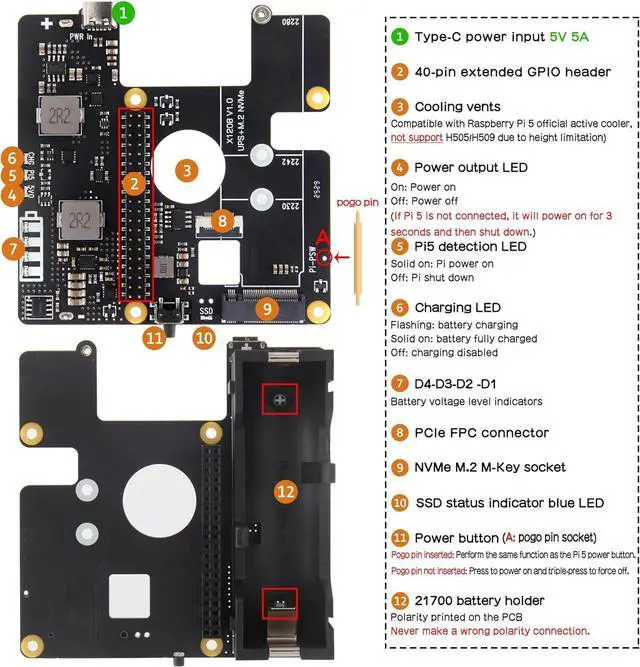

- Function: X1208 supporting battery of up to 5000mAh, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection, on-board power button to power on/off
- Support M.2 NVMe SSD: Supports high-capacity M.2 NVMe solid-state drives up to 4TB, accommodates 2280, 2242, and 2230 M.2 NVMe SSD

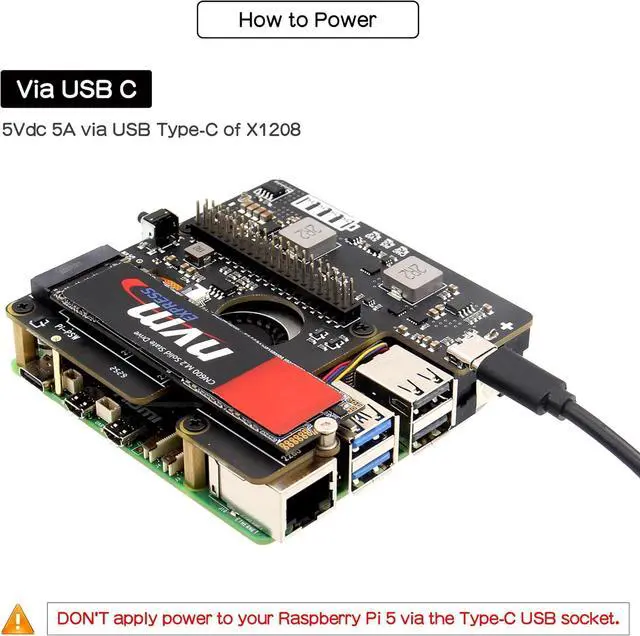

- How to Power: Power via X1208 5Vdc 5A USB-C port

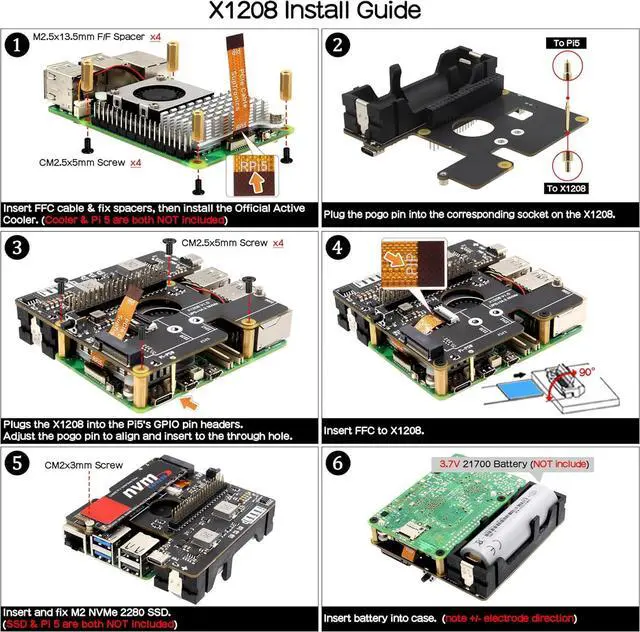

- User Manual: Goole Geekworm Wiki search X1208 and refer to user manual for hardware and software guide
- Active Cooler Compatibility: The H505 and H509 coolers are not compatible with X1207/X1208/X1209 due to height limitations. Please use the official Raspberry Pi Active Cooler for these models.

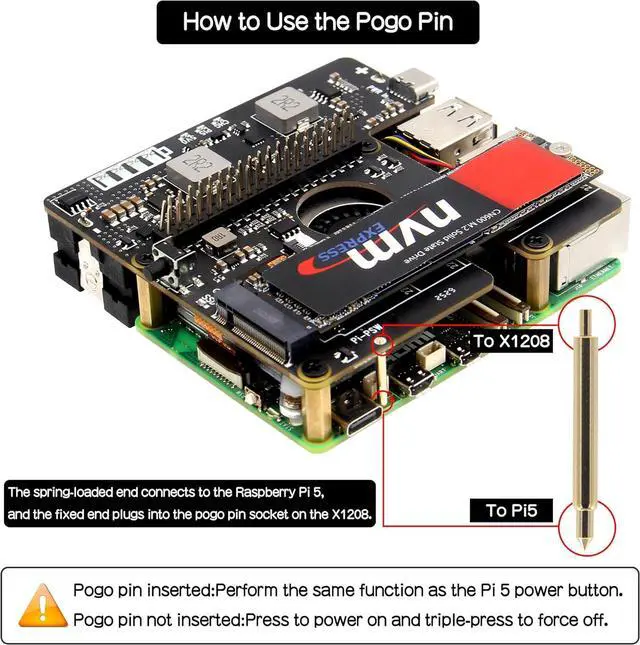

- Packing List: 1 x X1208 V1.0 UPS+NVMe board, 2 x 40mm length PCIe FFC cable(one as backup), 4 x M2.5x13.5mm F/F Spacers, 8 x M2.5x5mm Screws, 1 x Pogo pin(For connecting to the Pi 5 PSW thr
+
+
Overview
Specs
Reviews
Compatibility: Pi 5 UPS compatible with Raspberry Pi 5 16GB/8GB/4GB/2GB; Model: X1208
Function: X1208 supporting battery of up to 5000mAh, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection, on-board power button to power on/off
Support M.2 NVMe SSD: Supports high-capacity M.2 NVMe solid-state drives up to 4TB, accommodates 2280, 2242, and 2230 M.2 NVMe SSD
How to Power: Power via X1208 5Vdc 5A USB-C port
User Manual: Goole Geekworm Wiki search X1208 and refer to user manual for hardware and software guide
Active Cooler Compatibility: The H505 and H509 coolers are not compatible with X1207/X1208/X1209 due to height limitations. Please use the official Raspberry Pi Active Cooler for these models.
Packing List: 1 x X1208 V1.0 UPS+NVMe board, 2 x 40mm length PCIe FFC cable(one as backup), 4 x M2.5x13.5mm F/F Spacers, 8 x M2.5x5mm Screws, 1 x Pogo pin(For connecting to the Pi 5 PSW through hole), 1 x SSD Copper Pillar, 1 x M2x4mm Screw
Function: X1208 supporting battery of up to 5000mAh, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection, on-board power button to power on/off
Support M.2 NVMe SSD: Supports high-capacity M.2 NVMe solid-state drives up to 4TB, accommodates 2280, 2242, and 2230 M.2 NVMe SSD
How to Power: Power via X1208 5Vdc 5A USB-C port
User Manual: Goole Geekworm Wiki search X1208 and refer to user manual for hardware and software guide
Active Cooler Compatibility: The H505 and H509 coolers are not compatible with X1207/X1208/X1209 due to height limitations. Please use the official Raspberry Pi Active Cooler for these models.
Packing List: 1 x X1208 V1.0 UPS+NVMe board, 2 x 40mm length PCIe FFC cable(one as backup), 4 x M2.5x13.5mm F/F Spacers, 8 x M2.5x5mm Screws, 1 x Pogo pin(For connecting to the Pi 5 PSW through hole), 1 x SSD Copper Pillar, 1 x M2x4mm Screw
