Geekworm X1209 5.1V 6A UPS HAT with Wide 6-18V Input for Raspberry Pi 5/4B/3B+/3B
- Compatibility: UPS HAT compatible with Raspberry Pi 5/4B/3B+/3B; Model: X1209

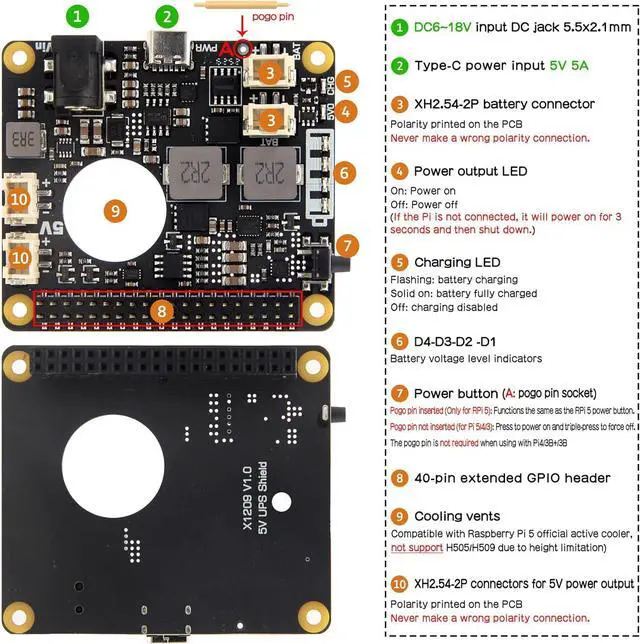

- Function: X1209 Supports a maximum current output of 5.1V 6000mA, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection, on-board power button to power on/off

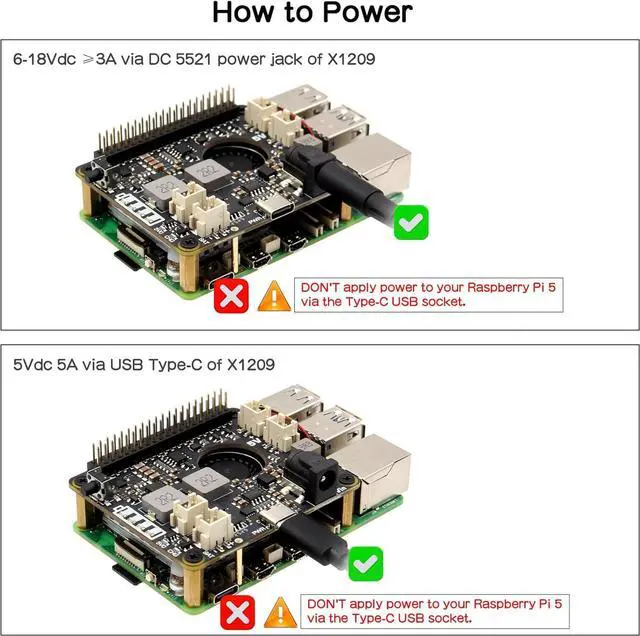

- How to Power: 1. Power 5Vdc 5A via USB-C port of X1209 OR 2. Power 6-18Vdc via DC jack of X1209 (12Vdc 3A power adapter recommended)
- User Manual: Goole Geekworm Wiki search X1209 and refer to user manual for hardware and software guide
- Application: Supports attaching other add-on boards to the bottom of the Raspberry Pi, such as X1002, X1005, X1100, X1006, X1007, etc
- Active Cooler Compatibility: The H505 and H509 coolers are not compatible with X1207/X1208/X1209 due to height limitations. Please use the official Raspberry Pi Active Cooler for these models.

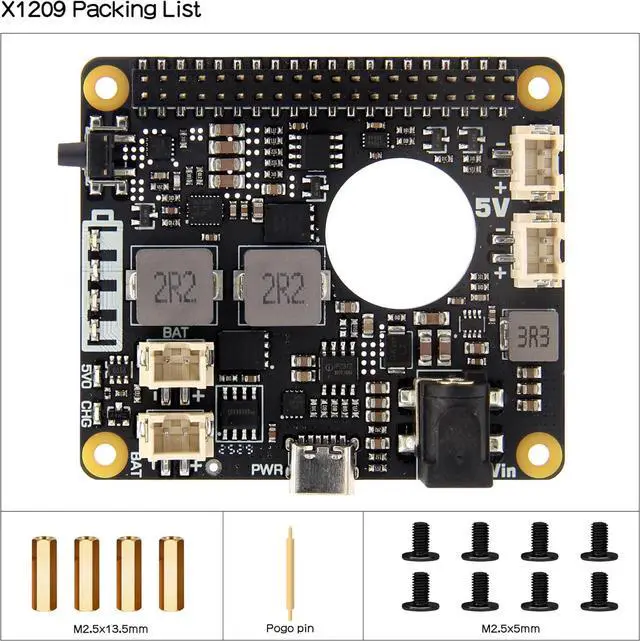

- Packing List: 1 x X1209 V1.0 expansion board, 4 x M2.5x13.5mm F/F Spacers, 8 x M2.5x5mm Screws,
+
+
Overview
Specs
Reviews
Compatibility: UPS HAT compatible with Raspberry Pi 5/4B/3B+/3B; Model: X1209
Function: X1209 Supports a maximum current output of 5.1V 6000mA, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection, on-board power button to power on/off
How to Power: 1. Power 5Vdc 5A via USB-C port of X1209 OR 2. Power 6-18Vdc via DC jack of X1209 (12Vdc 3A power adapter recommended)
User Manual: Goole Geekworm Wiki search X1209 and refer to user manual for hardware and software guide
Application: Supports attaching other add-on boards to the bottom of the Raspberry Pi, such as X1002, X1005, X1100, X1006, X1007, etc
Active Cooler Compatibility: The H505 and H509 coolers are not compatible with X1207/X1208/X1209 due to height limitations. Please use the official Raspberry Pi Active Cooler for these models.

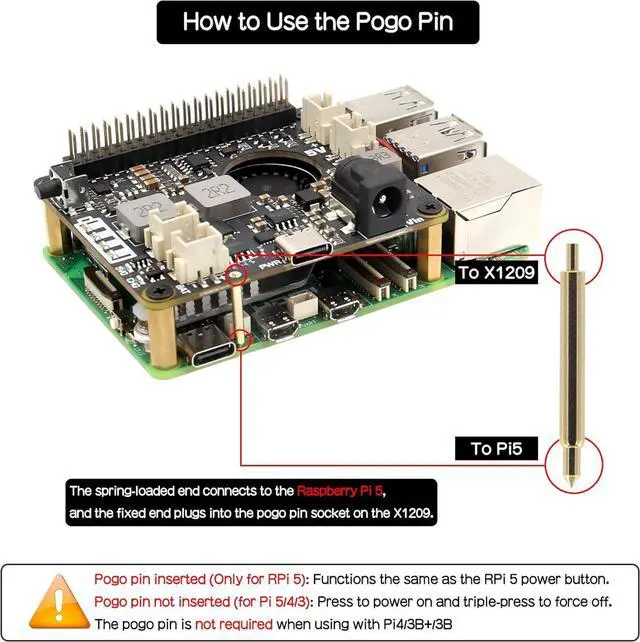

Packing List: 1 x X1209 V1.0 expansion board, 4 x M2.5x13.5mm F/F Spacers, 8 x M2.5x5mm Screws, 1 x Pogo pin(For connecting to the Pi 5 PSW through hole)
Function: X1209 Supports a maximum current output of 5.1V 6000mA, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection, on-board power button to power on/off
How to Power: 1. Power 5Vdc 5A via USB-C port of X1209 OR 2. Power 6-18Vdc via DC jack of X1209 (12Vdc 3A power adapter recommended)
User Manual: Goole Geekworm Wiki search X1209 and refer to user manual for hardware and software guide
Application: Supports attaching other add-on boards to the bottom of the Raspberry Pi, such as X1002, X1005, X1100, X1006, X1007, etc
Active Cooler Compatibility: The H505 and H509 coolers are not compatible with X1207/X1208/X1209 due to height limitations. Please use the official Raspberry Pi Active Cooler for these models.
Packing List: 1 x X1209 V1.0 expansion board, 4 x M2.5x13.5mm F/F Spacers, 8 x M2.5x5mm Screws, 1 x Pogo pin(For connecting to the Pi 5 PSW through hole)
