Geekworm X1202 4-Cell 5V UPS Shiled for Raspberry Pi 5| Max 5.1V 5A Output|Wide 6-18V Input|Auto Power On|Safe Shutdown|Power Loss Detection
- Compatibility: Pi 5 UPS compatible with Raspberry Pi 5 16B / 8GB / 4GB; Model: X1202; Matching Case is X1202-C1

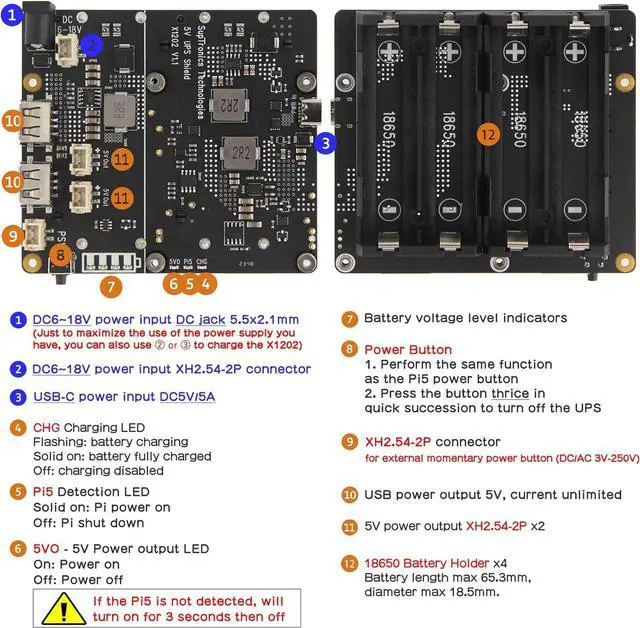

- Function: X1202 provides max 5.1V 5000mA Power Backup, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection, on-board power button to power on/off

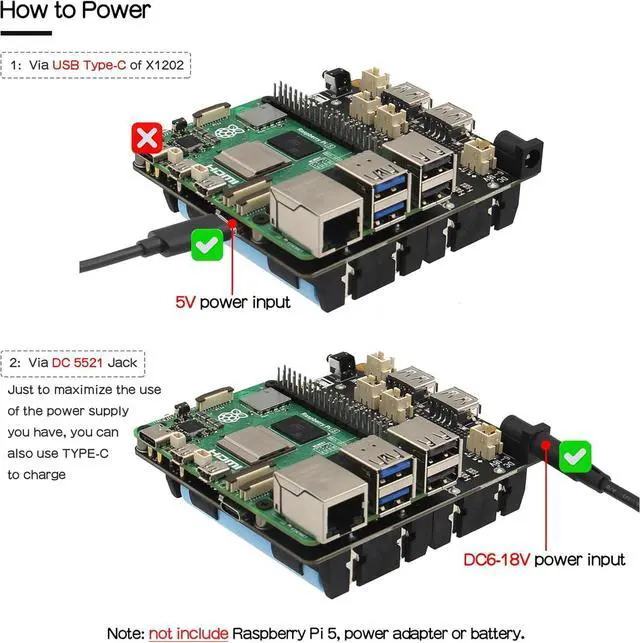

- How to Power: Power via USB-C port of X1202: 5Vdc 5A via USB Type-C OR Power via DC 5521 power jack of X1202: 6-18Vdc , 3A
- User Manual: Goole Geekworm Wiki search X1202 and refer to user manual for hardware and software guide

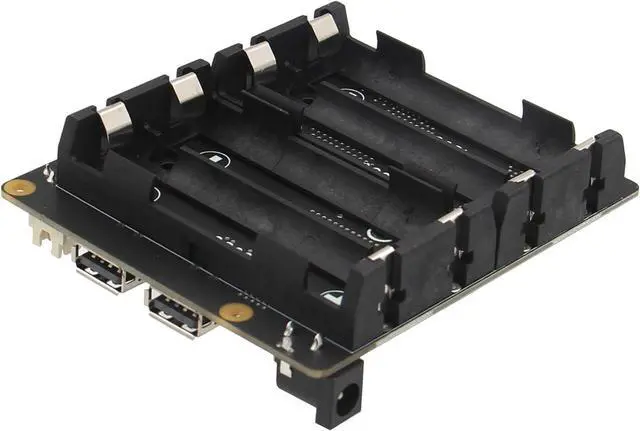

- 4-Cell Battery Supported: Battery length max 65.3mm, diameter max 18.5mm. (NOT include batteries, please prepare yourself)

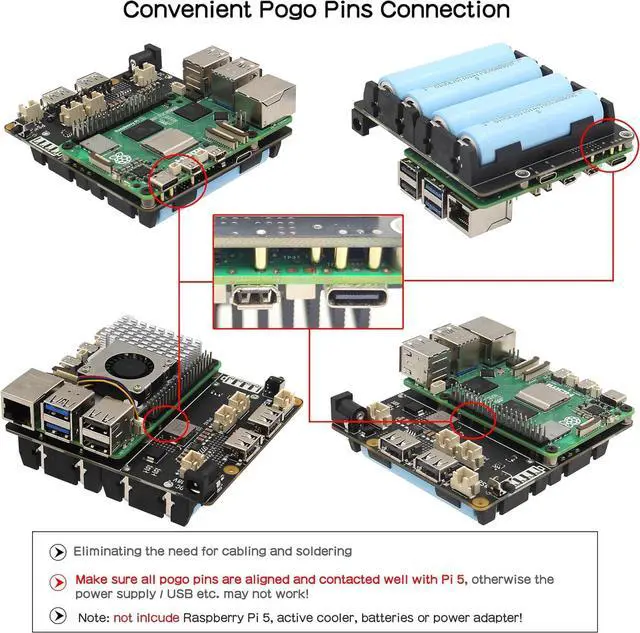

- Versatile Design: X1202 is designed to be attached on bottom, enabling easy stacking with other Raspberry Pi accessory boards for enhanced applications

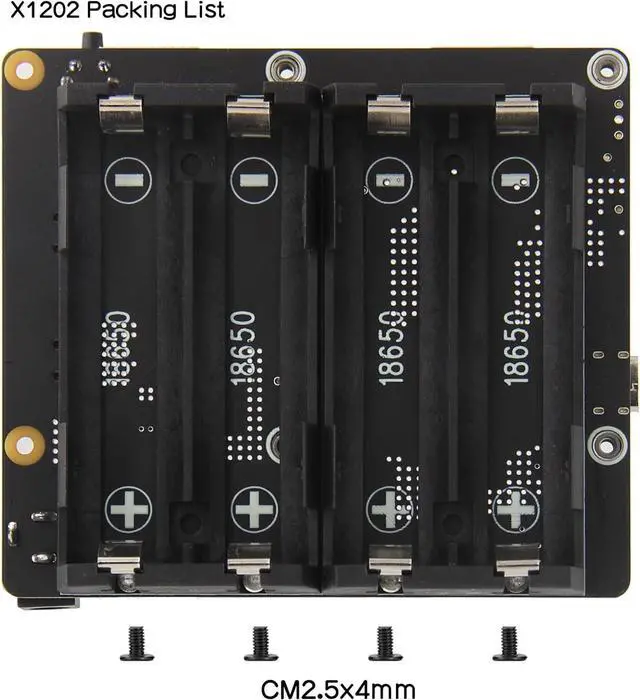

- Packing List: 1 x X1202 5V UPS Shield, 1 x Screws Pack (Not include Raspberry Pi 5, batteries or power adapter)
+
+
Overview
Specs
Reviews
Compatibility: Pi 5 UPS compatible with Raspberry Pi 5 16B / 8GB / 4GB; Model: X1202; Matching Case is X1202-C1
Function: X1202 provides max 5.1V 5000mA Power Backup, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection, on-board power button to power on/off
How to Power: Power via USB-C port of X1202: 5Vdc 5A via USB Type-C OR Power via DC 5521 power jack of X1202: 6-18Vdc , 3A
User Manual: Goole Geekworm Wiki search X1202 and refer to user manual for hardware and software guide
4-Cell Battery Supported: Battery length max 65.3mm, diameter max 18.5mm. (NOT include batteries, please prepare yourself)
Versatile Design: X1202 is designed to be attached on bottom, enabling easy stacking with other Raspberry Pi accessory boards for enhanced applications
Packing List: 1 x X1202 5V UPS Shield, 1 x Screws Pack (Not include Raspberry Pi 5, batteries or power adapter)
Function: X1202 provides max 5.1V 5000mA Power Backup, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection, on-board power button to power on/off
How to Power: Power via USB-C port of X1202: 5Vdc 5A via USB Type-C OR Power via DC 5521 power jack of X1202: 6-18Vdc , 3A
User Manual: Goole Geekworm Wiki search X1202 and refer to user manual for hardware and software guide
4-Cell Battery Supported: Battery length max 65.3mm, diameter max 18.5mm. (NOT include batteries, please prepare yourself)
Versatile Design: X1202 is designed to be attached on bottom, enabling easy stacking with other Raspberry Pi accessory boards for enhanced applications
Packing List: 1 x X1202 5V UPS Shield, 1 x Screws Pack (Not include Raspberry Pi 5, batteries or power adapter)
