$226.99
Ships from Hong Kong.
Sold by Chinathru Trading Co., Limited
Shipped by Chinathru Trading Co., Limited
Meet Your Seller

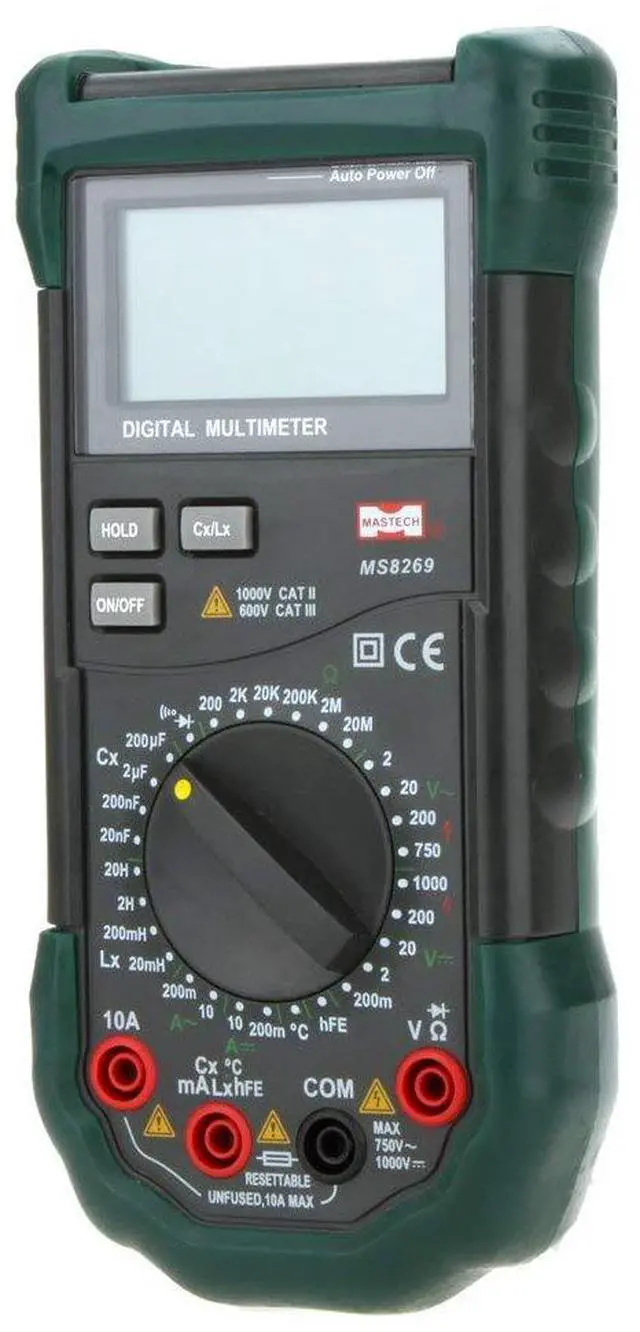

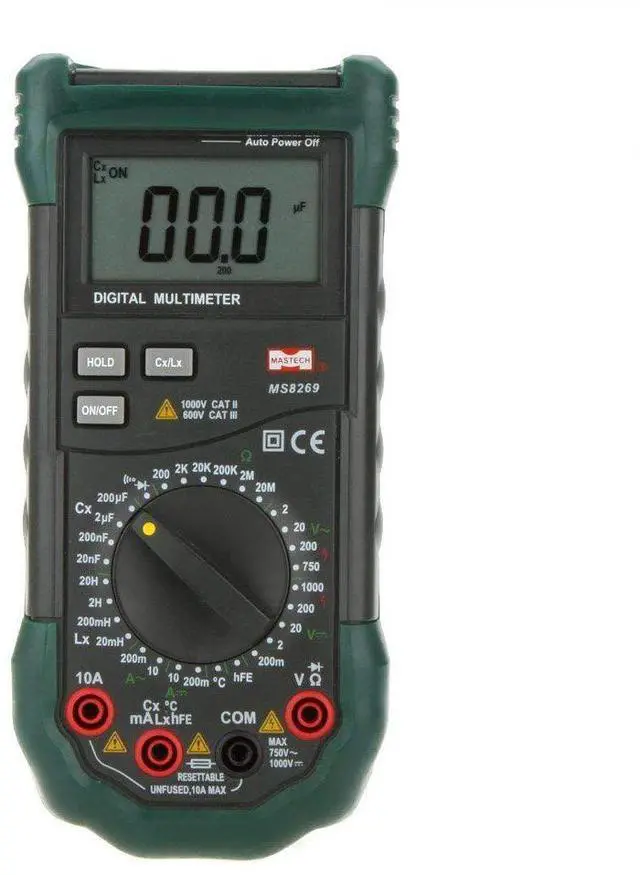

MASTECH MS8269 Handheld Digital Multimeter LCR Meter Resistance Capacitance Inductance & Temperature Tester
- Features: Large 2000 Counts LCD Display Tests AC/DC Voltage and Current, Resistance, Frequency and Capacitance Transistor (hFE) Check, Diode and Continuity Test Inductance measurement up to 20H Type K thermocouple contact temperature measurement Data Hold and Display Back Light Safety Rating up to CAT.II 1000V / CAT.III 600V Continuity test & Diode Test Specification: DC voltage: 200m/2V/20V/200V 0.5%, 1000V 0.8% AC voltage: 2V/20V/200V 0.8%, 750V 1.2% Resistance:
- 00/2k/20k/200k/2M 0.8%, 20M 1.0% DC current: 200mA 1.5%, 10A 2.0% AC current: 200mA 1.8%, 10A 3.0% Capacitance: 20n/200n/2/20F/200F 4.0% Temperature: -20 C ~ 1000 C Inductance: 20mH/200mH/2H/20H 3.0% Transistor hFE: 1 ~ 1000 Specifications: Power supply: 1 * 6F22 (9V) (not included) Dimensions: 195 * 92 * 55mm Package Size: 24 * 17 * 6.5cm / 9.6 * 6.6 * 2.6in Package Weight: 635g / 1.4lb
+
+
Overview
Specs
Reviews
Features: Large 2000 Counts LCD Display Tests AC/DC Voltage and Current, Resistance, Frequency and Capacitance Transistor (hFE) Check, Diode and Continuity Test Inductance measurement up to 20H Type K thermocouple contact temperature measurement Data Hold and Display Back Light Safety Rating up to CAT.II 1000V / CAT.III 600V Continuity test & Diode Test Specification: DC voltage: 200m/2V/20V/200V 0.5%, 1000V 0.8% AC voltage: 2V/20V/200V 0.8%, 750V 1.2% Resistance:
00/2k/20k/200k/2M 0.8%, 20M 1.0% DC current: 200mA 1.5%, 10A 2.0% AC current: 200mA 1.8%, 10A 3.0% Capacitance: 20n/200n/2/20F/200F 4.0% Temperature: -20 C ~ 1000 C Inductance: 20mH/200mH/2H/20H 3.0% Transistor hFE: 1 ~ 1000 Specifications: Power supply: 1 * 6F22 (9V) (not included) Dimensions: 195 * 92 * 55mm Package Size: 24 * 17 * 6.5cm / 9.6 * 6.6 * 2.6in Package Weight: 635g / 1.4lb
00/2k/20k/200k/2M 0.8%, 20M 1.0% DC current: 200mA 1.5%, 10A 2.0% AC current: 200mA 1.8%, 10A 3.0% Capacitance: 20n/200n/2/20F/200F 4.0% Temperature: -20 C ~ 1000 C Inductance: 20mH/200mH/2H/20H 3.0% Transistor hFE: 1 ~ 1000 Specifications: Power supply: 1 * 6F22 (9V) (not included) Dimensions: 195 * 92 * 55mm Package Size: 24 * 17 * 6.5cm / 9.6 * 6.6 * 2.6in Package Weight: 635g / 1.4lb
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 90 days
- This item is covered by Chinathru Trading Co., Limited Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
