Schneider Electric - Easy TeSys DPE IEC Contactor - Non Reversing Contactors for Resistive Load and Motor Control Applications up to 12A/690V AC,5HP at 480V AC,3 Poles (3NO),240V 50/60Hz Coil,DPE12U7

CONVENIENT SOLUTION: An easy solution for OEMs, panel builders, contractors and system integrators who have a need for motor control, resistive load switching, and isolation applications. For use on conveyors, packaging, pumps, compressors, HVAC, refrigeration, furnace applications, and more.

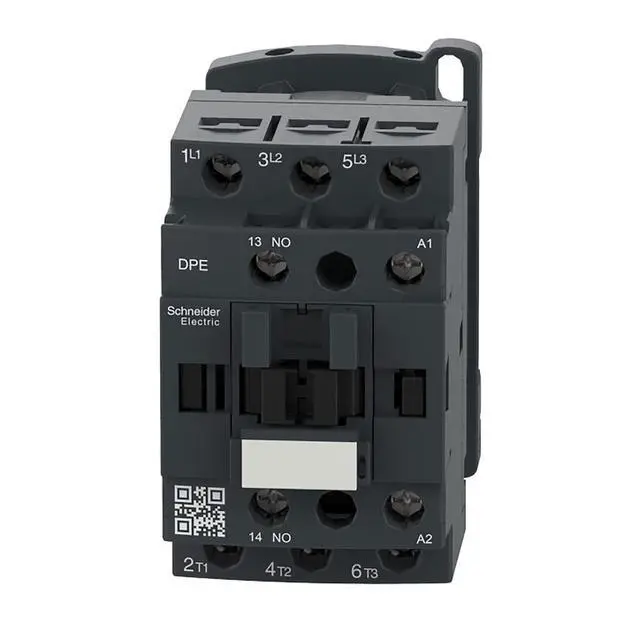

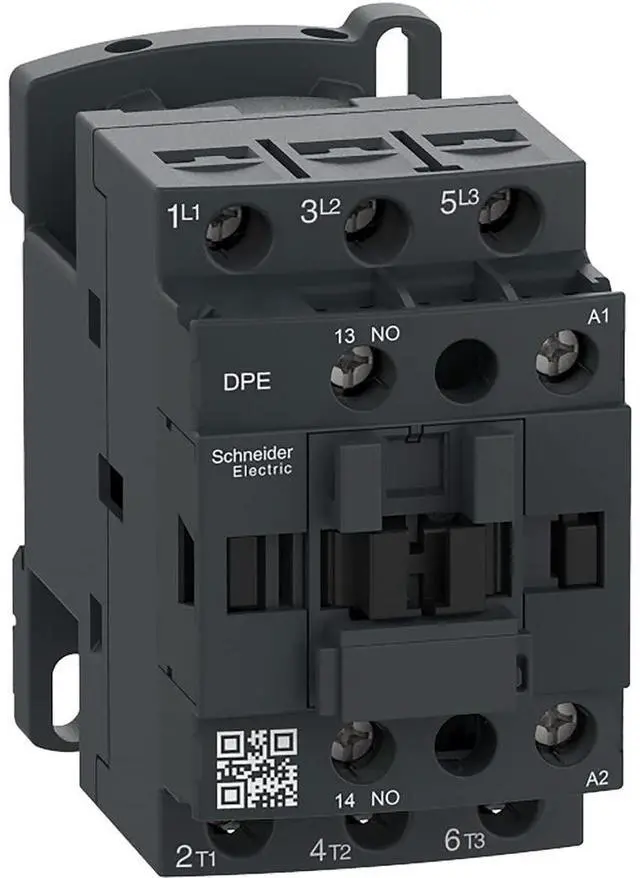

EASY TESYS CONTACTOR: The Easy TeSys DPE IEC contactor has 3 poles (3NO), and is for use in motor control applications up to 12A/690V AC-3 (5 HP@480V). It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), and connection by screw clamp terminals.
PRODUCT OVERVIEW: The Schneider Electric TeSys is an IEC contactor (International Electrotechnical Commission), which is an electrical switch used to control electric motors and other electrical loads. It is designed for non-reversing applications, meaning it can switch the electrical load on and off but does not change the motor's direction.

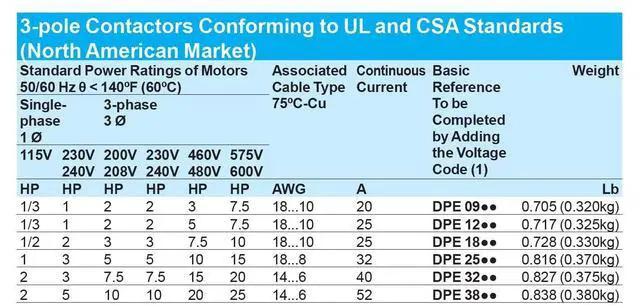

SPECIFICATIONS: Easy TeSys contactors are ideal for applications with power ratings and an operational life of approximately 1 million electrical operations. UL/CSA approved rated current up to 65 amps, 40 HP/600 VAC. They are suitable for the utilization categories specified in standard IEC 6.
ENVIRONMENTAL DATA: Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
