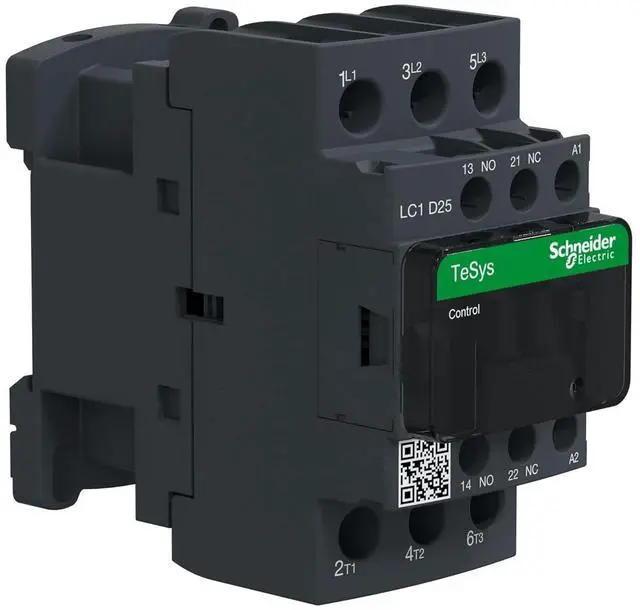

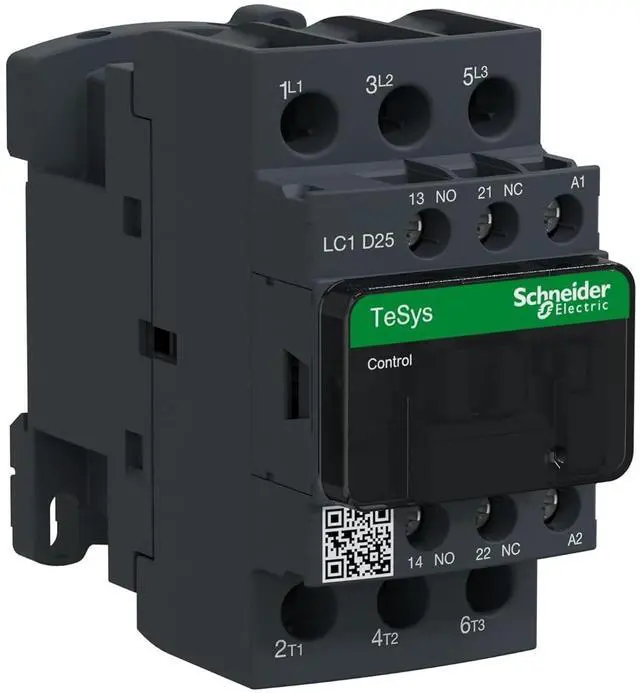

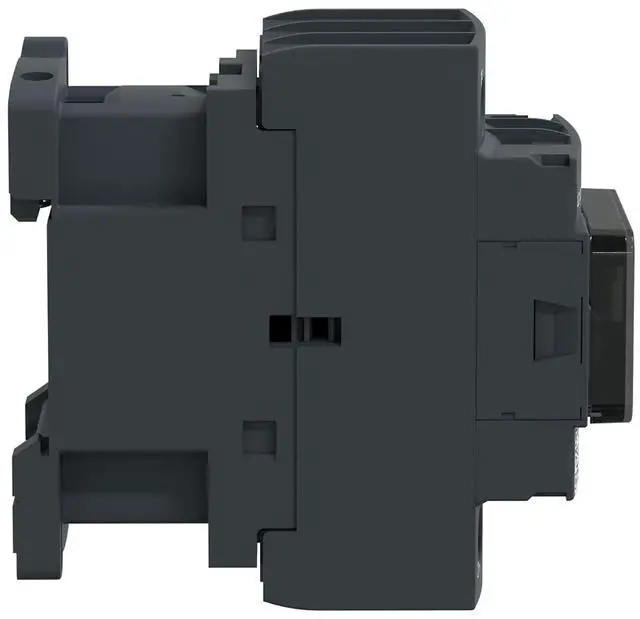

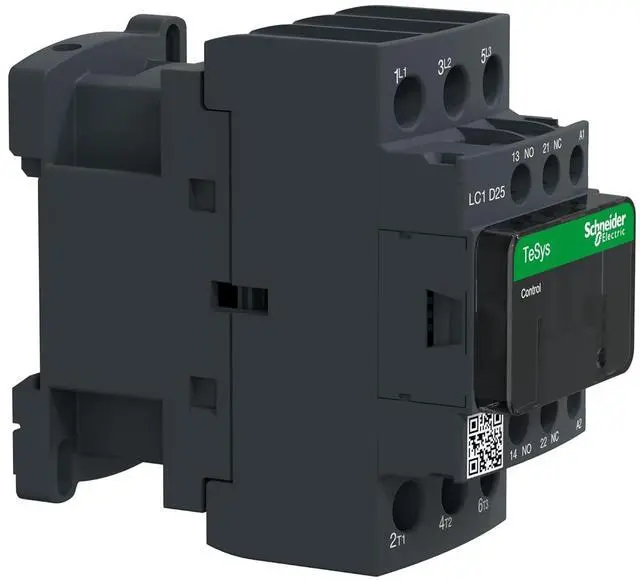

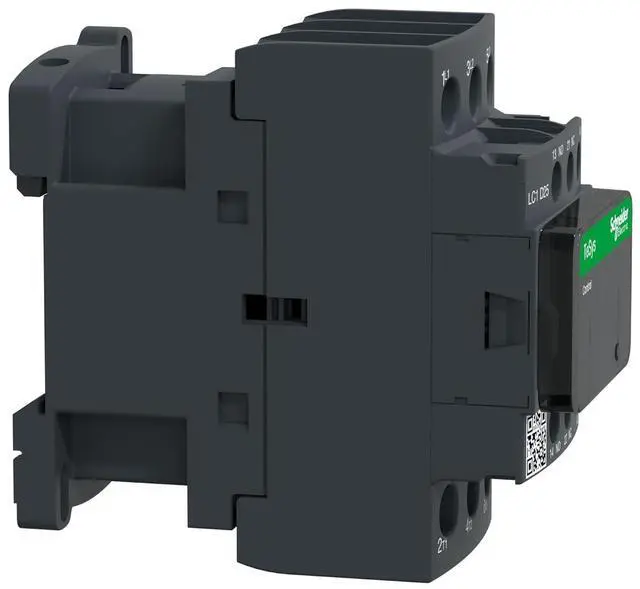

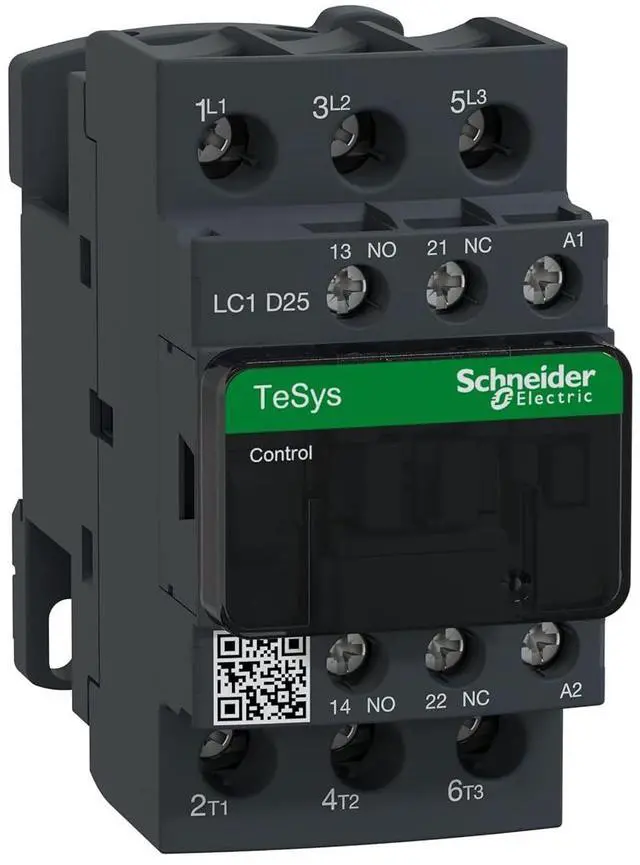

Schneider Electric - IEC TeSys Deca Contactor - LC1 Series, 3-Pole (3 NO), Non-reversing, 25A, AC-3/AC-3e, 15HP at 480VAC, Up to 100kA SCCR, 120VAC 50/60Hz Coil, Open Style, DIN Rail Mountable

PERFECT INTEGRATION: IEC TeSys Deca Contactors have been designed for perfect integration into control systems and to meet the requirements of industrial and HVAC applications. In fact, they can be used to create motor starters for almost any type of application.
IMPROVED MODEL: With a new modern look and feel, the LC1 Series has IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries. These contactors are also easier to install and operate with multi-standard screws, using screw clamp terminals for load and auxiliary connections. They can be mounted on a DIN rail or directly to a panel.
MULTIPLE RATINGS: Contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This specific 25A inductive 3P model is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase.
TECHNICAL SPECIFICATIONS: When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have an SCCR up to 100kA. It is supplied with a 120VAC 50/60 Hz coil and has one normally open and one normally closed auxiliary contact built-in as standard, with the NC contact being mirror certified.
ENVIRONMENTAL DATA: Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
