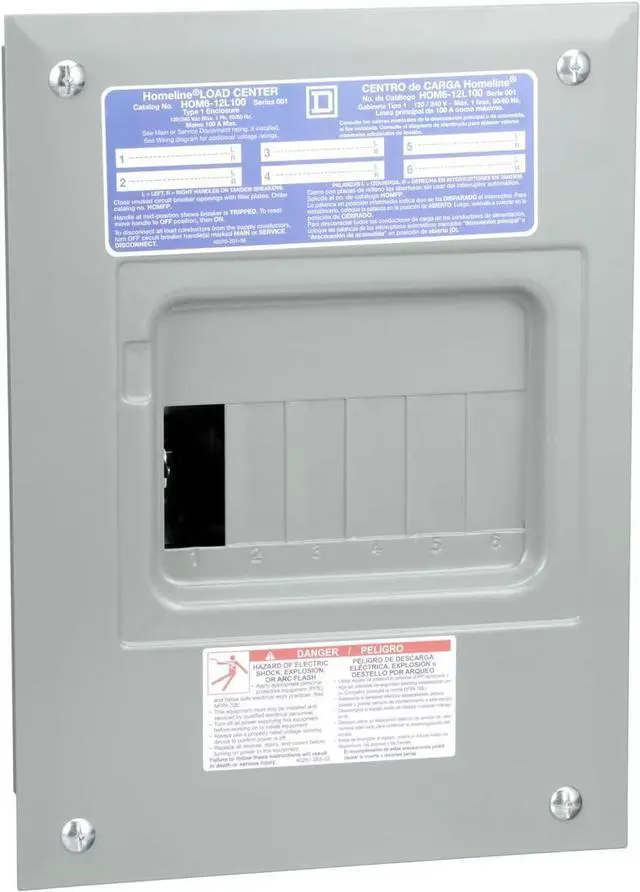

Square D by Schneider Electric Homeline 100 Amp Indoor Main Lug Load Center, Circuit Breaker Box, 6-Space 12-Circuit, 120/240 VAC, UL Listed, Indoor Use Only (HOM612L100FCP)

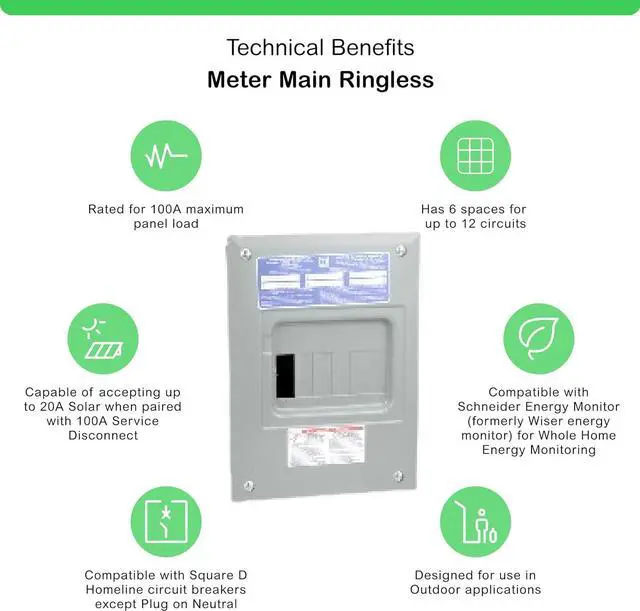

- HIGH-PERFORMANCE ELECTRICAL PANEL: The Square D Homeline 100 Amp Load Center offers reliable circuit protection; It is ideal for residential and commercial applications
- BREAKER DETAILS: For use on 120/240 VAC single phase, 3 wire systems with an isolated ground; This device provides 25 kA of short circuit protection and 80 kA of surge protection per phase
- DURABLE 100 AMP BREAKER BOX: Constructed with a tin-plated aluminum bus bar and welded sheet steel enclosure; Designed for indoor use; Finished with baked enamel gray coating for added durability; Distributed neutral bars keeps wiring tidy
- INSTALLATION AND CONNECTIONS: Breaker box cover for flush mounting; Electrical connections are main lugs that accept a range of 6 AWG to 2/0 AWG copper or 6 AWG to 2/0 AWG aluminum wire

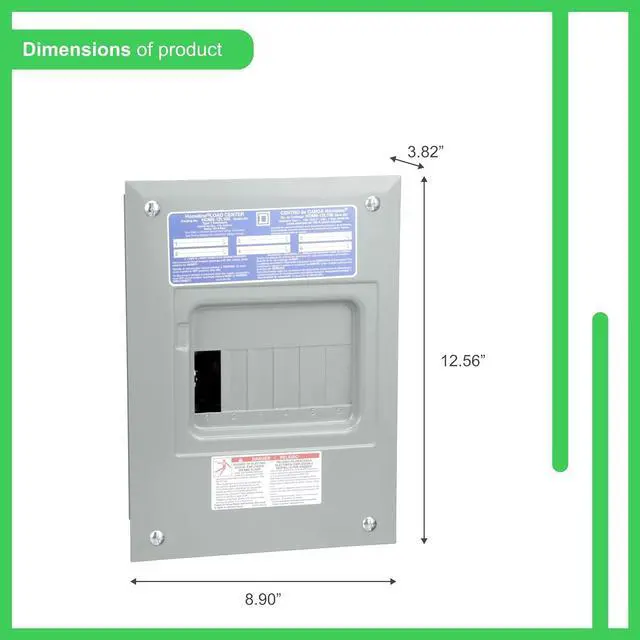

- SPECIFICATIONS: Measures 8.88 in x 3.75 in x 12.57 in; Features 22 kA breaking capacity with 120/240 VAC rating; 6 spaces in a NEMA 1 (Indoor) enclosure; Supports a total of 12 circuits with the use of tandem br
+
+
Overview
Specs
Reviews
The Square D by Schneider Electric Homeline Load Center (HOM612L100FCP) is a high-performance 100 amp breaker box engineered for safe, reliable power distribution in residential environments. With a capacity of 6 circuit spaces and support for up to 12 circuits, this indoor breaker panel offers scalability and versatility for future electrical needs. Its rugged NEMA 1 (Indoor) enclosure houses a reliable tin-plated aluminum bus bar in a welded sheet steel enclosure, ensuring long-lasting performance. accommodates a range of 6 AWG to 2/0 AWG copper or 6 AWG to 2/0 AWG aluminum wire. With 22 kA breaking capacity and 120/240 VAC rating, its UL Listed for peace of mind.
