1pc 12V 90W High-power DC Brushless Water Pump Built-in Drive Large Flow Mute Electronic Circulating Pump

Model Number:EATAD4038
Origin:Mainland China
Type:Washing Machine Parts
item type:Brushless Water Pump

12V 90W high-power DC Brushless Water Pump Built-in Drive Large Flow Mute Electronic Circulating Pump
Features:
Water pump for automotive cooling cycle, high temperature resistance of 120 degrees, built-in drive circuit, the measured water volume is very large, the peak working current of about 7A
Aluminum alloy back cover to take into account the drive heat dissipation
Water pump power must pay attention to the positive and negative polarity, the measured voltage of 9-16V can work
Turn on the power pump need to wait about 2 seconds to start, the first power must be full of water inside, otherwise the load will not detect the lack of water to stop working
Impeller pump can not self-priming, to the water inlet to the impeller internal full of water to water, the pump flow nominal 37L / per minute
Specification:
Current Peak Up To: 7A
Voltage: 9-16V
Power: 90W

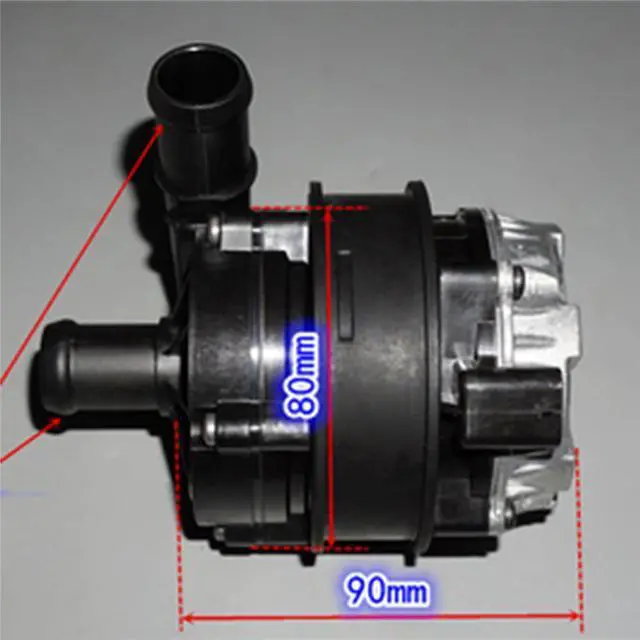

Size: 80mmx90mm
Water Inlet and Outlet Interface Outer Diameter: 22mm, Inner Diameter: 20mm
Quantity: 1 PC
Package:
1x Brushless Water Pump
Note:
The rubber shock-absorbing fixed ring above will be a little white traces, but can be wiped off
