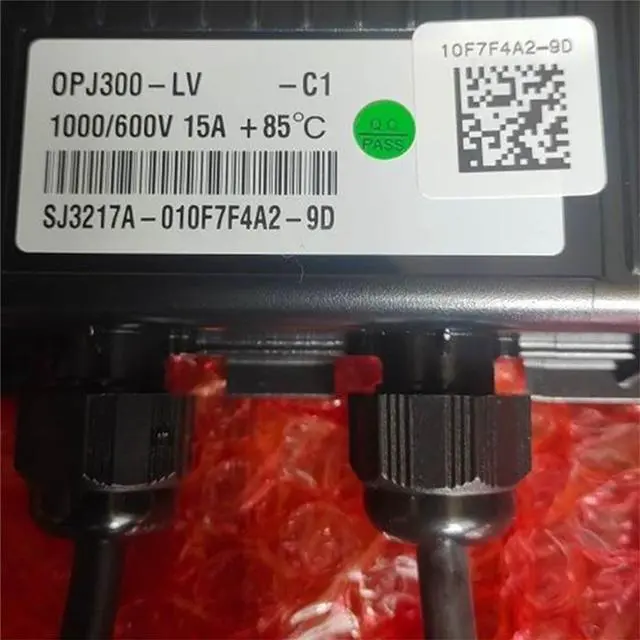

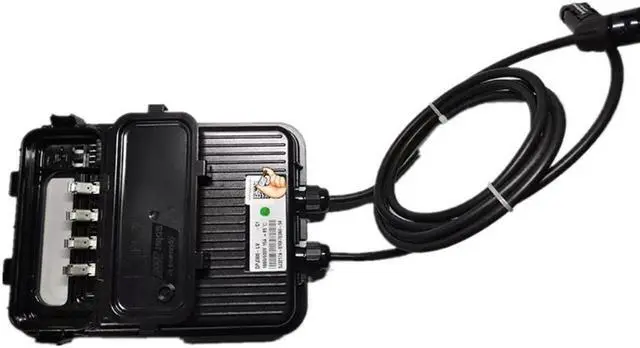

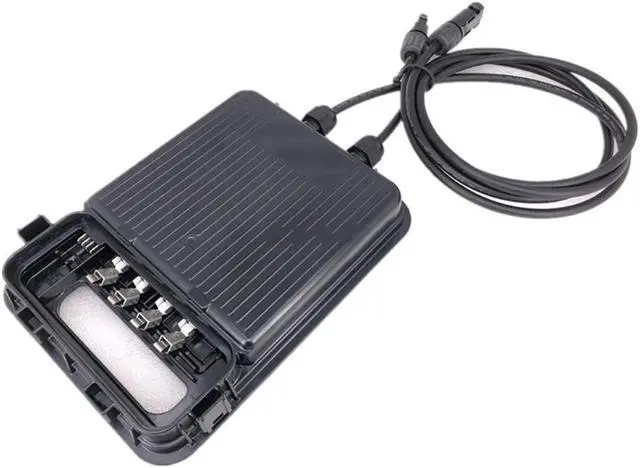

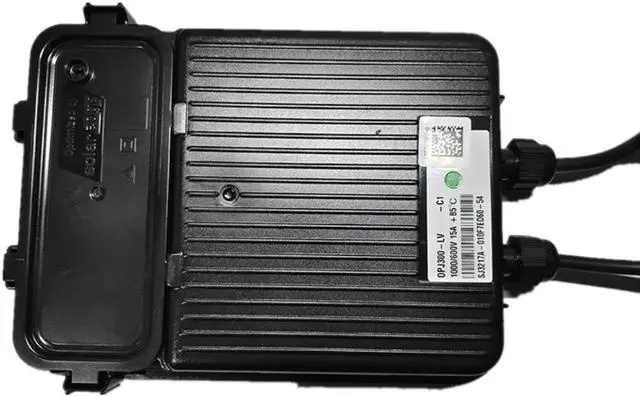

300W MPPT Power Optimizer Embedded OPJ300-LV Module Level Photovoltaic Optimizer For SolarEdge Solar

Model Number:EATAD4056
Origin:Mainland China
Maximum Continuous Input Current:12.5Adc
Protection Level:IP67/NEMA6
Maximum Allowable System Voltage:1000V
Rated Input DC Power:330W
Applicable Model:for SolarEdge Solar
Maximum Power Point Tracking Range:5-55Vdc
Maximum Input Voltage (VOC):55Vdc

300W MPPT Power Optimizer Embedded OPJ300-LV Module Level Photovoltaic Optimizer For SolarEdge
Feature
s:
l
Module-level PV power optimizer that integrates the field-proven SolarEdge power optimizer into an IEC and UL listed junction box
l
Up to 25% increase in power production and outstanding efficiency (99.5%)
l
Elimination of all types of module mismatch issues such as production deviations and localized shadows
l
Automatic module-level voltage disconnection ensures the safety of installers and firefighters
l
Stand-alone optimization technology works with any third-party inverter, requiring no additional hardware or SolarEdge inverters to achieve the benefits
l
Unique bypass connector design for easy power testing and field replacement of modules
Specification:
l
Rated Input DC Power: 330W
l
Maximum Input Voltage (VOC): 55Vdc
l
Maximum Power Point Tracking Range: 5-55Vdc
l
Maximum Continuous Input Current: 12.5Adc
l
Maximum Efficiency: 99.5

l
EMC: FCC Part15 Class B, IEC61000-6-2,IEC61000-6-3
l
Safety: IEC62109-1 (Cla
ss II Safety, TUV - SUD), UL1741 (TUV - Rheinland & CSA)
l
Photovoltaic Junc
tion Box: EN50548 (TUV - SUD), UL3730 (TUV - Rheinland & CSA)
l
Material: UL-94 (S-VA). UV Resistant
l
Maximum Allowable System Voltage: 1000V
l
Si
ze (W x L x H): 208x155x29.5mm
l
Protection Level: IP67/NEMA6
l
Applicable
M
odel
: for SolarEdge Solar
l
Quantity: 1 PC
Package:
l
1
x Power Optimizer
