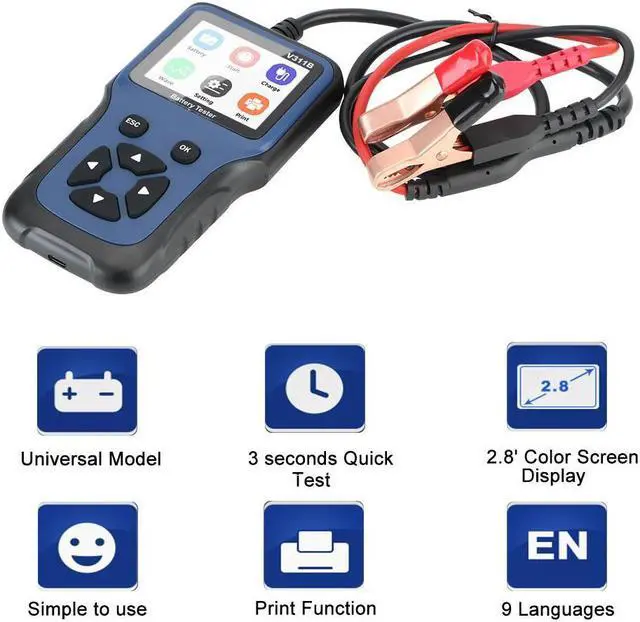

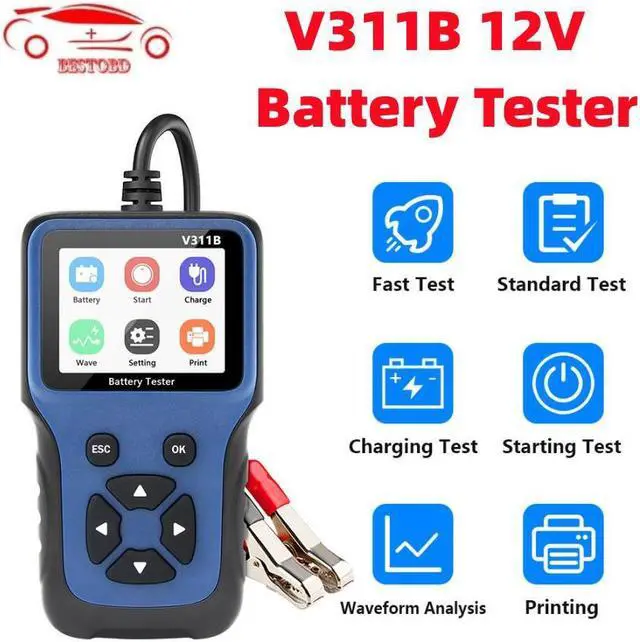

V311B 12V Car Charger Tester Analyzer Car Charging Cricut Load Test Analyzer Tools Automotive Auto OBD Diagnostic Tool

Electronic:No
Material Type:Plastic
Item Weight:0.4kg
Item Height:8cm
Item Width:22.5cm
Item Length:22cm
External Testing Certification:ce
Voltage:12v-24v
Power:W
Model Name:V311B
Software Version:Latest version
Hardware Version:Latest version
Item Type:Testers
Origin:Mainland China
Storage Temperature:-20 to 70 centigrade
Product name:12V tester
Measurement standards:CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, BCI
Working voltage:9-18V
External Power:2V
Display:2.8 inch TFT color screen
Support Language:English,Chinese,Russian,Portuguese,Italian,French,German,Spanishpolish

V311B 12V Car Charger Tester Analyzer Car Charging Cricut Load Test Analyzer Tools Automotive Auto OBD Diagnostic Tool
Description:
This detector, accurate data, quick detection, suitable for a variety of 12.0V batteries, 2.8 inch color display. It is easy to use and has printing function. Nine kinds of voice can be selected. It is widely used.
Features:
Accurate data, suitable for mos kinds of 12.0V detection, such as ordinary , gel .
2.8-inch color display, clear and convenient.
With reverse protections function, safe and convenient.
Print function, you can print screenshots.
Cancel the built-in , no potential safety hazard.
Support 9 Language
:
English, Chinese, Portuguese, Italian, French, German, Spanish, Polish, Russian
Product advantages

1. Support fast and standard test mode selection
2. Support test under starting and charging status, test and display voltage, rated value, measured value, internal resistance value, service life, remaining parameter information
3. Support viewing waveform analysis
4. Support picture saving and printing function
5. Support multiple modes and standard tests, can quickly evaluate the performance of the vehicle , and display the results;
6. Support nine languages English, Chinese, Portuguese, Italian, French, German, Spanish, Polish, Russian
7. Support picture saving and USB printing
8. Test for car 12V , compatible with ordinary lead-acid , AGM flat , AGM spiral , GEL, EFB

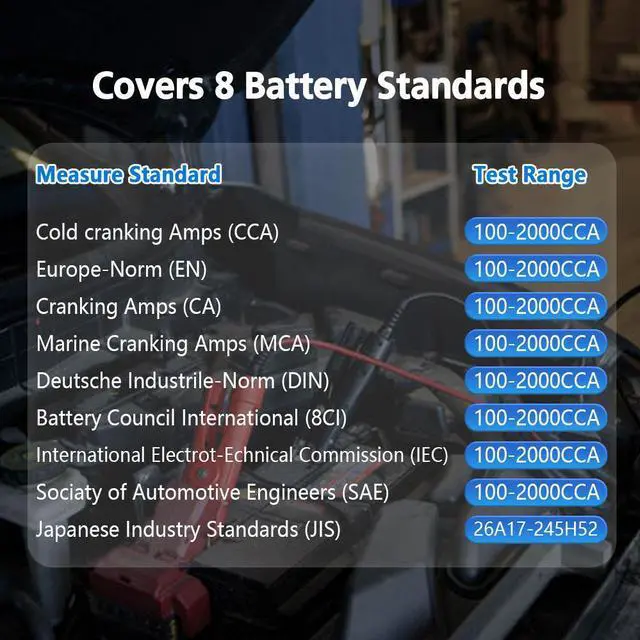

Measuring range
CCA: 100-2000A.
BCI: 100-2000A.
CA: 100-2000A.
MCA: 100-2000A.
JIS: 26A17-24SH52.
DIN: 100-1400A.
IEC: 100-1400A.
EN:100-2000A.
SAE: 100-2000A.
GB: 10-250Ah.
Support Multiple Models
Support 12V car startup lead-acid and 12v system test
Car/SUV/Pick-up truck/Boat/Motorcycle/More...
Product parameter information description:
1. Voltage:
The current voltage value of the measured;
2. Rated value:
The nominal value on the , such as SAECCA (cold start current value), GB? ? Ah (capacity value);
You need to input the value on the label to the tester and select the corresponding test standard;
3. Measured value:
The current value measured and evaluated by the detector, such as CCA,? ? ? Ah;
It is the difference between the nominal value and the measured value;
Generally, the measured value of a will be close to the nominal value. The longer the is used, the worse the aging, and the lower the measured value will be;
4. Internal resistance:
The internal discharge resistance value of the varies with the brand, process, type, current temperature, and duration of use of the ;
The better the performance of the general , the lower the internal resistance value;
5. Life:
The value calculated based on the evaluation of the rated value and the current state of the reflects the degree of aging of the and the percentage of life remaining;
6. Remaining power:
The value calculated according to the current state of the indicates how much power is left in the . A full charge is 100%;
Similar to the number of bars displayed on the phone;
Product Details Display
Removable Connector For easy carrying
Thick WireDurable up to 150cm
Scrollleft Physical Button
Intelligent Clamp
