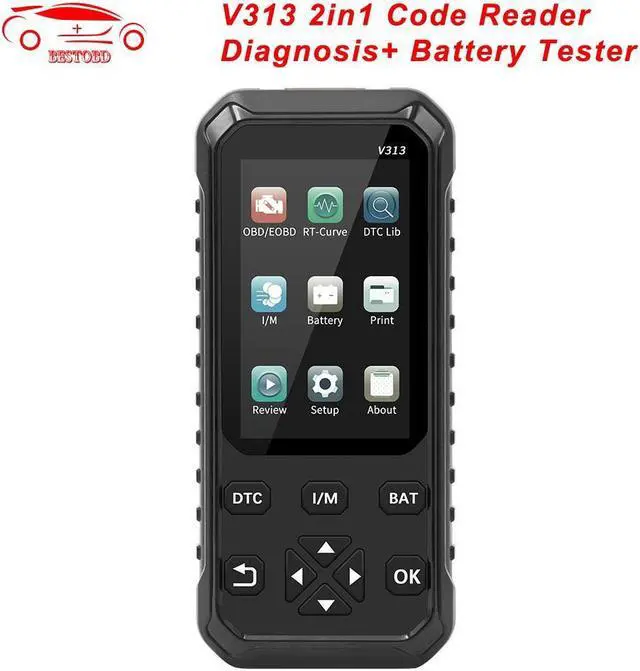

V313 2in1 12V Car Tester OBD OBD2 Car Diagnostic Auto Tool OBD2/EOBD V313 Automotive ODB2 Car Code Reader

Special Features:Other
Software Update:No
Language:Dutch,English,French,German,ITALIAN,Spanish
Software Version:Latest version
Hardware Version:Latest version
Certification:CE
Origin:Mainland China
Item Type:Code Readers & Scan Tools
Item Name:V313 2in1 Scanner
Operating:Easy and fast, no software needed
Special Features 1:OBD2/EOBD
Special Features 2:12V Tester

V313 2in1 12V Car Tester OBD OBD2 Car Diagnostic Auto Tool OBD2/EOBD V313 Automotive ODB2 Car Code Reader
Supported vehicle data
1. Read the error diagnostic code
2. Clear the fault code (clear the error code and turn off the MIL)
3. Engine revolutions per minute (RPM)
4. Calculated load value
5. Coolant temperature
6. Fuel system status
7. Vehicle speed
8. Short-term fuel situation
9. Long-term fuel situation
10. Intake manifold pressure
11. Advance fuel injection time
12. Inlet temperature
13. Air flow speed
14. Absolute position of throttle valve
15. Oxygen detection voltage associated with short-term fuel state
16. Fuel system status
17. Fuel pressure
18. Fuel consumption monitoring, etc.
Note: The number of data items supported by different model years are also different, and the actual support situation shall prevail.

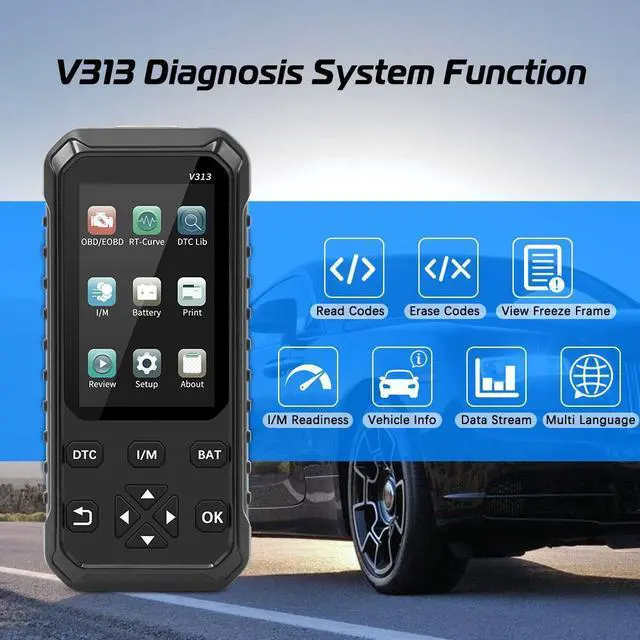

V313 is a trolley barcode reader product, with the following functions:
1. Support OBD II/EOBD nine standard protocols
2. Support OBD functions such as vehicle fault diagnosis and real-time data streaming
3. It has data playback functions such as viewing saved fault code information, data flow and detection
4. With emission testing data
5. The data saved in the code reading card can be printed through the USB serial port
6. Support USB upgrade function

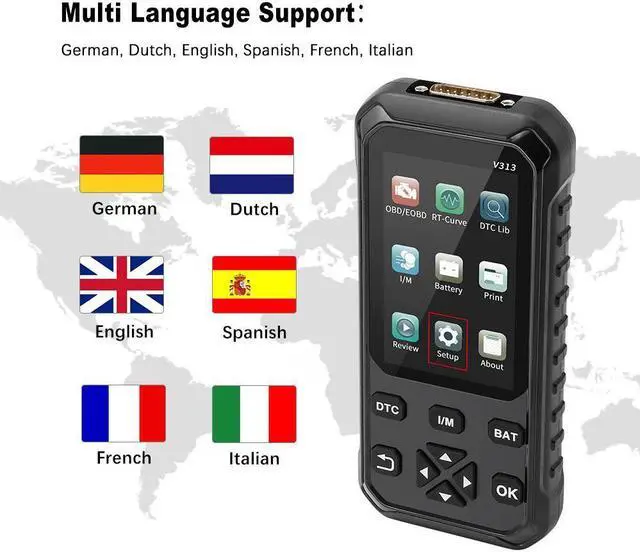

7. Support German, Dutch, English, Spanish, French, Italian

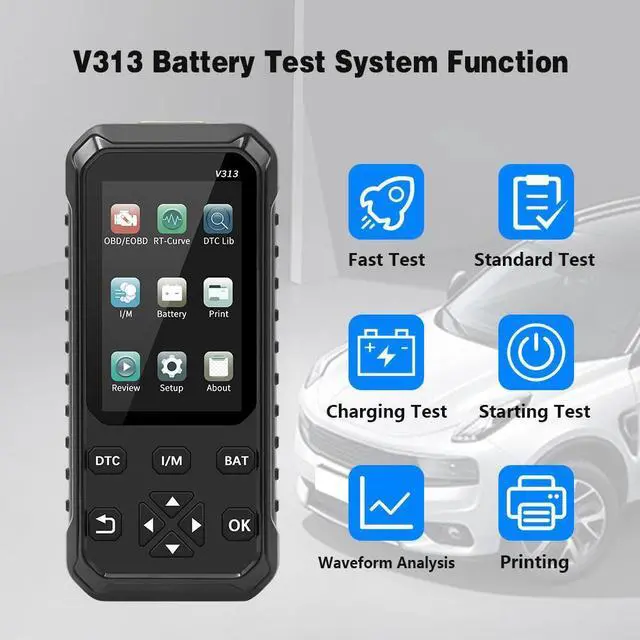

8. Quickly test the cold start current, internal resistance, life and remaining power of the 12V start-up lead-acid to determine whether the needs to be replaced: real-time voltage detection, impedance detection, and how much power is left after a period of full charge (SOC ) charging current value (SOH), cold start current detection (CCA)
Supported protocol
1. SAE J1850 PWM (41.6 Kbaud)
2.SAE J1850 VPW (10.4 Kbaud)
3.ISO 9141-2 (5 baud init, 10.4 Kbaud)
4.ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO 14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO 15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO 15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO 15765-4 CAN (11bit ID, 2500 Kbaud)
9.ISO 15765-4 CAN (29bit ID, 250 Kbaud)
technical parameter
Main control chip: STM32F103VET6
Working voltage: DC 12V
Working current: 98mA
Operating environment: -2070
Storage temperature: -2080
Dimensions: 181.5*81*29mm
Product weight: 168g
